Vetec Running Line Tensiometer med 4-20 mA utgang, slitesterkt rustfritt stål, nøyaktig lastindikering for kraner og taljer.
Vetec Running Line Tensiometer / Kraftsensor med 4-20 mA utgang, slitesterkt rustfritt stål, nøyaktig lastindikering for kraner og taljer.

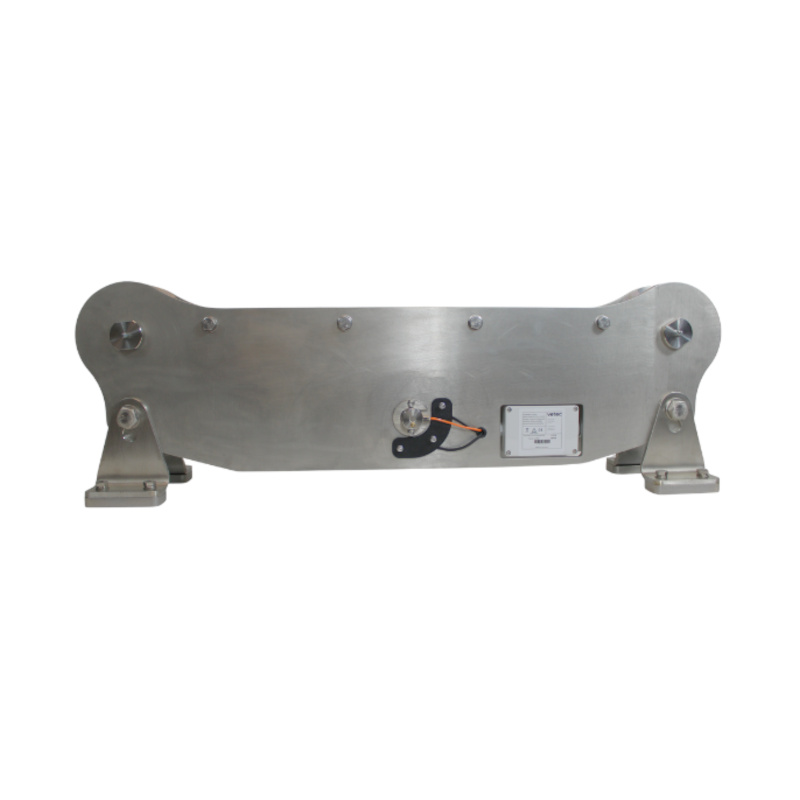

Vetec - Running Line Tensiometer / Kraftsensor - Strømutgang 4-20 mA - Bilde 3

Vetec – Running Line Tensiometer / Kraftsensor – Strømutgang 4-20 mA

Prisområde: €6.405,00 til €10.349,00 Ekskl. mva

MEMIDOS Betalingsbeskyttelse

Delivery Terms: DDU
Produktet vil bli fraktet om 1-2 virkedager
  Still et spørsmål
Company
Nordtech-Vetec A/S
Danmark
Produktnummer: RLT0000-I Kategori:

Forbrukersalg



garanti

12

Del dette produktet med vennene dine:

Beskrivelse

Vetec – Running Line Tensiometer / Kraftsensor – Strømutgang 4-20 mA

Running Line Tensiometer fra Vetec er en profesjonell enhet som er utviklet spesielt for bruk i kraner og taljer med bevegelige vaiere. Dette produktet er konstruert av slitesterkt rustfritt stål og er ideelt for fagfolk som arbeider i korrosive miljøer, noe som sikrer lang levetid og pålitelighet under krevende forhold.

Dette avanserte systemet for lastindikering og -begrensning har en imponerende nøyaktighet på opptil 1 %, noe som gir presise målinger som er avgjørende for sikker drift. Den kraftige kulelagerkonstruksjonen og den herdede rustfrie laststiften øker holdbarheten ytterligere, mens strømutgangen på 4-20 mA muliggjør sømløs integrering med eksisterende systemer. Tensiometeret fra Vetec er utformet i samsvar med bransjens sikkerhetsstandarder, og sørger for at løfteoperasjonene dine forblir trygge og effektive.

Running Line Tensiometer fra Vetec er rettet mot fagfolk i bygg- og industrisektoren, og er enkelt å bruke. Det er bare å installere det i linje med de bevegelige wirene, og overvåke lastindikasjonene for å opprettholde optimal sikkerhet og ytelse. Denne enheten er et uunnværlig verktøy for dem som krever nøyaktighet og pålitelighet i løfteoperasjonene sine.

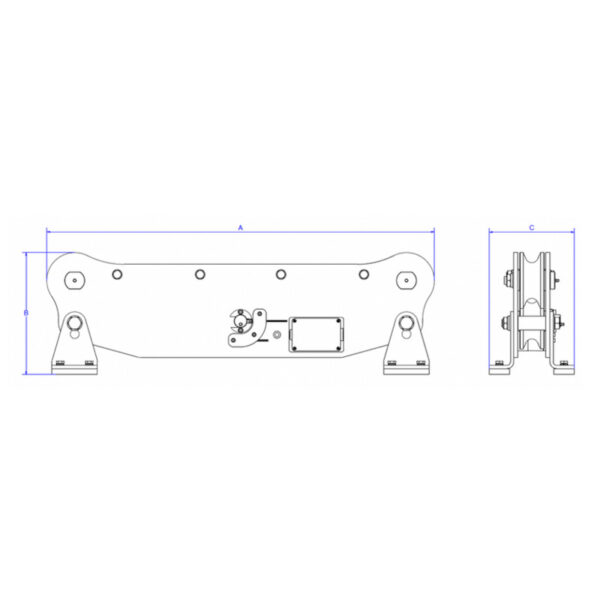

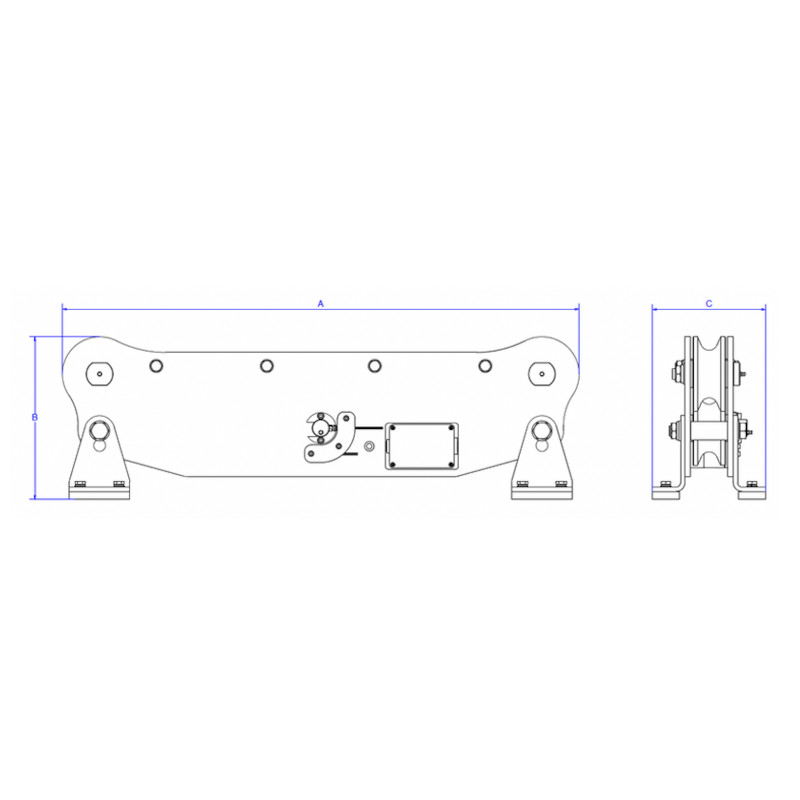

Vare nr:Tråddiameter (mm)Krankapasitet (tonn)A (mm)B (mm)C (mm)Vekt (kg.)
RLT1-1412-14≥ 2 ≤ 1571422718224.2
RLT1-1615-16≥ 2 ≤ 1571422718223.9
RLT1-1917-19≥ 2 ≤ 1571422718223.3
RLT2-2220-22≥ 3 ≤ 2580328821047.5
RLT2-2523-25≥ 3 ≤ 2580328821046.8
RLT2-2826-28≥ 3 ≤ 2580328821046.1
RLT3-3230-32≥ 7 ≤ 6095830021053.3
RLT3-3533-35≥ 7 ≤ 6095830021052.6
RLT3-3836-38≥ 7 ≤ 6095830021051.8
RLT4-4442-44≥ 10 ≤ 90102633421062.2

Ytterligere informasjon

  • Kombinert system for lastindikering og lastbegrensning
  • Nøyaktighet ned til 1 %.
  • Kraftig kulelagerkonstruksjon
  • Herdet laststift i rustfritt stål
  • Utbetalingsteller inkludert

Standarder



Spesifikasjon

Shipping Weight (kg) I/A
Shipping Dimensions (mm) I/A
Merke

Vetec
Størrelse

12-14 mm, 15-16 mm, 17-19 mm, 20-22 mm, 23-25 mm, 26-28 mm, 30-32 mm, 33-35 mm, 36-38 mm, 42-44 mm
Kapasitet

1-90T
Utgangssignal

4-20mA
Nøyaktighet

± 1 % FS
IP klasse

IP67
Relativ luftfuktighet

>98%
Driftstemperatur

-20 °C til 60 °C. Under 0 °C anbefales det å bruke en varmeenhet.

Forbrukersalg



garanti

12

Standarder
