JDiag EV001 isoleringsmodstandstester til EV/HEV, batteridiagnostik, isolering og spændingsmåling
Højpræcisions EV-isoleringsmodstandstester med robust konstruktion, 10 GΩ rækkevidde, USB-C genopladeligt batteri
Professionel højspændings EV-isoleringstester til modstand, spænding og batteriets sundhedskontrol under feltarbejde
Robust ABS-hus til JDiag EV001 isoleringsmodstandstester.

JDiag • Isoleringsmodstandstester EV001

€269,00 Ekskl. moms

MEMIDOS Betalingsbeskyttelse
Sælger:  CANWAYTECH
<span class="sku_wrapper">Kina</span> Kina
Leveringsbetingelser: DDP
Varen afsendes inden for 3-5 hverdage
  Stil et spørgsmål
Varenummer (SKU): CW2026082802D Kategori:

Forbruger salg



Garanti

12

Del dette produkt med dine venner:

Beskrivelse

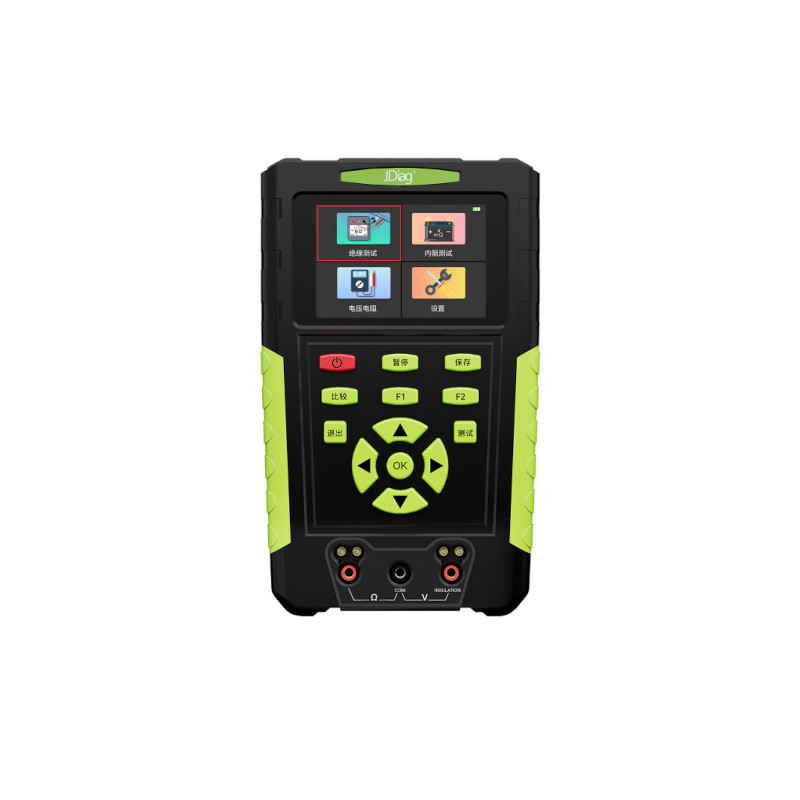

JDiag • Isoleringsmodstandstester EV0011

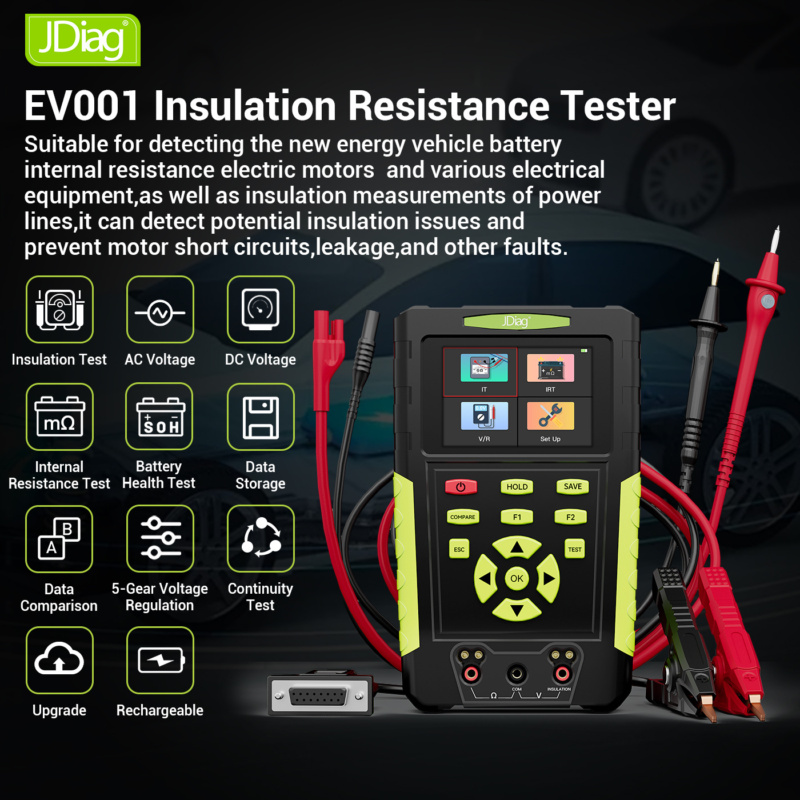

JDiag EV001 isoleringsmodstandstesteren er et professionelt diagnostisk værktøj designet til højvolts elektriske og hybride køretøjer. Den har et robust ABS-hus, 3,5-tommer TFF farvedisplay og indbygget genopladeligt 3,7 V / 4000 mAh batteri med USB-C (5 V / 2 A) strøm. Den måler isoleringsmodstand op til 10 GΩ og understøtter fem valgbare testspændinger (50, 100, 250, 500, 1000 V), intern modstand i batteripakker, AC/DC-spændingsmåling, batterihelbredstests samt datalagring og sammenligning. Ideel til EV/HEV-vedligeholdelsesprofessionelle, feltservice, værksteder, der overvåger isoleringens aldring, lækager eller kortslutninger.

Væsentlige fordele

  • Bredt isolationsmodstandsområde (0,01 MΩ til 10 GΩ), der dækker de fleste højvoltssystemer til elbiler

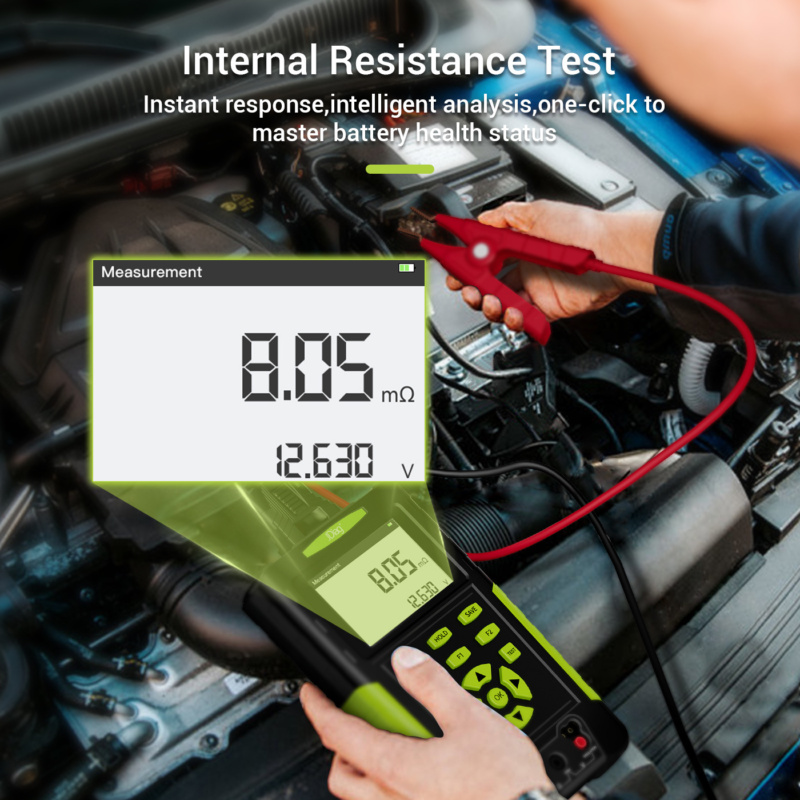

  • Måling af batteriets interne modstand fra 0,1 mΩ til 199,99 Ω til vurdering af pakkens sundhed

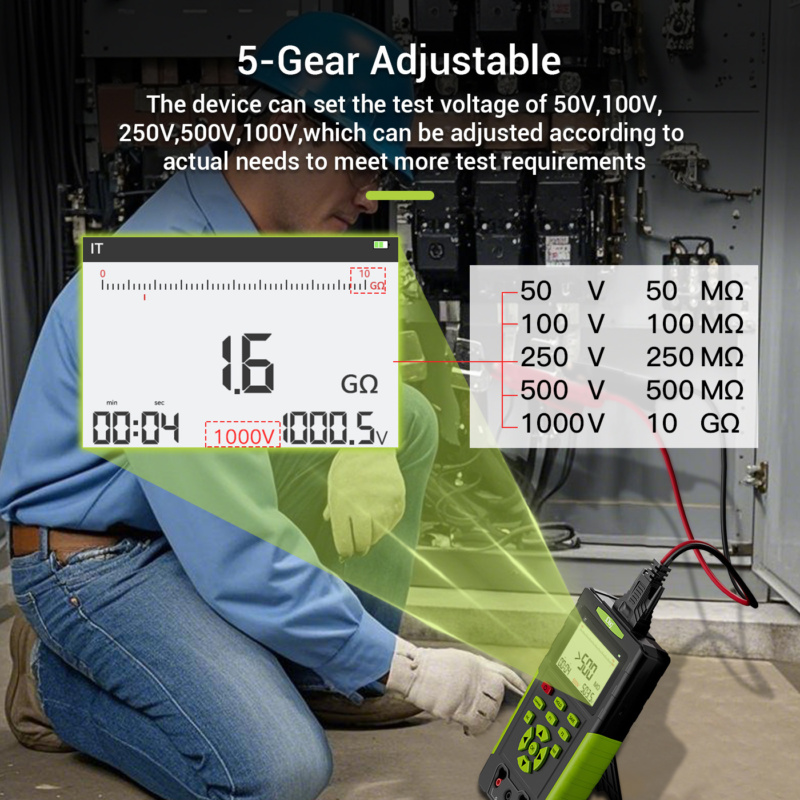

  • Flere valgbare testspændinger for fleksibilitet på tværs af komponenter og isoleringsniveauer

    • AC-

  • og DC-spændingsmåling op til 1000 V (DC) / 750 V (AC) til sikkerheds- og fortestkontrol
  • Understøtter batteridiagnostikstandarder (CCA, JIS, GB, SAE, DIN, IEC, EN, BCI, andre) for global kompatibilitet

Understøttede protokoller

  • CCA
  • JIS
  • GB
  • SAE
  • MCA
  • CA
  • DIN
  • IEC
  • EN
  • BCI

Understøttede funktioner

Afhængigt af køretøjets kompatibilitet understøttes følgende funktioner:

  • Isoleringsmodstandstest
  • Måling af intern modstand i batterier
  • Måling af vekselstrømsspænding
  • DC-spændingsmåling
  • Batteriets sundhedsindikatorer (CCA, Ah)
  • Modstandsmåling (generelle kredsløb)
  • Datalagring og sammenligning mellem tests

Inkluderede genstande

  • 1 × isoleringsmodstandstester EV001
  • 1 × USB-C opladningskabel
  • 1 × sæt prøveledninger med alligatorklips
  • 1 × beskyttende bæretaske

Standarder



Specifikation

Transportvægt (kg) 1 kg
Transportmål (mm) 182 × 250 × 82 mm
Mærke

Color

Country of Origin

CN
Tariff number (HS code)

9030332000
AC-måleområde

1-750V
CCA-måleområde

20-2000CCA
AH-måleområde

10-300AH
DC-måleområde

1-1000V
Modstandsmåleområde

20, 00Ω-20, 00kΩ
Måleområde for intern modstand

0, 1mΩ-199, 99Ω
Måleområde for isoleringsmodstand

0, 01MΩ-10GΩ

Forbruger salg



Garanti

12
