OBDSTAR C4-09 MB91F526 adapterkit til FLASH, DFLASH og IMMO BCM-programmering med MP001-programmør
Premium adaptersæt med højkvalitets printkort og præcisionsloddekabler til pålidelig FLASH-, DFLASH- og IMMO-operationer.
Adapter til MP001 til at læse/skrive FLASH og DFLASH, dekryptere IMMO-data på MB91F526 BCM'er med bench-mode kabler
OBDSTAR C4-09 adapterkit med PCB-adapterkort og loddekabler til bordprogrammering

OBDSTAR • C4-09 (MB91F526) adapterkit

€179,00 Ekskl. moms

MEMIDOS Betalingsbeskyttelse
Sælger:  CANWAYTECH
<span class="sku_wrapper">Kina</span> Kina
Leveringsbetingelser: DDP
Varen afsendes inden for 3-5 hverdage
  Stil et spørgsmål
Varenummer (SKU): CW2026082412D Kategori:

Forbruger salg



Garanti

12

Del dette produkt med dine venner:

Beskrivelse

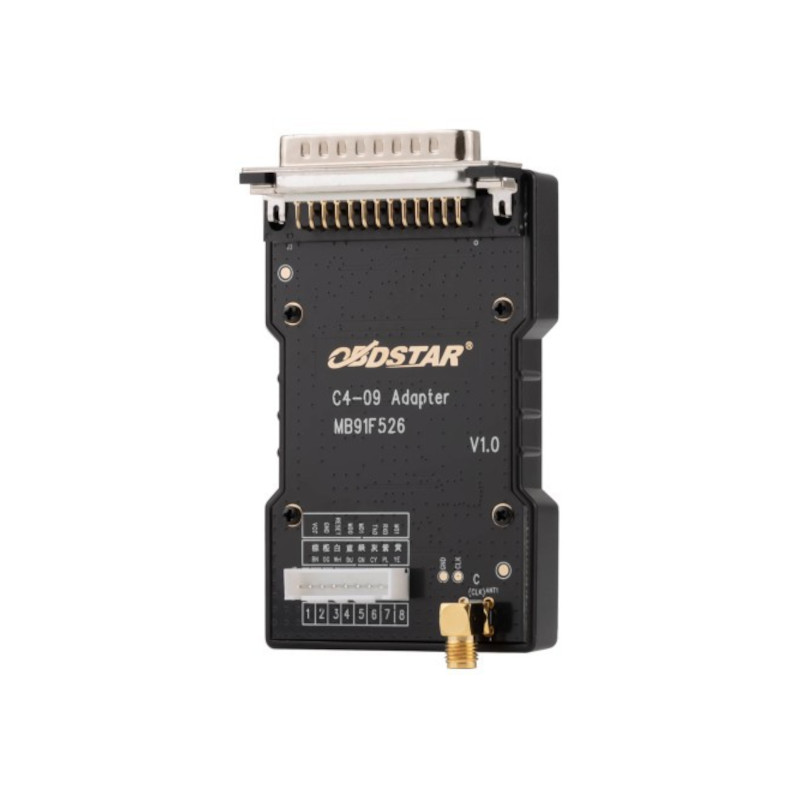

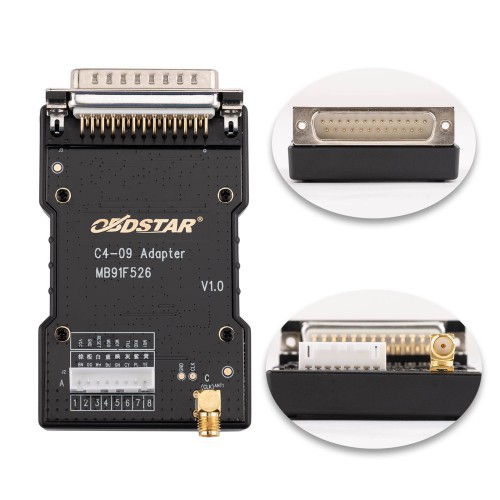

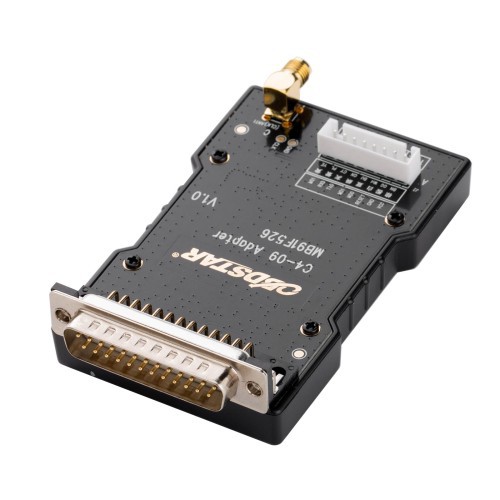

OBDSTAR • C4-09 (MB91F526) adapterkit

OBDSTAR C4-09 (MB91F526) adaptersættet er et tilbehør beregnet til professionelle, der bruger OBDSTARs MP001 multifunktionelle programmør sammen med et KeyMaster G3 eller DC706 hovedværktøj. Det muliggør læsning og skrivning af FLASH- og DFLASH-hukommelse samt immobilizer (IMMO) datadekryptering på Magneti Marelli MB91F526 body control modules (BCMs) og FLASH-only adgang til Denso MB91F526 BDMC, der bruges i Mazda 3-køretøjer. Leveres med adapterkort og loddekabler til arbejde med laboratoriemoduler i laboratorietilstand. Ideel for bilelektronikspecialister, der udfører BCM-reparationer, IMMO- eller Flash-tuningopgaver.

Væsentlige fordele

  • Fuld FLASH- og DFLASH-læse/skrive-funktionalitet på Magneti Marelli MB91F526 BCM-moduler til Alfa Romeo, Ferrari, Fiat og Jeep-køretøjer.
  • Immobilizer datadekryptering understøtter Magneti Marelli BCM’er, nyttigt til nøgleprogrammering og IMMO-operationer.
  • FLASH læse-/skriveadgang for Denso MB91F526 BDMC i Mazda 3 (ingen immobilizer-dekryptering på disse moduler).
  • Inkluderer W004 og W006 loddekabler til sikker forbindelse til modulets PCB for nøjagtig dataudveksling.
  • Skal bruges sammen med MP001 multifunktionel programmør og kompatible værtværktøjer (KeyMaster G3 eller DC706).

Understøttede protokoller

  • FLASH-hukommelse læse/skrive
  • DFLASH-hukommelse læse/skrive
  • Immobilizer datadekryptering (kun Magneti Marelli BCM)

Understøttede funktioner

Afhængigt af køretøjets kompatibilitet understøttes følgende funktioner:

  • Læs og skriv FLASH-hukommelse (Magneti Marelli MB91F526 og Denso BDMC på Mazda 3).
  • Læs og skriv DFLASH-hukommelse (kun Magneti Marelli MB91F526).
  • Dekrypteringsimmobiliseringsdata (Magneti Marelli MB91F526 BCM-moduler).
  • BCM-modul bench-mode programmering.

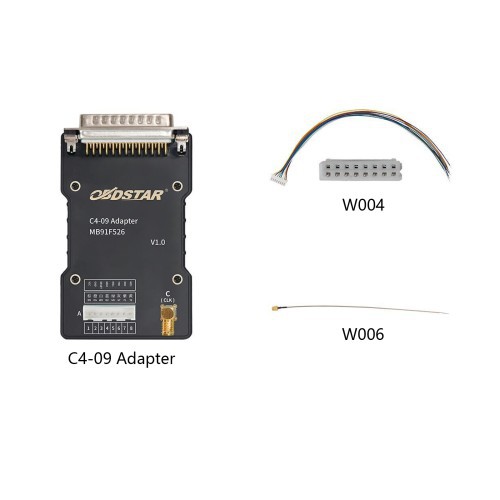

Inkluderede genstande

  • 1 × C4-09 adapterkort
  • 1 × W004 loddekabel
  • 1 × W006 loddekabel

Standarder



Specifikation

Transportvægt (kg) 0,04 kg
Transportmål (mm) 150 × 150 × 40 mm
Mærke

Color

Country of Origin

CN
Tariff number (HS code)

9030900090
Arbejdstemperatur

0-50°C
Forsyningsspænding

12V

Forbruger salg



Garanti

12
