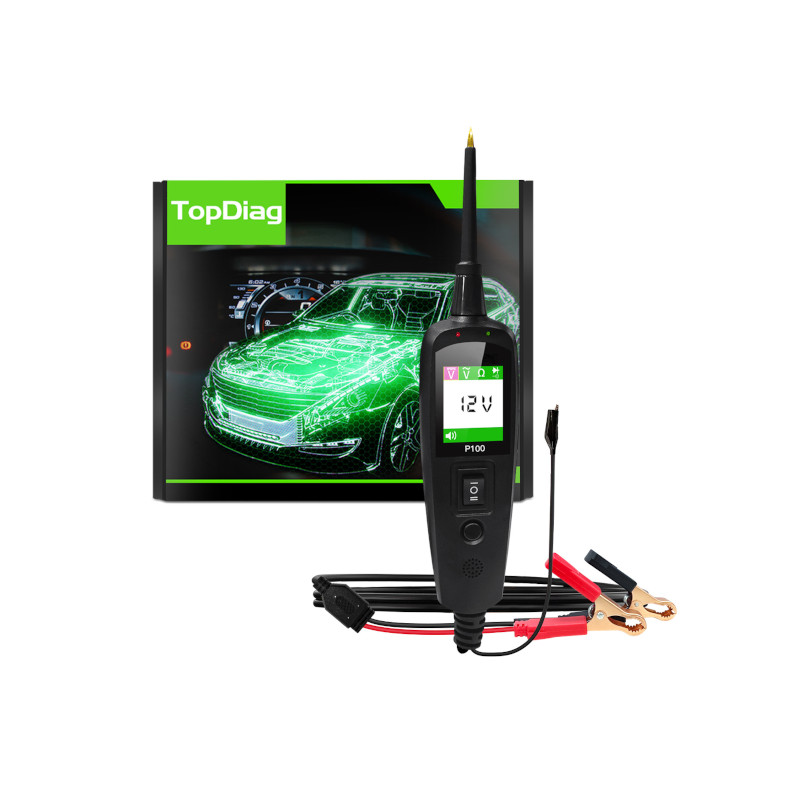

TopDiag P100 bilkredsløbstester til 12V/24V spændings-, modstands- og kontinuitetstest i køretøjer

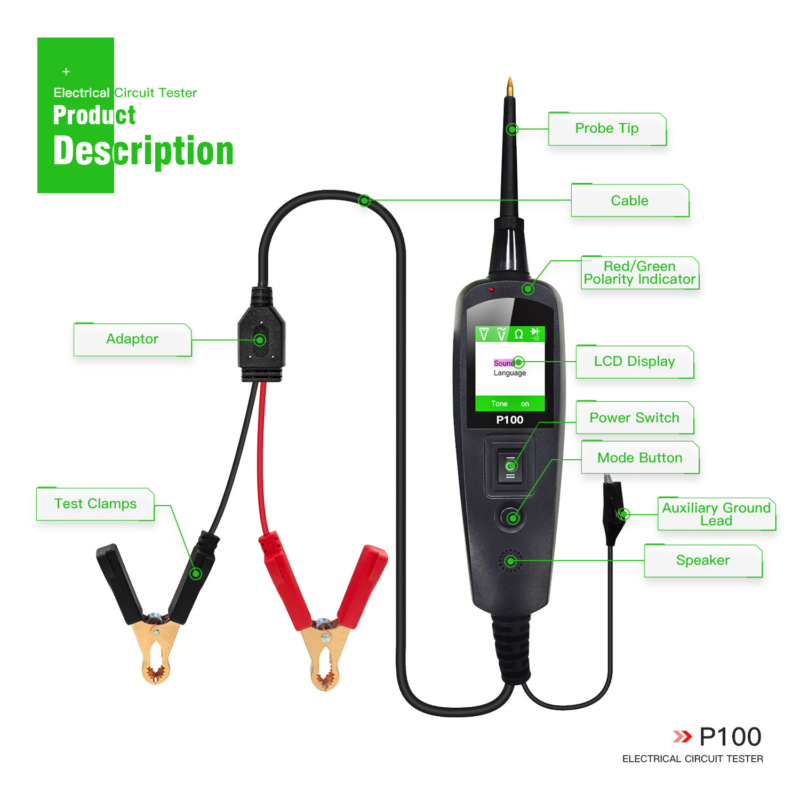

TopDiag P100 kredsløbstester med robust ABS-hus, TFT-farvedisplay, præcis spændings- og kontinuitetsdiagnostik.
Professionel diagnostisk probe til 12 V og 24 V systemer: tester spænding, modstand, kontinuitet, polaritet med sikkerhed.

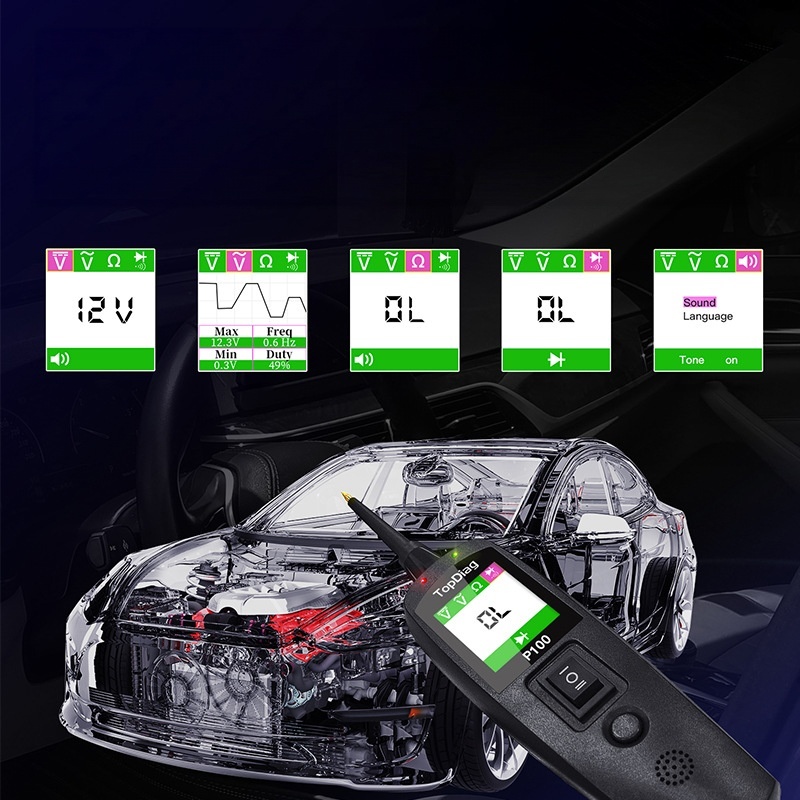

TopDiag P100 bilkredsløbstester i robust ABS-plast til køretøjsdiagnostik

TopDiag • Kredsløbssystemtester til biler P100

€69,99 Ekskl. moms

MEMIDOS Betalingsbeskyttelse
Sælger:  CANWAYTECH
<span class="sku_wrapper">Kina</span> Kina
Leveringsbetingelser: DDP
Varen afsendes inden for 3-5 hverdage
  Stil et spørgsmål
Varenummer (SKU): CW2026082705D Kategori:

Forbruger salg



Garanti

12

Del dette produkt med dine venner:

Beskrivelse

TopDiag • Kredsløbssystemtester til biler P100

TopDiag P100 er en præcisionsdiagnostisk probe designet til professionelle, der arbejder med både 12-volts og 24-volts elektriske systemer i køretøjer. Med en livlig TFT-farveskærm (160×128 dpi) og robust ABS-plastkonstruktion muliggør den spændings-, modstands-, polaritets- og kontinuitetstest med høj nøjagtighed. Den inkluderer også en strømafbryder, der aktiverer komponenter direkte uden jumperledninger—ideelt i værksteder, garager og mobile serviceindstillinger. Specifikationsintervallerne dækker 0-65V DC, 0-200 KΩ modstand og indbygget overbelastnings- og kortslutningsbeskyttelse for sikker drift. Dimensionerne er 165 mm × 40 mm × 27 mm; den opererer mellem 0-60 °C og lagrer mellem -40-70 °C.

Væsentlige fordele

  • Bred spændingskompatibilitet: understøtter både 12V og 24V køretøjssystemer med 0-65V område
  • Multimode-test: DC- og AC-spænding (inklusive frekvens og duty cycle), modstand/kontinuitet, polaritetsdetektion
  • Komponentaktivering uden jumperkabler for hurtigere diagnostik
  • Robust sikkerhed: sikring af sikringsafbrydere, omvendt polaritet og overspændingssikring
  • Klare indikatorer: røde/grønne LED’er for polaritet, tone for åbne eller lukkede kredsløb
  • Bærbar og læsbar: stor TFT-farveskærm og indbyggede LED-lys til miljøer med svagt lys

Understøttede protokoller

  • DC-spændingsmåling
  • Vekselspændingsmåling (frekvens og arbejdscyklus)
  • Modstands- / kontinuitetstest
  • Diodetestning
  • Polaritetsdetektion
  • Komponentaktiveringsoutput

Understøttede funktioner

Afhængigt af køretøjets kompatibilitet understøttes følgende funktioner:

  • Hurtige spændings- og polaritetstjek på køretøjets kredsløb
  • Find kortslutninger og åbne kredsløb uden at fjerne ledningsnet
  • Test-jordkontaktens kvalitet og dårlige jordfejl
  • Aktiver lys, relæer, sensorer, motorer for funktionsbekræftelse
  • Testtrailerstik og ekstern belysning via udvidet kabelrækkevidde

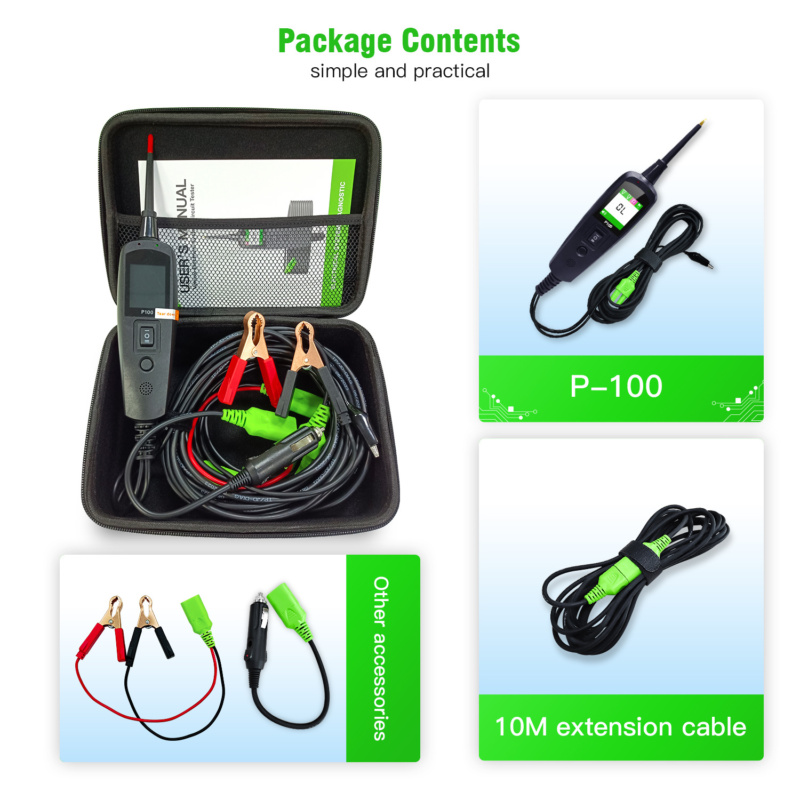

Inkluderede genstande

  • 1 × TopDiag P100 hovedenhed inklusive probespids
  • 1 × batteritilslutning alligatorklips (rød og sort)
  • 1 × forlængerkabel (fås i 2 meter eller 10 meters længde)
  • 1 × cigarettænderadapter
  • 1 × brugermanual

Understøttede sprog

Engelsk, tysk, fransk, spansk, italiensk, portugisisk, russisk

Standarder



Specifikation

Transportvægt (kg) 1,12 kg
Transportmål (mm) 270 × 180 × 85 mm
Mærke

Color

Country of Origin

CN
Tariff number (HS code)

9030339000
Arbejdsspænding

0-60°C
Modstandsområde

0-200 KΩ

Forbruger salg



Garanti

12
