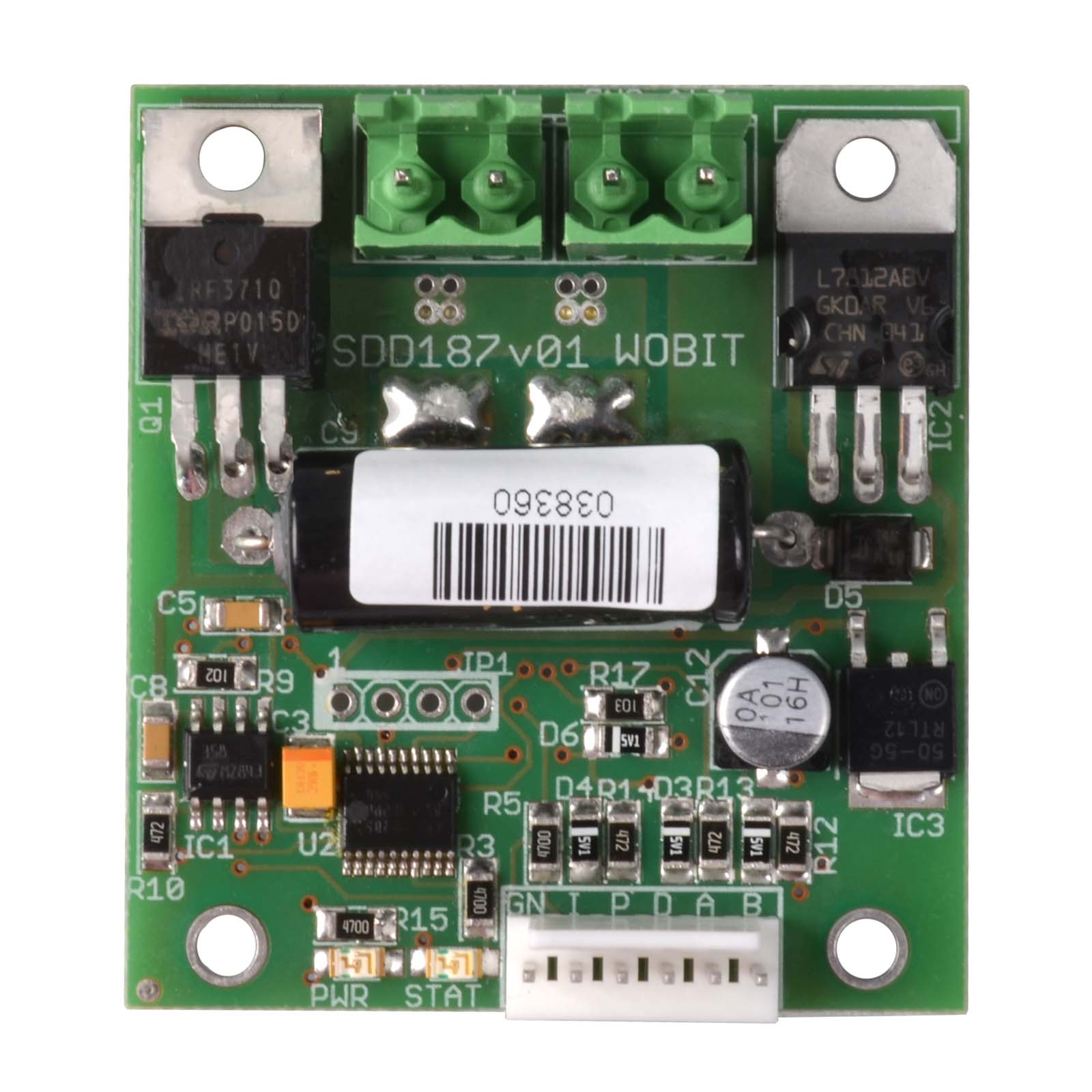

WObit SDD187-01 Gleichstrommotorregler, Ansicht von oben

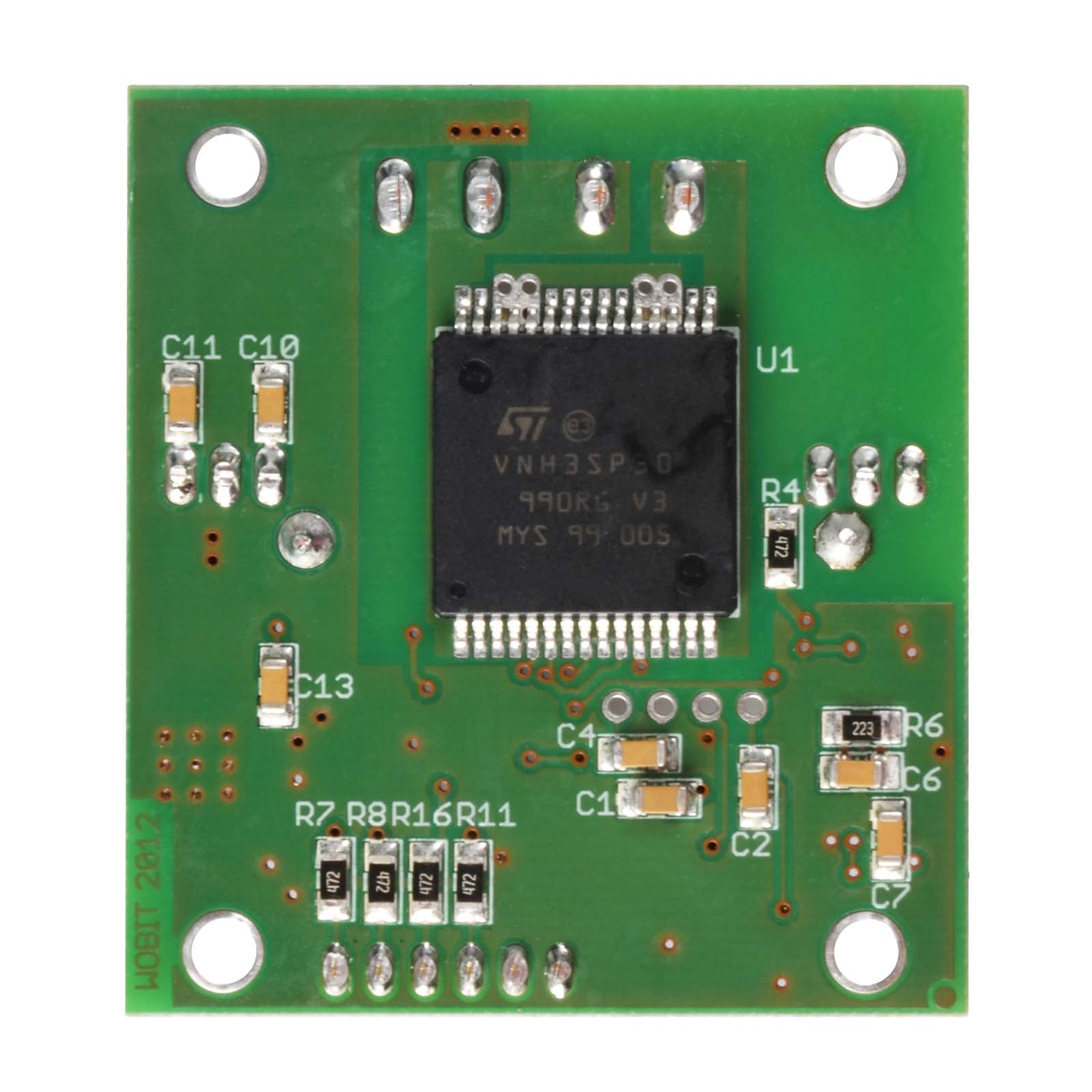

WObit SDD187-01 DC-Motorsteuerung, Ansicht von unten

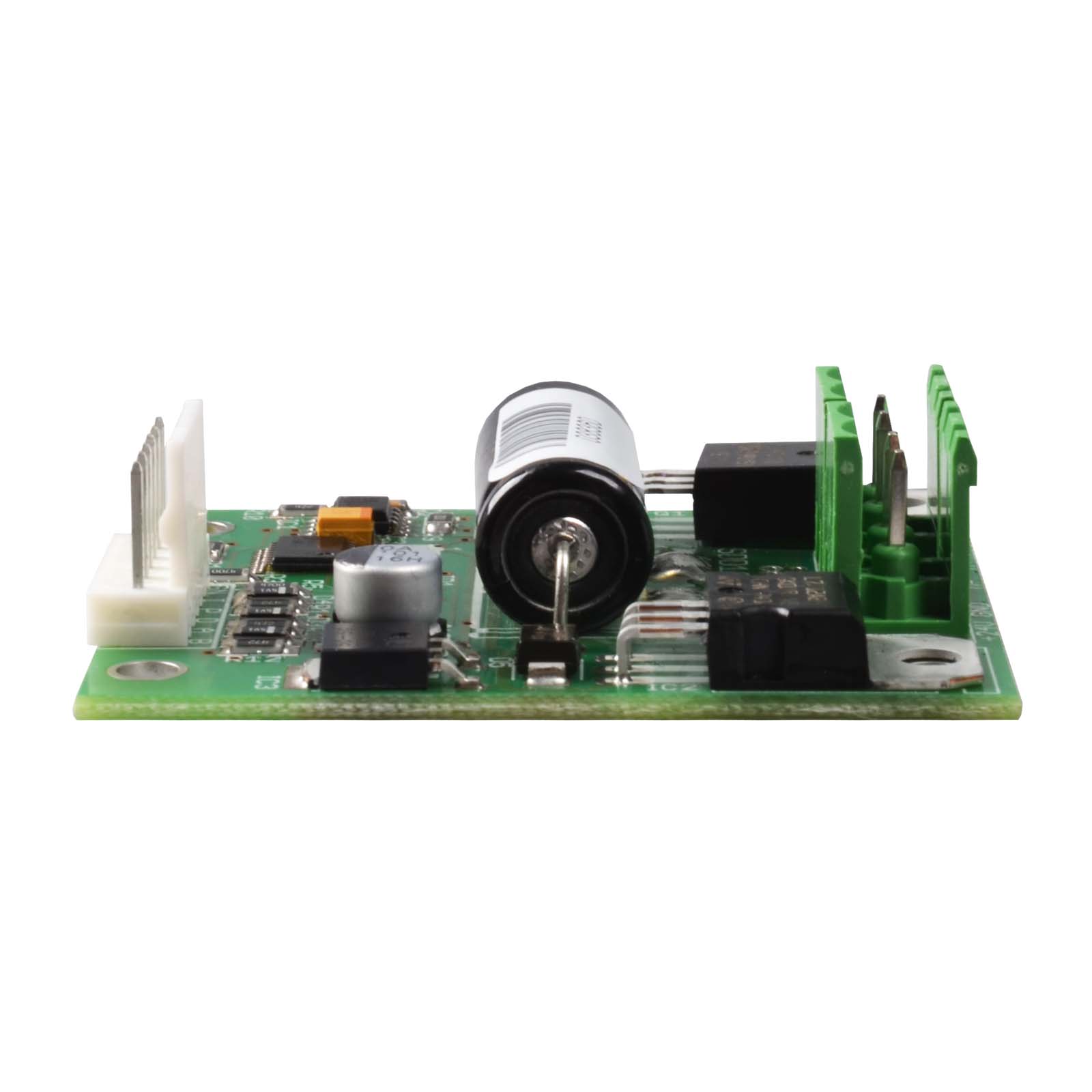

WObit SDD187-01 Gleichstrommotorregler, Ansicht rechts

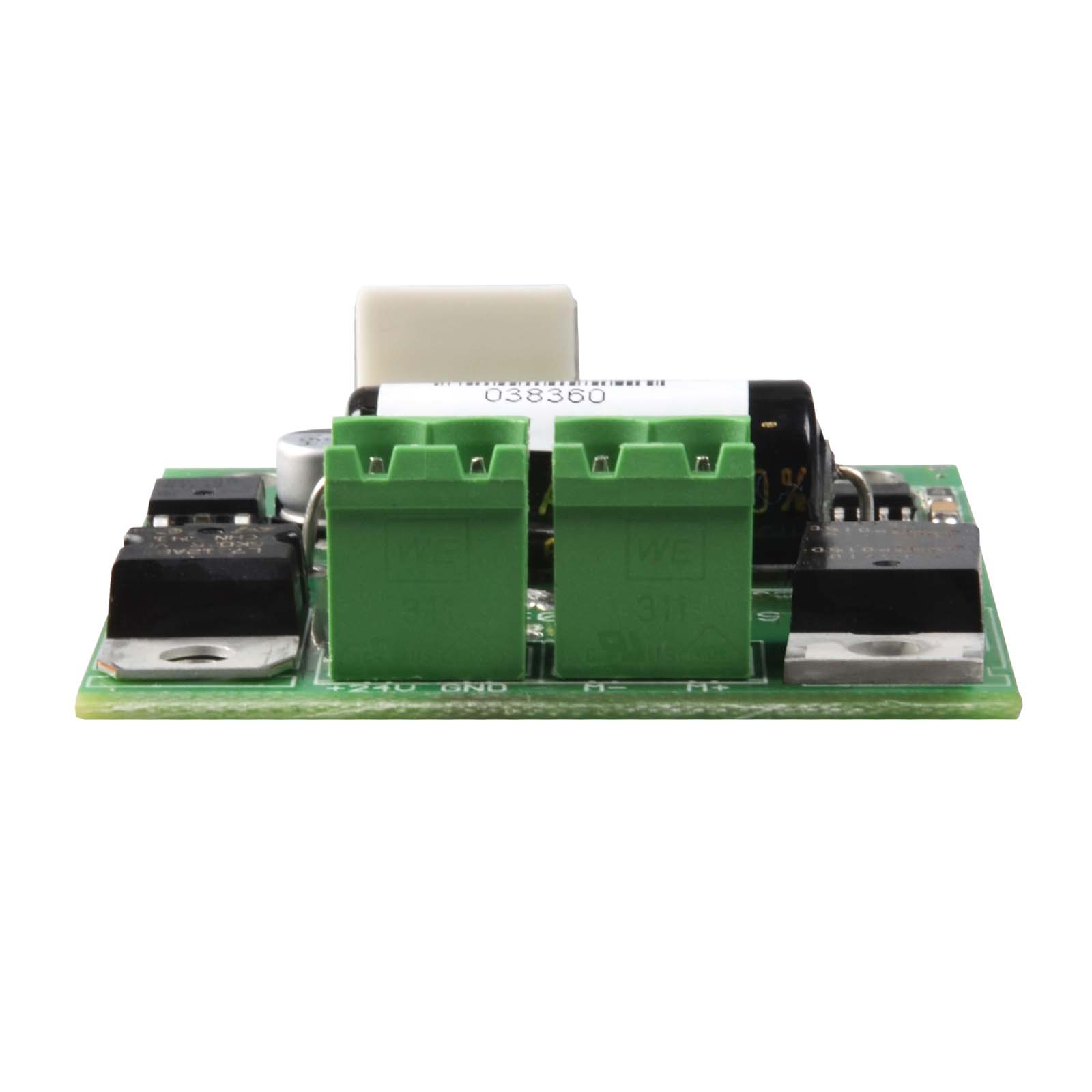

WObit SDD187-01 DC-Motorsteuerung, Rückansicht

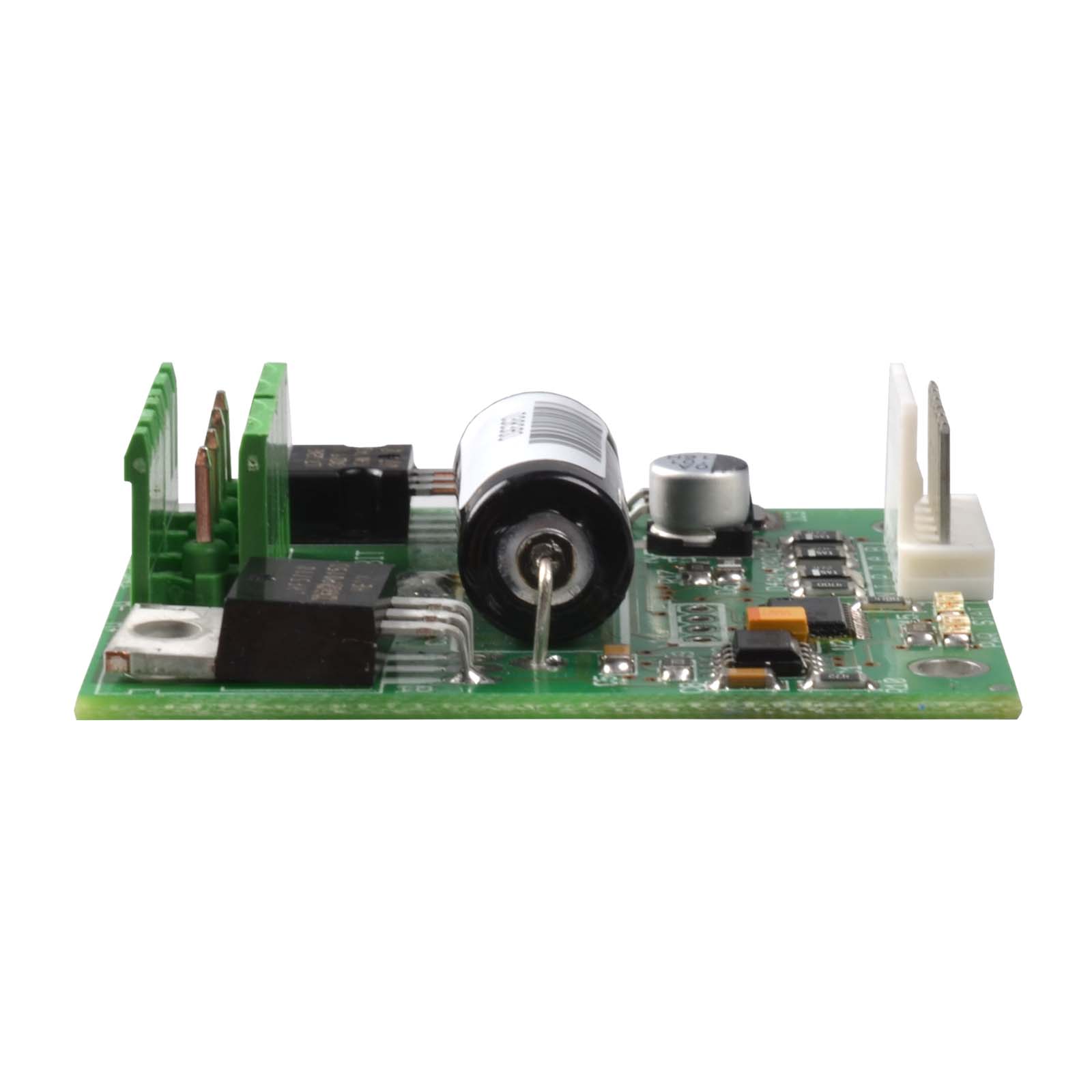

WObit SDD187-01 DC-Motorsteuerung, linke Ansicht

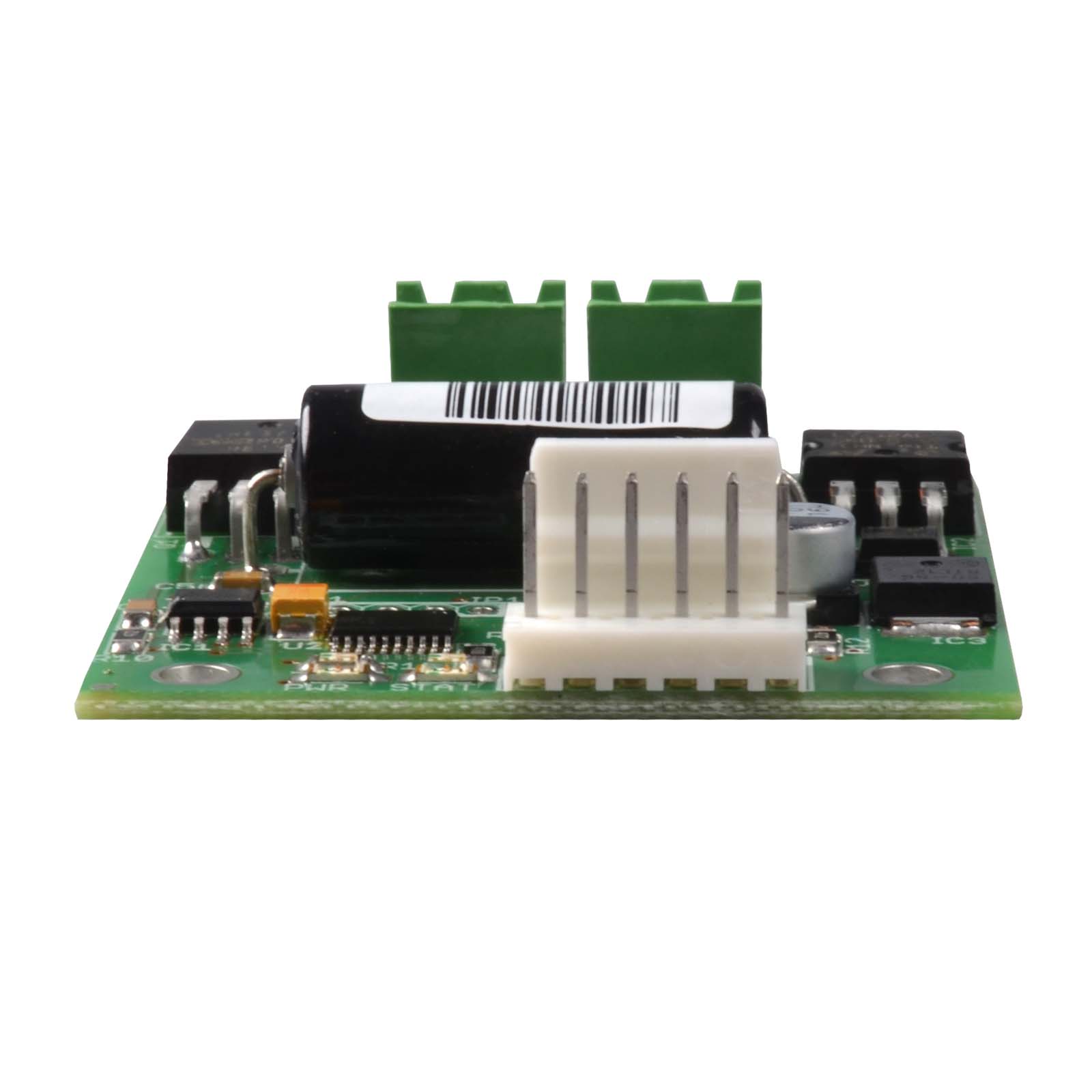

WObit SDD187-01 Gleichstrommotorregler, Vorderansicht

WObit – SDD187-01 – DC-Motorsteuerung, 7A / 20A

€48,00 Exkl. MwSt

MEMIDOS Zahlungsschutz


Delivery Terms: DDU
Artikel wird verschickt in 1-2 Werktage
  Stelle eine Frage
Company
P.P.H. WObit E.K. Ober s.c.
Polen
Artikelnummer: SDD187-01 Kategorie: Schlagwörter: , ,

Verbraucherverkauf



Garantie

12

Teilen Sie dieses Produkt mit Ihren Freunden:

Beschreibung

WObit – SDD187-01 – DC-Motorsteuerung, 7A / 20A

WObit SDD187 ist ein einzelnes Treibermodul für einen DC-Motor. Er ist auf der Basis einer integrierten Leistungsbrücke aufgebaut, die es ermöglicht, einen Gleichstrommotor mit einem Strom von bis zu 20 A zu steuern.

Das System verfügt über einen Überhitzungs- und Überlastungsschutz, der das System bei Überhitzung oder Überlastung (z. B. Anlaufen mit zu hohem Strom oder plötzliche Änderung der Drehrichtung) abschaltet.

Die Geschwindigkeit wird durch Änderung des PWM-Eingangssignals eingestellt. Die PWM-Eingangsfrequenz kann 100 Hz bis 100 kHz betragen und hat keinen Einfluss auf die an die Leistungsbrücke angelegte PWM-Frequenz.

Normen



Spezifikation

Gewicht 0,03 kg
Marke

WObit
Stromversorgung (Spannung)

12…30 VDC
Nennstrom

7A (ohne Heizkörper) / 20A (mit Heizkörper)
Ausgang für Strommessung

0…10V
Kontrolleingänge

0 / 24V
PWM-Eingang

0 / 24V, F: 100Hz…100kHz
Diagnostische Ausgabe

Überlast – 0V, Normalbetrieb +5V (Möglichkeit eines externen Pull-up auf +24V)
Größe

48 x 53 mm
