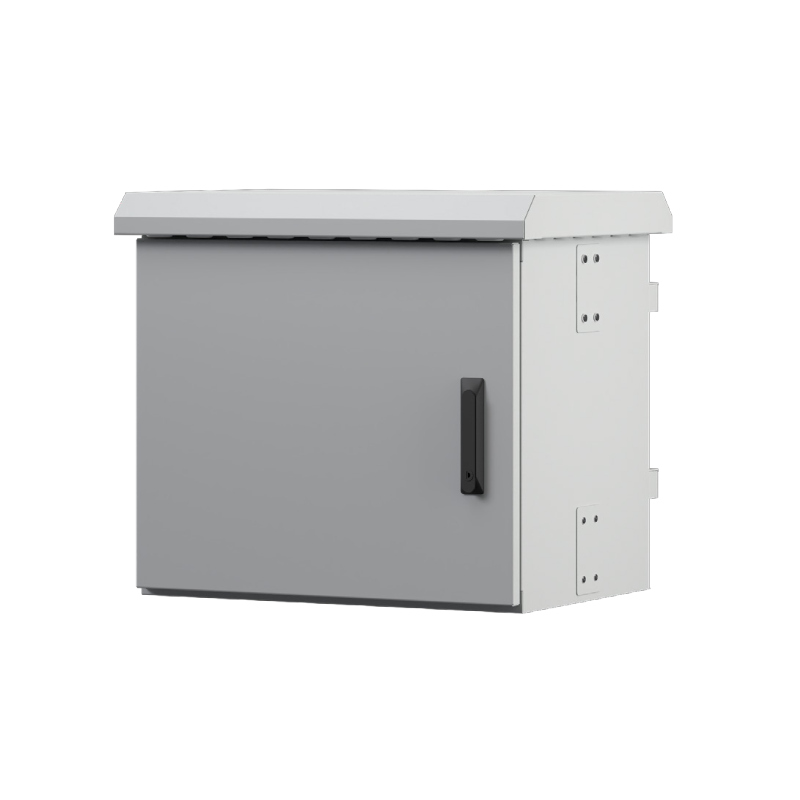

Armario rack exterior UPCOM para montaje en mástil, doble capa, IP66, 600x450, capacidad 9U
Armario rack de exterior UPCOM para montaje en mástil, IP66, 600x450, capacidad 9U, despiece

Upcom • Armario rack de exterior para instalación en mástil • Doble capa, IP66, 600×450

€549,24 Sin IVA

MEMIDOS Protección de Pago


Delivery Terms: DDU
El artículo estará listo para enviar en 4-6 semanas
  Hacer una pregunta
Company
UPCOM Telekomunikasyon
Turquía
SKU: UPC-MBS-9U450 Categoría: Etiquetas: , ,

venta al consumidor



garantía

12

Comparte este producto con tus amigos:

Descripción

Upcom • Armario rack de exterior para instalación en mástil • Doble capa, IP66, 600×450

Armario rack de exterior de alta calidad, adecuado para equipos de red y servidores.
Armario abrible y bloqueable con protección total contra la entrada de polvo y agua con estructura IP66. Se puede montar en un mástil y tiene 4 puntos de conexión de cámara. (Cámaras no incluidas). Capacidad de uso interno de 9U. Este armario es un armario de doble capa, lo que significa que está equipado con una capa interior adicional para un mayor aislamiento térmico.

Características generales

  • Tapa frontal abrible y bloqueable.
  • Protección total contra la entrada de polvo y agua con estructura IP66.
  • Estructura superior abrible que proporciona acceso externo al módulo del ventilador.
  • Oportunidad de entrada de cables oculta con estructura de tubos en la parte trasera.
  • Rejillas de entrada de aire con filtro antipolvo.
  • Pieza de ventilación con ventilador filtrado de polvo.
  • La ventilación puede proporcionarse mediante unidades de refrigeración con 1 ó 2 ventiladores.
  • Capacidad de uso interno de 9U. Disponibilidad para producir en diferentes dimensiones.
  • Chapa de acero DKP para capa exterior.
  • Los perfiles de montaje tienen marcas en U que facilitan el proceso de montaje.
  • 4 piezas de puntos de conexión de cámara.
  • Se puede montar en el mástil.
  • Revestimiento de circonio + zinc altamente eficaz contra la corrosión.
  • Pintado con pintura electrostática de alta resistencia a los golpes, gris RAL 7035.
  • Se han realizado todos los procedimientos de prueba y cumple las normas RoHS, CE y EN 61587-1.

Medidas

Estándares


TS EN IEC 61587-1: 2022 / ISO9001-2015 / ISO14001-2015 / ISO 45001-2018 / ISO 27001:2017 / RoHS / UL 2416

Especificación

Peso 42 kg
Dimensiones 700 × 550 × 675 mm
Color

Capacidad de carga

300kg / 661,38Ibs
Tipo de pintura

Pintura electrostática en polvo
Dimensiones An*P

An:600 mm F:450 mm
Tamaño

9U
Material

Chapa de acero, DIN EN 1030-99 / DC-01 6112 / DC-7122
Marca

Upcom

venta al consumidor



garantía

12

Estándares


TS EN IEC 61587-1: 2022 / ISO9001-2015 / ISO14001-2015 / ISO 45001-2018 / ISO 27001:2017 / RoHS / UL 2416
