Capteur de force Vetec de type S OIML R60 C3 en acier inoxydable certifié IP68 pour des mesures précises de la traction et de la compression.
Vetec - Capteur de pesage de type S - OIML R60 C3 – Image 2
Vetec - Capteur de pesage de type S - OIML R60 C3 – Image 3

Vetec – Capteur de pesage de type S – OIML R60 C3

Plage de prix : €174,00 à €268,00 Hors TVA

MEMIDOS Protection des Paiements

Delivery Terms: DDU
Produit sera envoyé dans 1-2 jours ouvrables
  Poser une question
Company
Nordtech-Vetec A/S
Danemark
UGS : S-CELL000000R60 Catégorie :

Vente au consommateur



garantie

12

Partagez ce produit avec vos amis :

Description

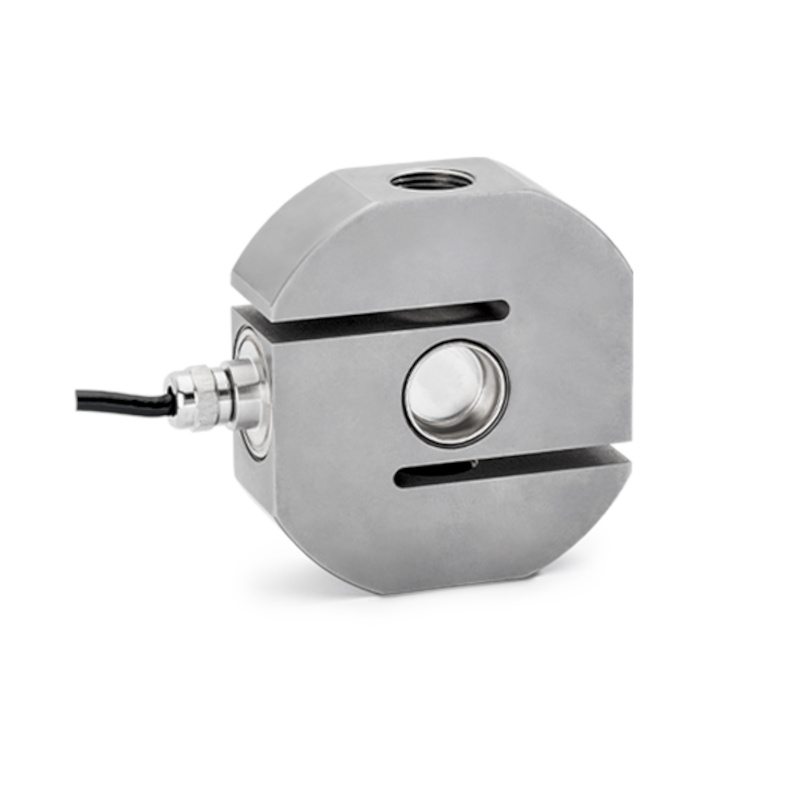

Vetec – Capteur de pesage de type S – OIML R60 C3

Le capteur de pesage de type S de Vetec est un dispositif de surveillance de la charge de première qualité, spécialement conçu pour les professionnels de divers secteurs d’activité. Construit en acier inoxydable de haute qualité, ce capteur compact excelle dans les applications de traction et de compression, ce qui en fait un choix idéal pour les balances suspendues, les trémies et autres dispositifs de pesage.

Ce capteur de pesage offre une précision et une fiabilité exceptionnelles, en respectant les normes industrielles les plus strictes, notamment la certification OIML R60 C3. Avec un indice de protection IP68, il est conçu pour résister aux environnements difficiles, garantissant des performances constantes même dans des conditions difficiles. Le capteur de pesage de type S de Vetec présente un rapport d’intervalle de vérification de capteur de pesage minimum de 12000, ce qui offre une tranquillité d’esprit aux professionnels qui ont besoin de mesures précises.

Destiné aux ingénieurs, techniciens et professionnels du contrôle qualité, le capteur de pesage Vetec de type S est facile à intégrer dans les systèmes existants. Pour des performances optimales, veillez à une installation et à un étalonnage corrects, conformément aux directives du fabricant, afin d’assurer un contrôle précis et fiable de la charge dans vos applications.

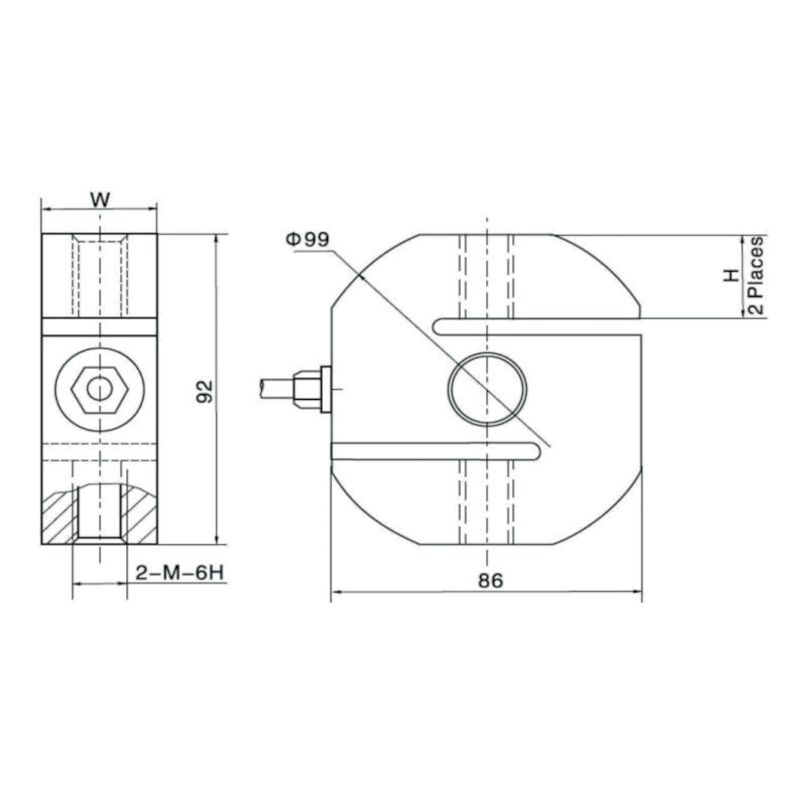

Numéro d’articleCapacitéSortieL (mm)H (mm)Diamètre (mm) M (mm)Poids (kg.)
S-CELL500KG-Z10.5T2mV/V3225Ø99M12 x 1,751.60
S-CELL1000KG-Z11T2mV/V3225Ø99M12 x 1,751.60
S-CELL2000KG-Z12T2mV/V3225Ø99M20 x 1,51.60
S-CELL5000KG-Z15T2mV/V5024Ø99M24 x 22.35

Informations complémentaires

  • Matériau : Acier inoxydable
  • IP68 pour la résistance à la poussière et à l’eau
  • Certification OIML R60 C3 pour la conformité
  • Convient aux applications de traction et de compression
  • Intervalle minimum de vérification des cellules de charge : 12000

Normes



spécification

Shipping Weight (kg) ND
Shipping Dimensions (mm) ND
Marque

Vetec
Capacité

500 kg, 1000kg, 2000kg, 5000kg, 500 kg, 1000kg, 2000kg, 5000kg
Direction de la force

Force de traction, Compression
Erreur combinée :

≤±0,0230 %FS
Classification IP

IP 68
Résistance de sortie :

350 ± 3 Ω
Surcharge sûre :

150%
Température compensée :

De -10 à 40 °C
Température de fonctionnement :

-35 à 65 °C
Sensibilité de la sortie (= FS) :

2,0 ± 0,004 mV/V
Ratio de l'intervalle de vérification min. Intervalle de vérification LC :

12000
Excitation, tension recommandée :

5 à 12 V
