OnRobot • Ascensore robotico Lift 100

11.803,00 IVA esclusa

Il robot Lift 100 OnRobot Lift 100 è compatibile con i cobot di: ABB, Denso, Doosan, Epson, FANUC, Hanwha, Kassow, Kawasaki, KUKA, NACHi, Omron TM, Techman, Yaskawa e Universal Robots.

Quando si ordina l’ascensore robot Lift 100, si prega di scrivere il tipo di cobot nel campo “Note dell’ordine” nella pagina di checkout (pagina di pagamento).

L'articolo sarà spedito in 1-3 giorni lavorativi
  Fai una domanda
Company
Danimarca
COD: 109000-1-1 Categoria: Tag: , , ,

Vendita al consumo



garanzia

12

Condividete questo prodotto con i vostri amici:

Descrizione

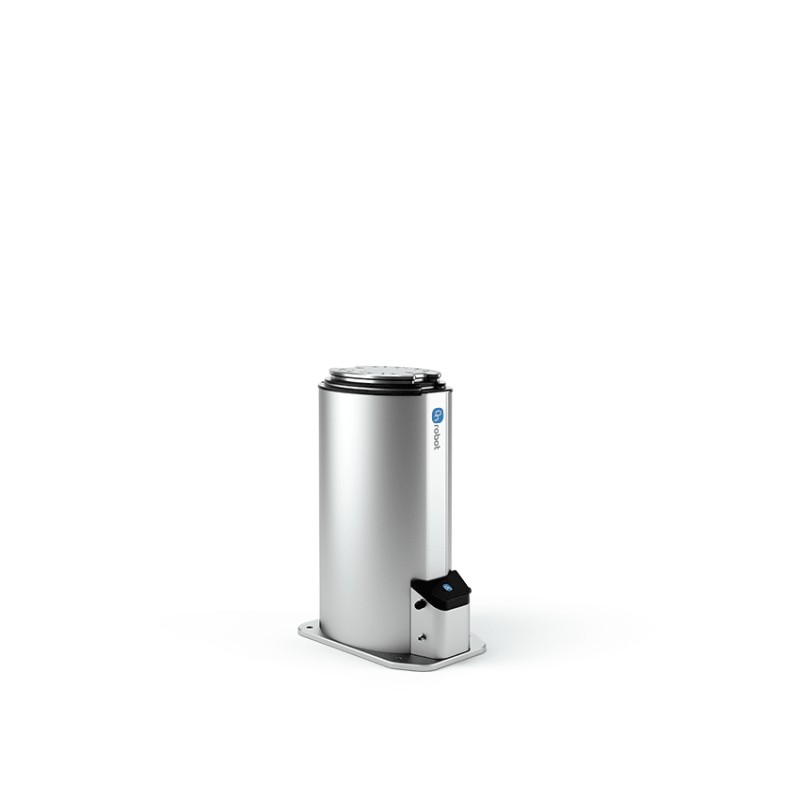

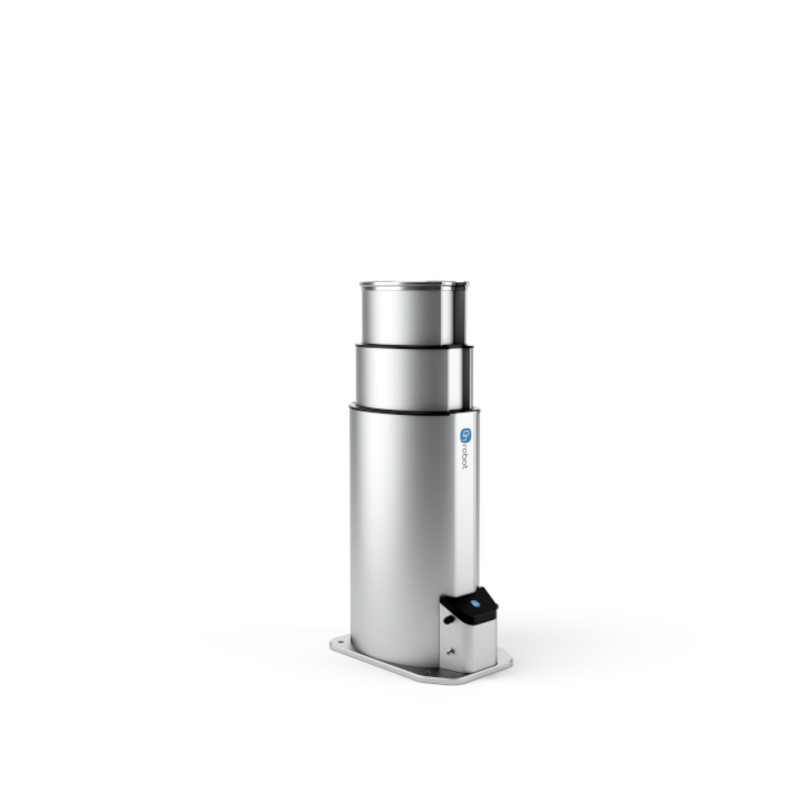

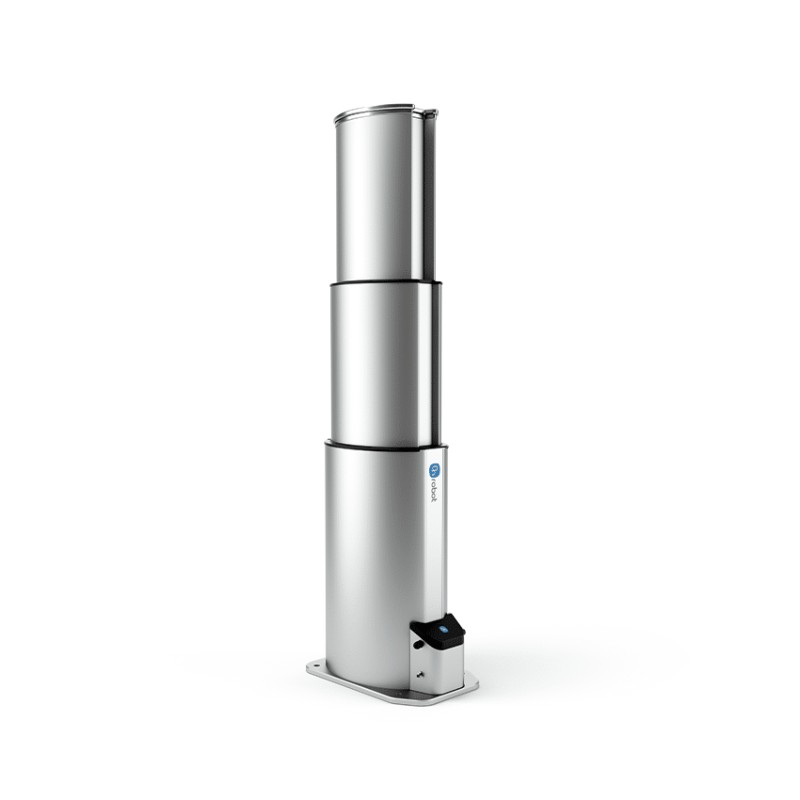

OnRobot • Ascensore robotico Lift 100

OnRobot Lift100 è un elevatore robotico a corsa lunga e ad alto carico che aggiunge un settimo asse versatile ai bracci robotici tradizionali e collaborativi a sei assi. Il Lift100 ha una deflessione minima, anche con carichi elevati e ad alte velocità, per garantire un posizionamento preciso delle scatole nelle applicazioni di pallettizzazione. Le sue caratteristiche di sicurezza integrate, con funzionalità di arresto (in attesa di certificazione TÜV), consentono l’impiego collaborativo con lavoratori umani (una volta effettuata la valutazione dei rischi).

Lift 100 Robot Elevatore – Sollevatore robotizzato ad alto carico per la pallettizzazione

  • L’elevatore robotico a corsa lunga consente un’ampia gamma di attività di pallettizzazione a prova di futuro per i principali bracci robotici
  • L’elevatore per carichi elevati con deflessione minima garantisce un posizionamento preciso delle scatole, anche a velocità elevate
  • Design robusto per un prodotto affidabile e di lunga durata in tutte le condizioni tipiche di produzione
  • Caratteristiche di sicurezza integrate con funzionalità di arresto TÜV (in attesa di certificazione) per agevolare l’impiego collaborativo
  • L’integrazione immediata con la soluzione di pallettizzazione OnRobot accorcia i tempi di installazione

Imparare OnRobot

Imparare a integrare e distribuire con successo
Le soluzioni OnRobot nella vostra applicazione.

Vantaggi e caratteristiche di Lift100

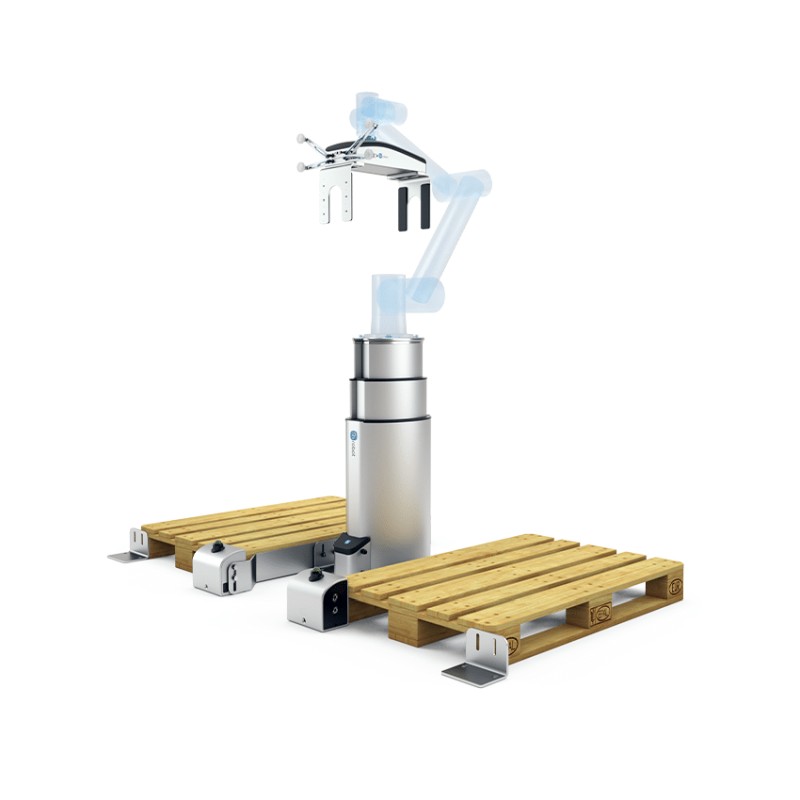

L’Lift100 si integra perfettamente con la Pallet Station e può essere utilizzato con qualsiasi robot di marca. Ottenete un’implementazione rapida e semplice e una flessibilità a prova di futuro per un’ampia gamma di applicazioni di pallettizzazione o di produzione.

✓ ELEVATO CARICO UTILE PER UN 7° ASSE VERSATILE
L’elevatore robotico a corsa lunga e ad alto carico aggiunge un settimo asse versatile ai bracci robotici per l’industria leggera e la collaborazione.

✓ DEFLESSIONE MINIMA PER UN POSIZIONAMENTO PRECISO
Il design robusto garantisce un posizionamento preciso delle scatole, anche a velocità elevate.

✓ AFFIDABILITÀ TESTATA PER UNA LUNGA DURATA DI VITA
Design resistente, testato e certificato per funzionare in modo affidabile in tutte le condizioni di produzione tipiche.

✓ APPLICAZIONI VERSATILI CON UNA GAMMA DI MARCHI DI ROBOT LEADER DEL SETTORE
Può essere utilizzato per qualsiasi applicazione in cui sia necessario uno sbraccio verticale supplementare per il robot.

Standard



Specifica

Peso 86 kg
Dimensioni 730 × 325 × 492 mm
Marca

OnRobot

Carico utile

100 kg

Altezza dal pavimento

730 – 1630 mm

Velocità di sollevamento

10 – 100 mm/s

Temperatura di esercizio

0 – 50 °C

Classificazione IP

IP54
