ThinkCar THINKSCAN 689BT strumento diagnostico auto, scanner OBD2 per la diagnostica completa del sistema e la codifica ECU
Strumento diagnostico premium robusto con copertura di sistema di livello OE, schermo ad alta risoluzione e aggiornamenti a vita.
Tablet diagnostico professionale per meccanici con test ECU completi, reset di manutenzione e supporto per aggiornamenti wireless.
ThinkCar THINKSCAN 689BT strumento diagnostico con custodia in plastica resistente

ThinkCar • Strumento diagnostico per auto THINKSCAN 689BT

€769,00 IVA esclusa

MEMIDOS Protezione del Pagamento
Venditore:  CANWAYTECH
<span class="sku_wrapper">Cina</span> Cina
Termini di consegna: DDP
L'articolo sarà spedito in 3-5 giorni lavorativi
  Fai una domanda
COD: CW2026083103D Categoria:

Vendita al consumo



garanzia

12

Condividete questo prodotto con i vostri amici:

Descrizione

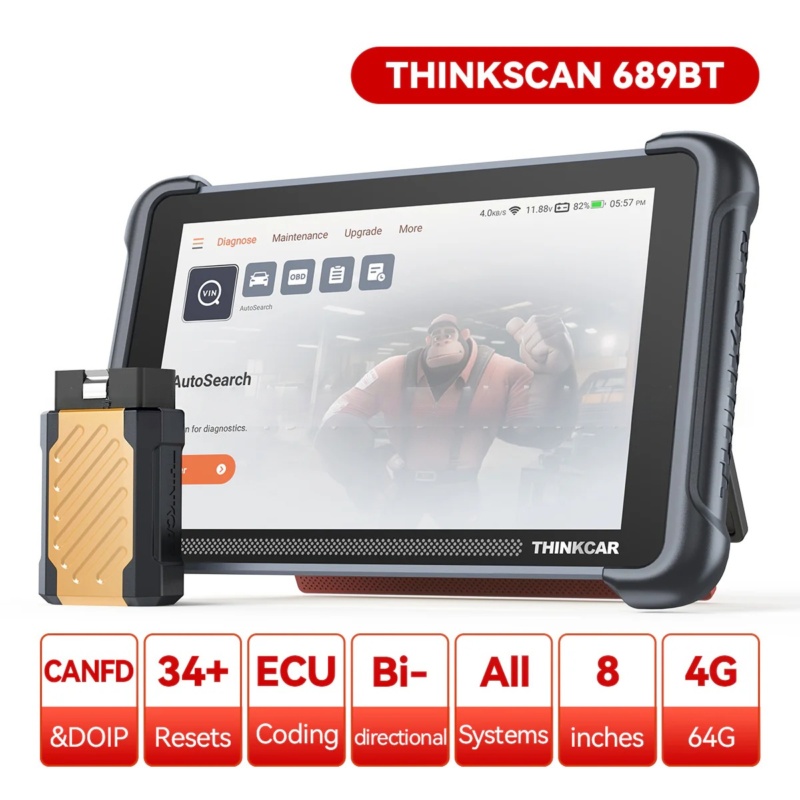

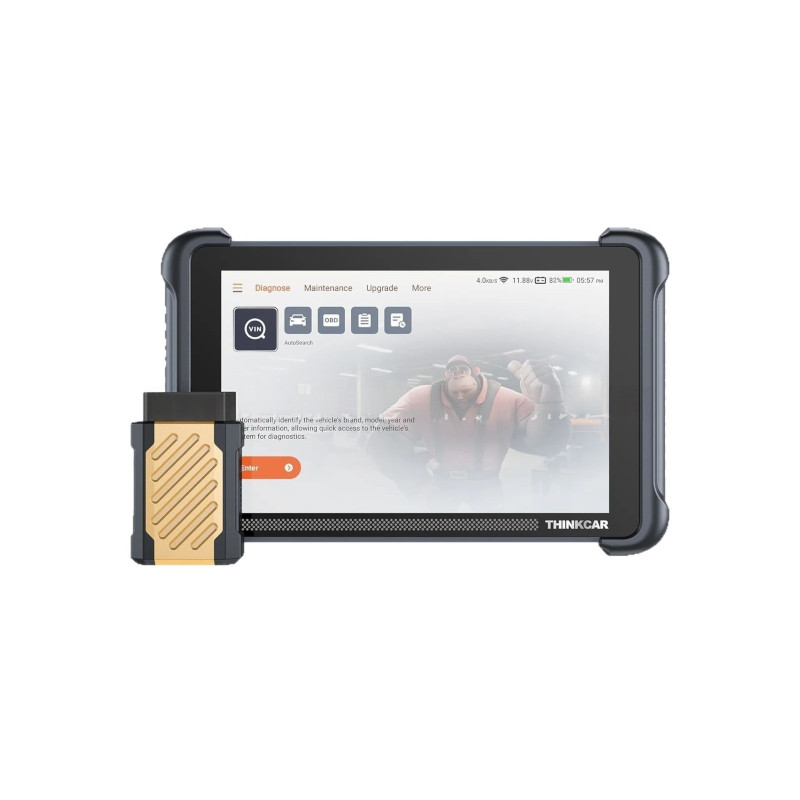

ThinkCar • Strumento diagnostico per auto THINKSCAN 689BT

Il ThinkCar THINKSCAN 689BT è uno scanner diagnostico professionale progettato per meccanici e appassionati di fai-da-te avanzati. Con Android 10 su un Cortex-A53 quad-core, offre diagnostiche veloci e complete con 4 GB di RAM, 64 GB di memoria e un display ad alta risoluzione da 8 pollici. Bluetooth a 5.0 e Wi-Fi 2,4/5 GHz consentono aggiornamenti wireless e connettività. Supporta CAN-FD, DoIP e FCA AutoAuth, rendendolo compatibile con oltre 150 marchi di veicoli per codifica ECU completa, test bidirezionali e 35+ funzioni di manutenzione con aggiornamenti gratuiti a vita.

Principali benefici

  • Diagnosi completa a livello OE, inclusa lettura e cancellazione dei codici, dati in tempo reale e tutti i sottosistemi (motore, trasmissione, ABS, SRS, TPMS e altri)
  • Supporto avanzato per protocolli: CAN-FD, DoIP, ISO 9141-2, ISO 14230-4, ISO 15765-4, SAE J1850 (VPW & PWM), ecc.
  • Codifica ECU, test attivi/bidirezionali e abbinamento dei moduli incluso FCA AutoAuth per il bypass sicuro del gateway
  • Oltre 35 funzioni di reset e adattamento del servizio (reset dell’olio, abbinamento della batteria, rigenerazione DPF, reset dell’angolo di sterzata, ecc.)
  • Hardware potente: touchscreen da 8 pollici, batteria da 4150 mAh, Wi-Fi dual-band, aggiornamenti software a vita

Protocolli supportati

  • CAN-FD
  • DoIP
  • ISO 9141-2
  • ISO 14230-4 (KWP2000)
  • ISO 15765-4 (CAN)
  • SAE J1850 VPW & PWM
  • Protocolli aggiuntivi: UDS, TP 2.0, DS-* (BMW), ecc.

Funzioni supportate

A seconda della compatibilità del veicolo, sono supportate le seguenti funzioni:

  • Test bidirezionali/componenti attivi (iniettori, relè, ventola di raffreddamento, pompa ABS, ecc.)
  • Codifica ECU e personalizzazione delle funzionalità
  • Servizi completi di reset (olio, batteria, freni, angolo di sterzata, TPMS, DPF, ecc.)
  • AutoVIN & AutoScan per identificare rapidamente il veicolo
  • FCA AutoAuth per bypassare i moduli gateway sicuri sui veicoli FCA compatibili

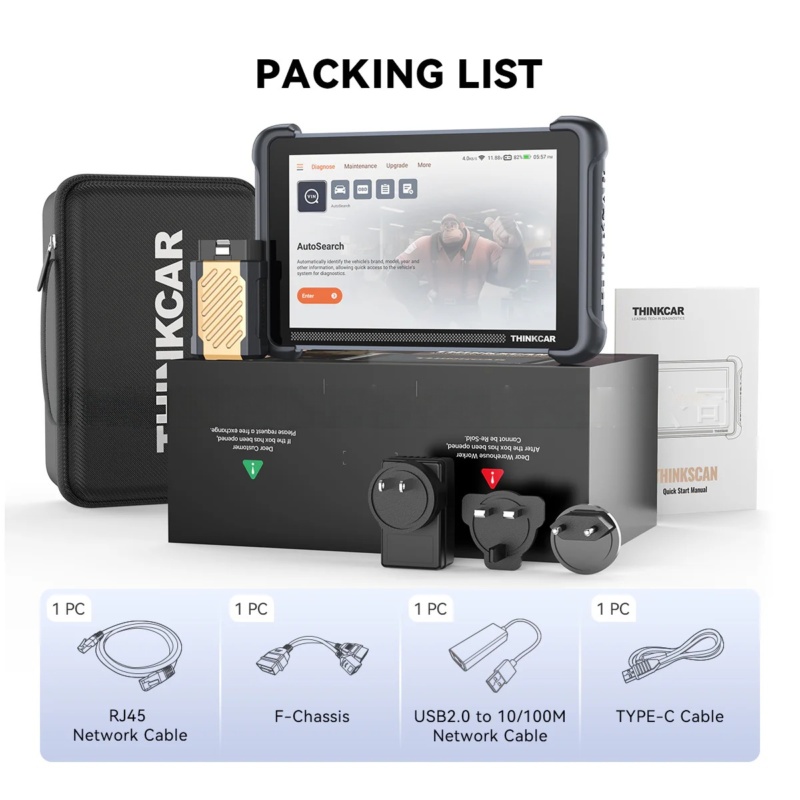

Elementi inclusi

  • 1 × THINKSCAN 689BT unità principale
  • 1 × dongle Bluetooth (connettore ThinkDiag Mini 2)
  • Caricatore 3 in 1 ×
  • 1 × cavo di ricarica Type-C
  • 1 × cavo di rete RJ45
  • Adattatore a telaio F da 1 × (per bypass FCA SGW)
  • Cavo di rete da 1 × USB 2.0 a 10/100 M
  • 1 × custodia
  • 1 × manuale utente
  • 2 × protezioni per schermo in vetro temperato

Standard



Specifica

Peso di spedizione (kg) 2 kg
Dimensioni di spedizione (mm) 275 × 190 × 115 mm
Marca

Color

Country of Origin

CN
Tariff number (HS code)

9031809090
Display

Display da 8"
Risoluzione

1024*800 pixel
Capacità della batteria

4150mAh/3, 8v
Bluetooth

BT5.0
Temperatura di lavoro

0°C a 50°C
Temperatura di stoccaggio

-20-60°C
Tensione operativa

9~18V
Corrente operativa

≤1.2A
