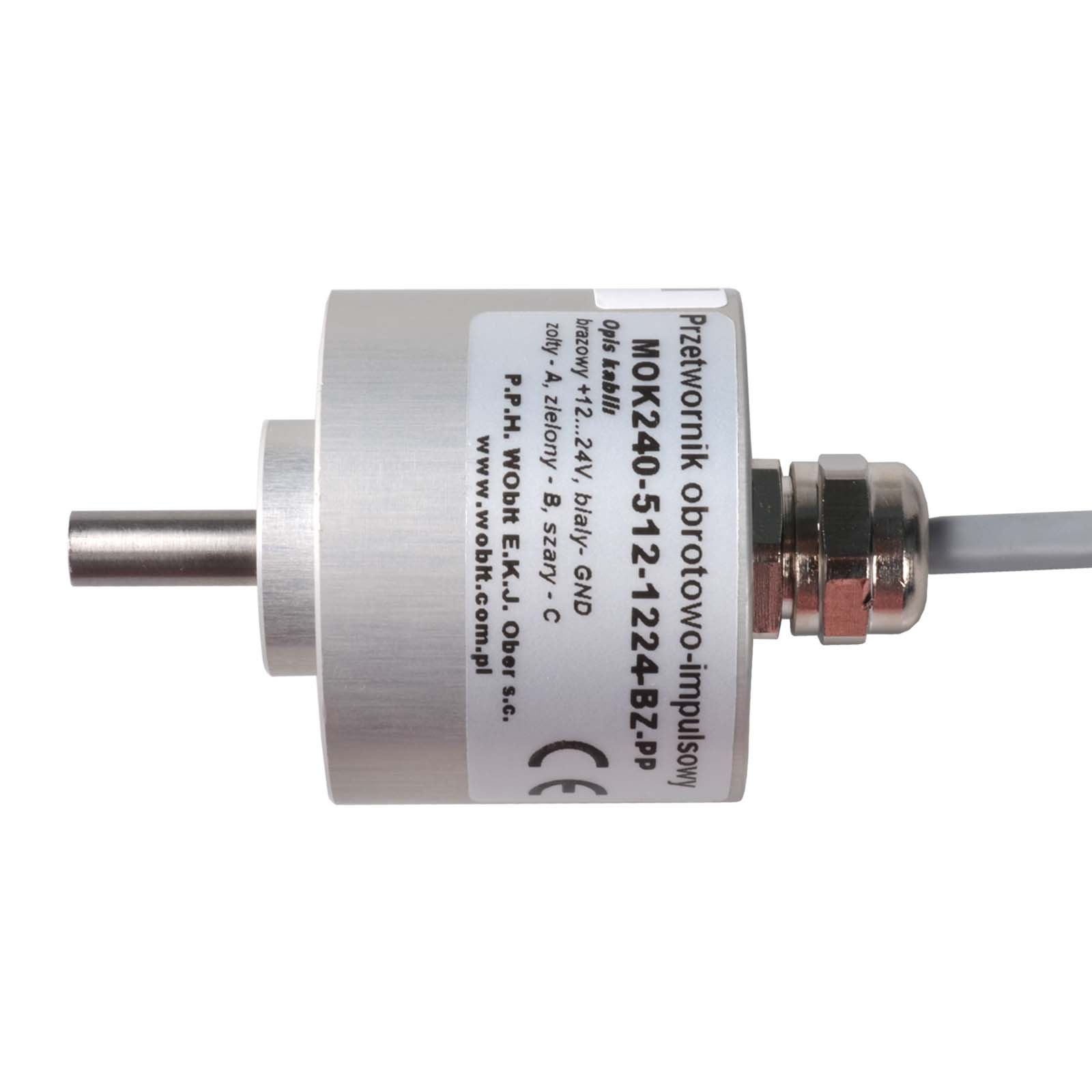

MOK240-512-1224-BZ-PP codificador magnético rotativo de impulsos

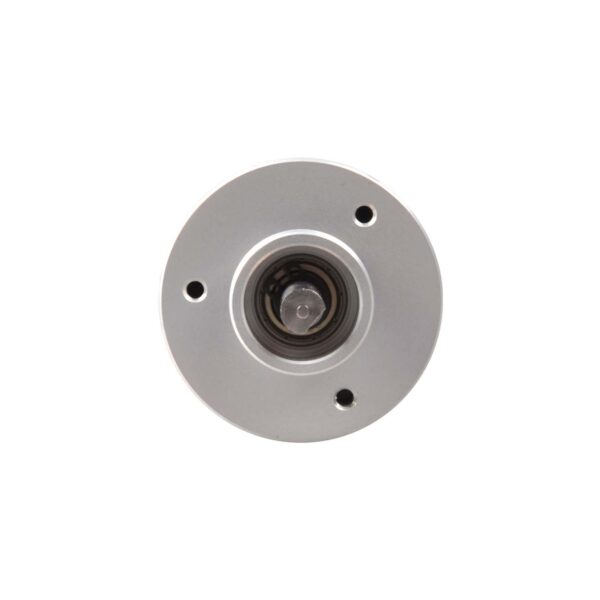

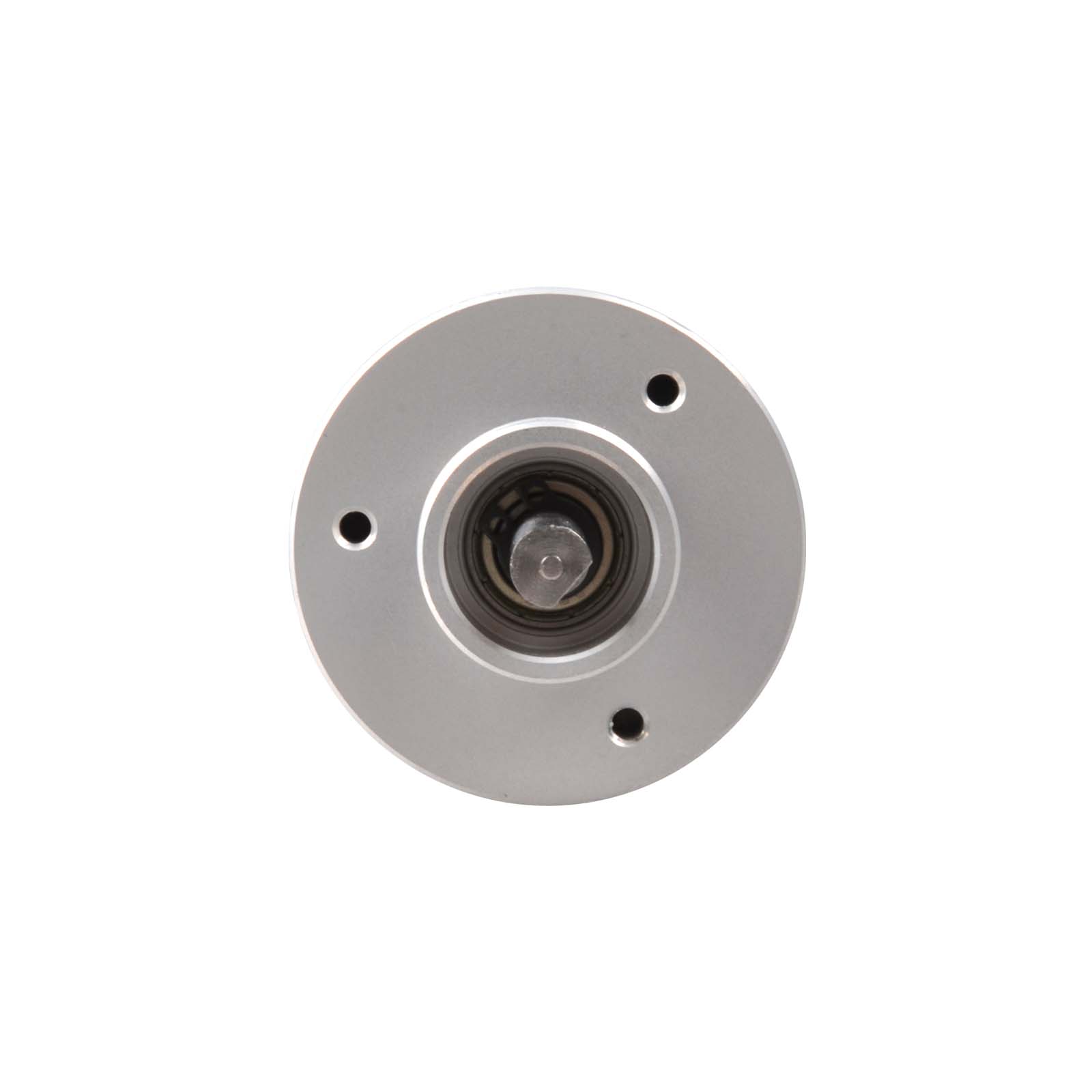

Eje de codificador MOK240-512-1224-BZ-PP

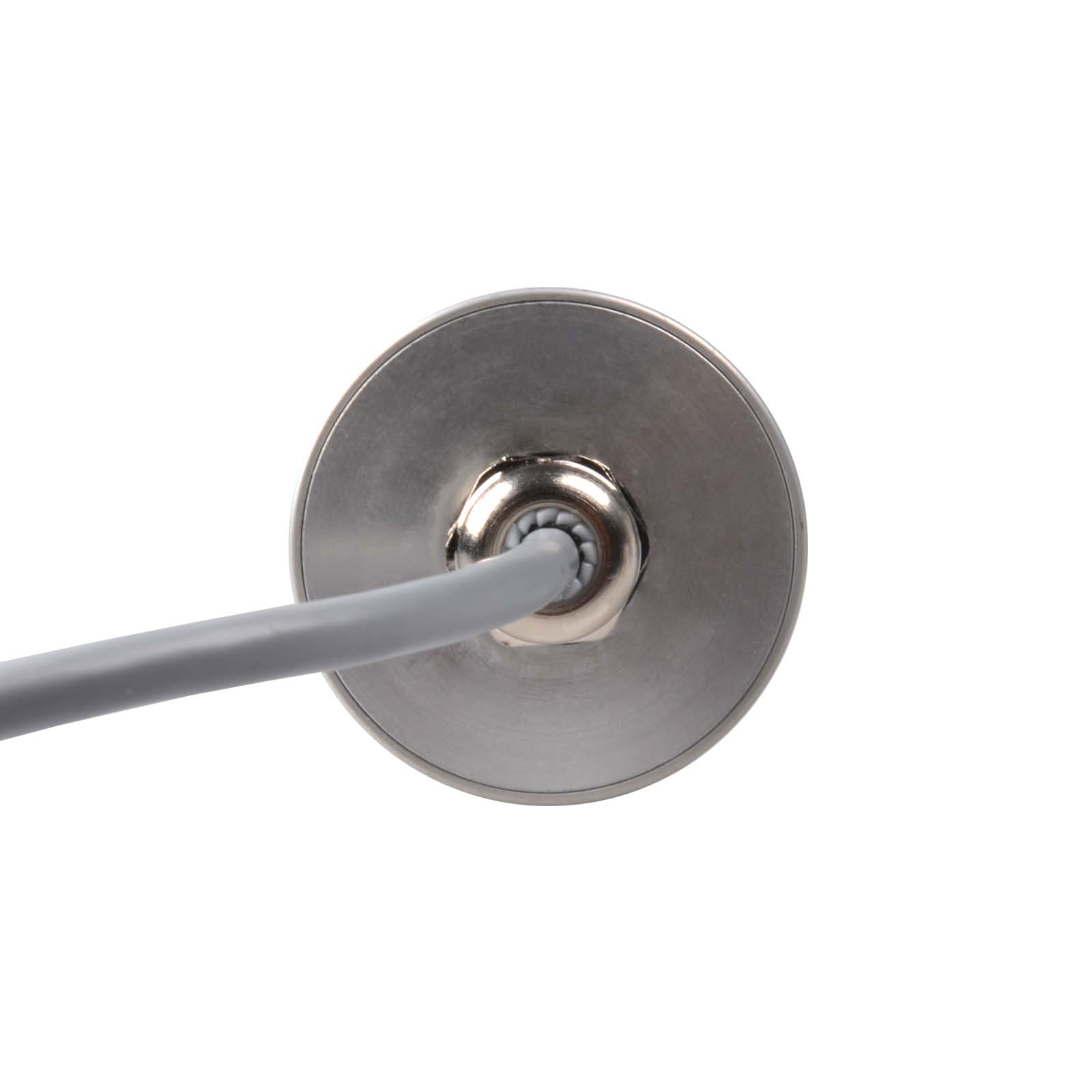

MOK240-512-1224-BZ-PP cable de codificador

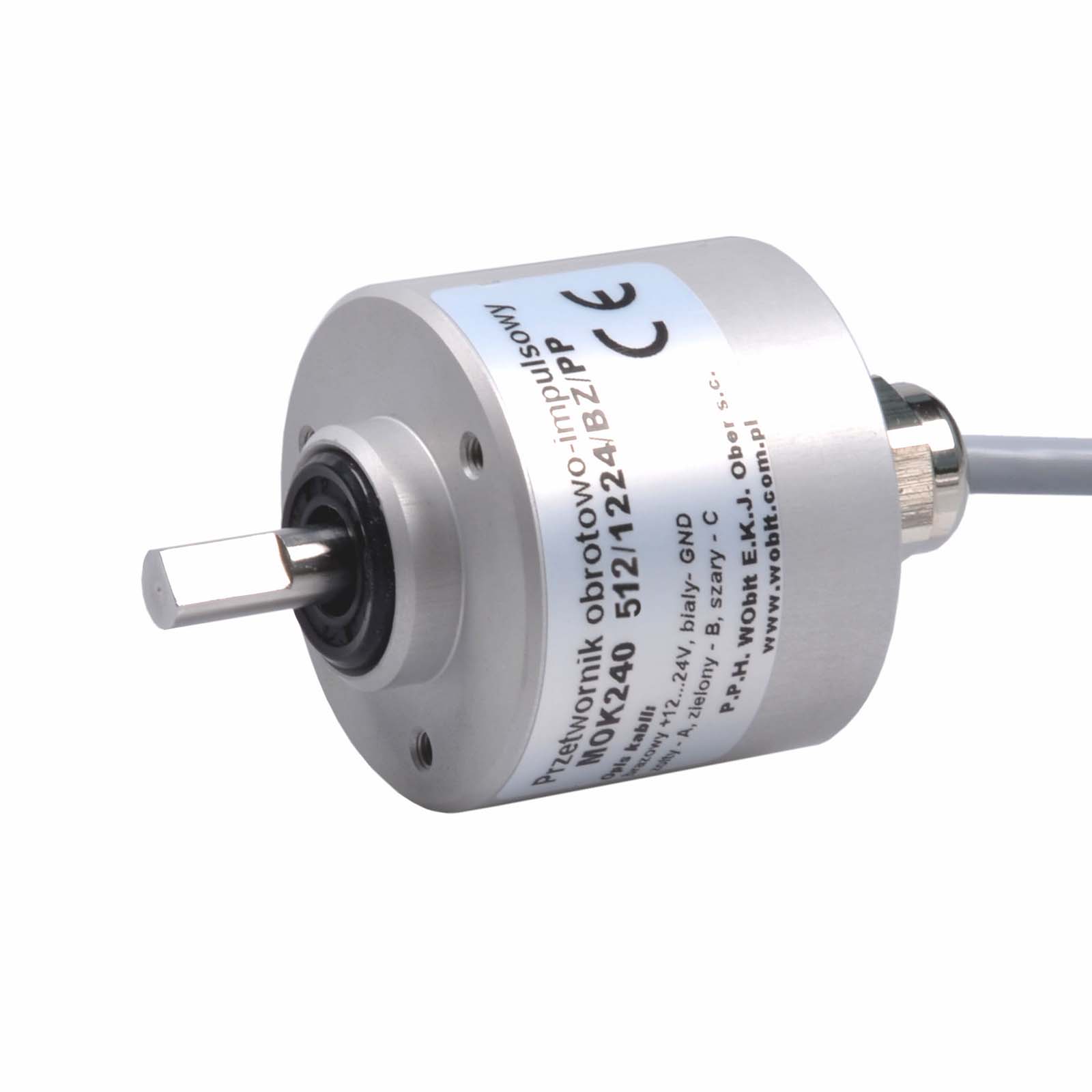

WObit – MOK240 – Codificador magnético incremental, 512 impulsos

€78,26 Sin IVA

El artículo estará listo para enviar en 1-2 días hábiles
  Hacer una pregunta
Company
WObit E J Ober sc
Polonia
SKU: MOK240-512-1224-BZ-PP Categoría: Etiqueta:

venta al consumidor



garantía

12

Comparte este producto con tus amigos:

Descripción

WObit – MOK240 – Codificador magnético incremental, 512 impulsos

El codificador magnético de impulsos rotativos WObit MOK240-512-1224-BZ-PP tiene una resolución de 512 impulsos/revolución, y es con salida de colector abierto.

Alimentación: 12…24 VDC ±5% y la clase de protección es: IP64

El codificador tiene un diámetro de 40 mm y un eje de 6 mm.

Medidas del encoder WObit MOK240 indicadas en el dibujo

Estándares



Especificación

Peso 0,1 kg
Marca

WObit
Resolución

512 impulsos
Alimentación

12…24 VDC ± 5% para OC y PP, 5 VDC ± 5% para N
Consumo actual

50 mA (30 mA para N)
Salidas

A, B, C rectangular (y negaciones para N)
Electrónica de salida

Colector abierto, push-pull o transmisor de línea
Corriente de salida

40 mA
Frecuencia crítica

250 KHz
longitud del cable

1,5 m
Diámetro

40 mm
Diámetro del eje

6 mm
Clase de protección

IP64, (IP65 cuando se utiliza el anillo de cocción a fuego lento suministrado por separado)
Velocidad máxima

6000 rpm
Temperatura de funcionamiento

-20°C … +70°C
Temperatura de almacenamiento

-40°C …+105°C
