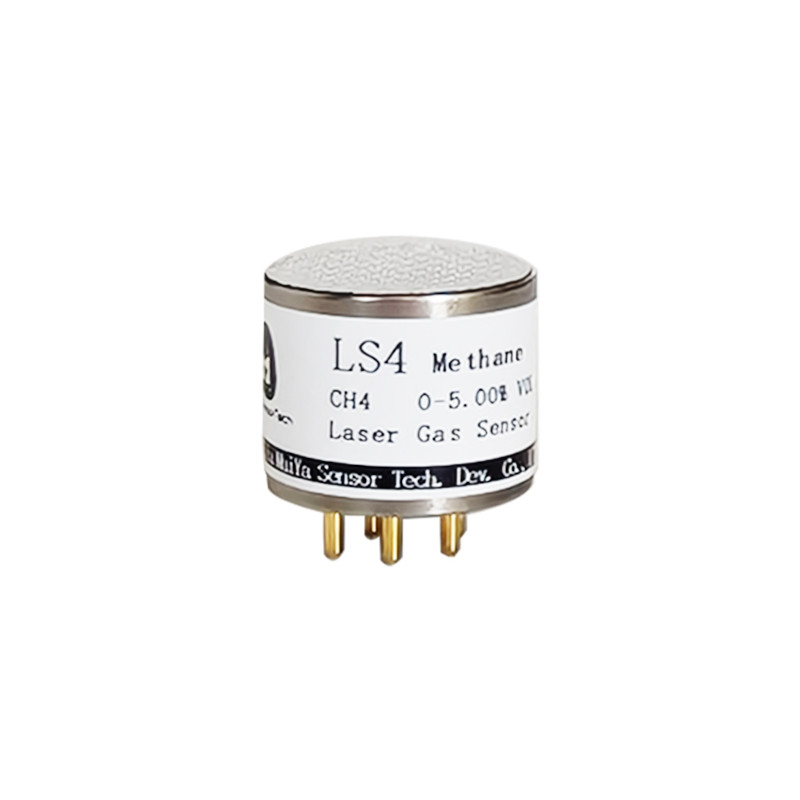

Sensor de metano a laser MAIYA MST LS4 CH4, deteção de gás por TDLAS, 5000 ppm, aço inoxidável com classificação IP65.

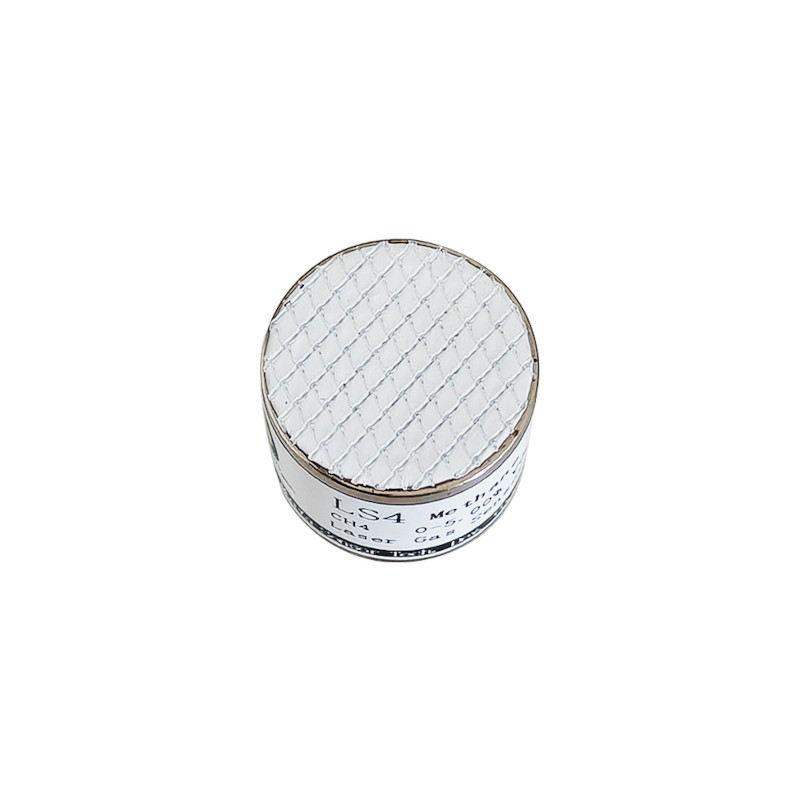

MAIYA • MST LS4 CH4, Sensor de metano a laser, 5000 ppm - Image 2

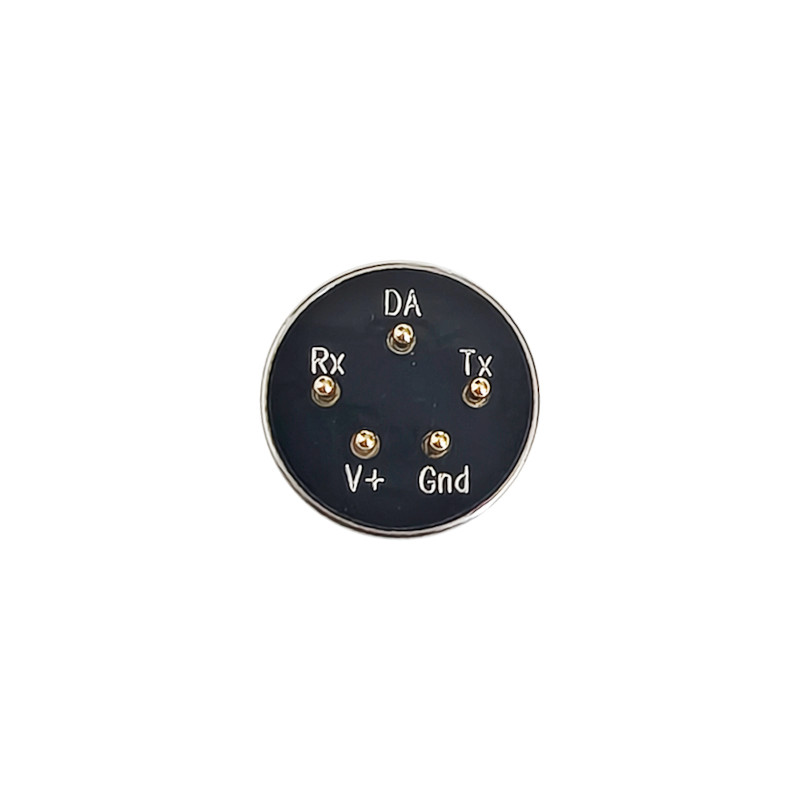

MAIYA • MST LS4 CH4, Sensor de metano a laser, 5000 ppm - Image 3

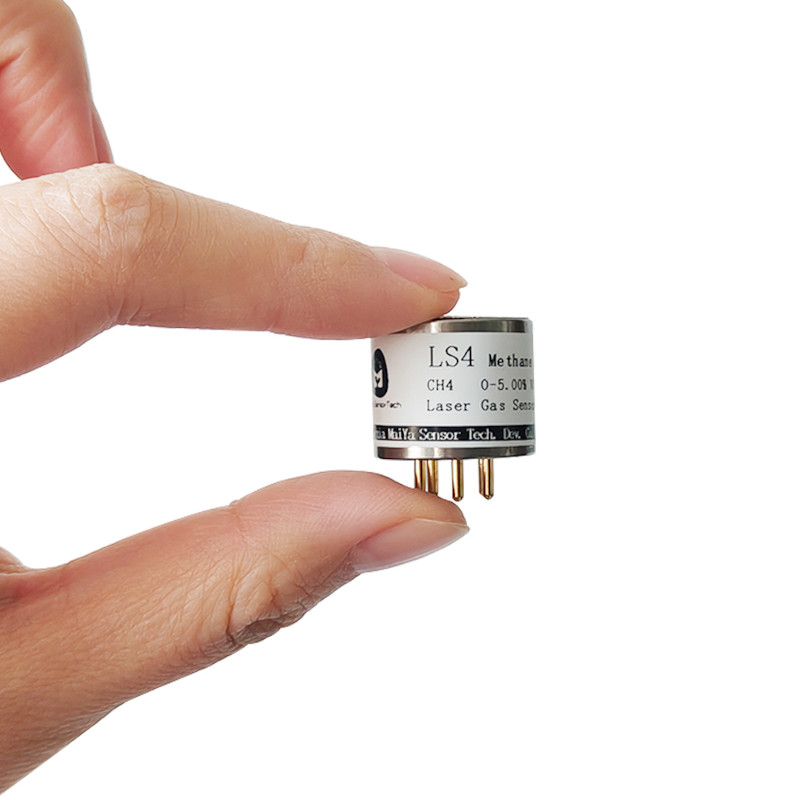

MAIYA • MST LS4 CH4, Sensor de metano a laser, 5000 ppm - Image 4

MAIYA • MST LS4 CH4, Sensor de metano a laser, 5000 ppm

€187,00 sem IVA

MEMIDOS Proteção do Pagamento

Vendedor:  Ningxia MAIYA SENSOR Technology Development
<span class="sku_wrapper">China</span> China
Condições de entrega: DDU
O artigo será enviado em 1-2 semanas
  Faça uma pergunta
REF: MST-LS4-CH4 Categoria:

Venda ao consumidor



garantia

12

Partilhe este produto com os seus amigos:

Descrição

MAIYA • MST LS4 CH4, Sensor de metano a laser, 5000 ppm

O MAIYA LS4 CH4, um sensor de metano a laser, é um componente profissional de deteção de gás destinado à deteção de metano através da tecnologia TDLAS. Oferece elevada sensibilidade, desempenho estável, baixo consumo de energia e uma longa vida útil, tudo num invólucro compacto em aço inoxidável 304. Com amostragem por difusão, resposta rápida e proteção IP65, é adequado para integração em sistemas industriais de deteção de gases e outras aplicações profissionais que exijam uma monitorização fiável do metano.

Especificações básicas

  • Gás de deteção: CH₄
  • Intervalo de medição: 0 a 1 % VOL (10 000 ppm), 0 a 5 % VOL, 0 a 100 % VOL
  • Precisão: ±0,03 % VOL entre 0 e 1 % VOL, ±5 % do valor real entre 1 % e 100 % VOL
  • Resolução: 0,01 % VOL
  • Tempo de resposta: ≤ 20 s
  • Princípio: TDLAS
  • Método de amostragem: difusão
  • Tensão de funcionamento: 3 V a 5,5 V
  • Corrente média de funcionamento: < 100 mA
  • Saída: porta série TTL e sinal analógico de 0,4 V a 2 V
  • Material do invólucro: aço inoxidável 304
  • Nível de proteção: IP65
  • Temperatura de funcionamento: -5 °C a +55 °C
  • Humidade de funcionamento: < 98 % HR, sem condensação
  • Pressão de funcionamento: 86 kPa a 106 kPa
  • Dimensões: Φ20 mm x 16,6 mm
  • Peso: 17 g
  • Vida útil típica: > 5 anos

Consulte a ficha técnica completa: Ficha técnica_MST-LS4-CH4

Padrões



Especificação

Peso de transporte (kg) 0,5 kg
Dimensões de transporte (mm) 200 × 150 × 100 mm
Marca

Country of Origin

CN
Tariff number (HS code)

902710090
Tamanho

20 × 20 × 16 mm
Peso

17 g
Material da Concha

Aço inoxidável 304

Venda ao consumidor



garantia

12

Padrões
