Sensor de gás óxido nitroso MAIYA MST N4L N2O NDIR, 5 % vol, saída TTL para monitorização de gases industriais.

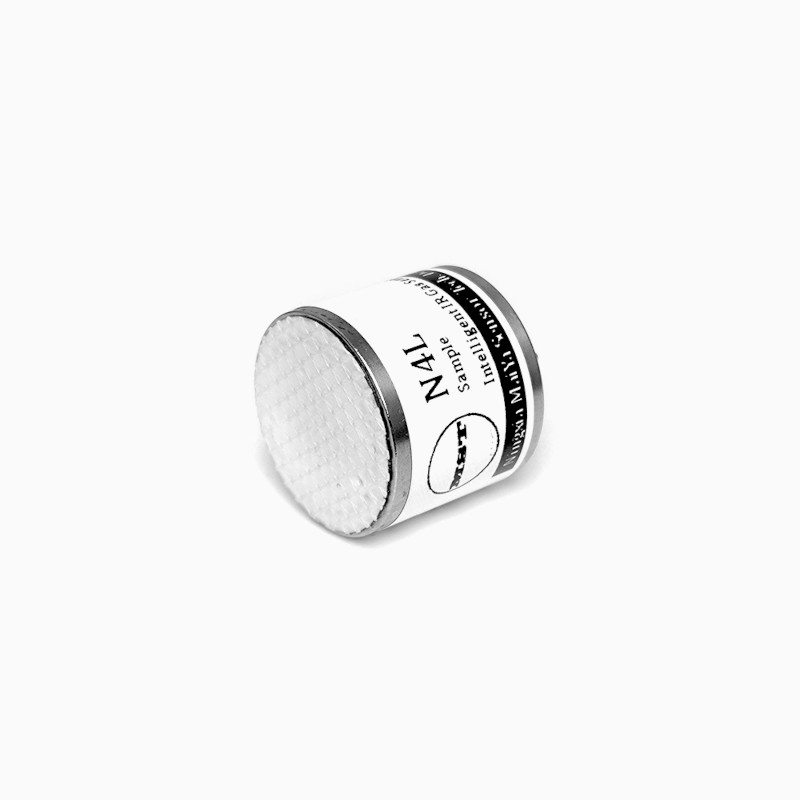

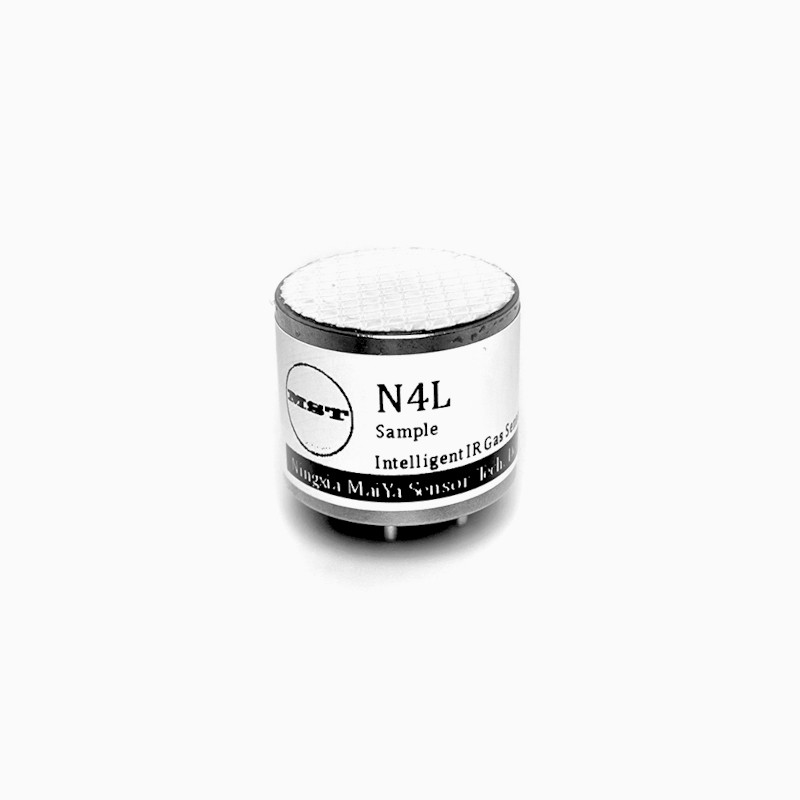

MAIYA • MST N4L N2O NDIR, sensor de óxido nitroso, 5 % vol - Image 2

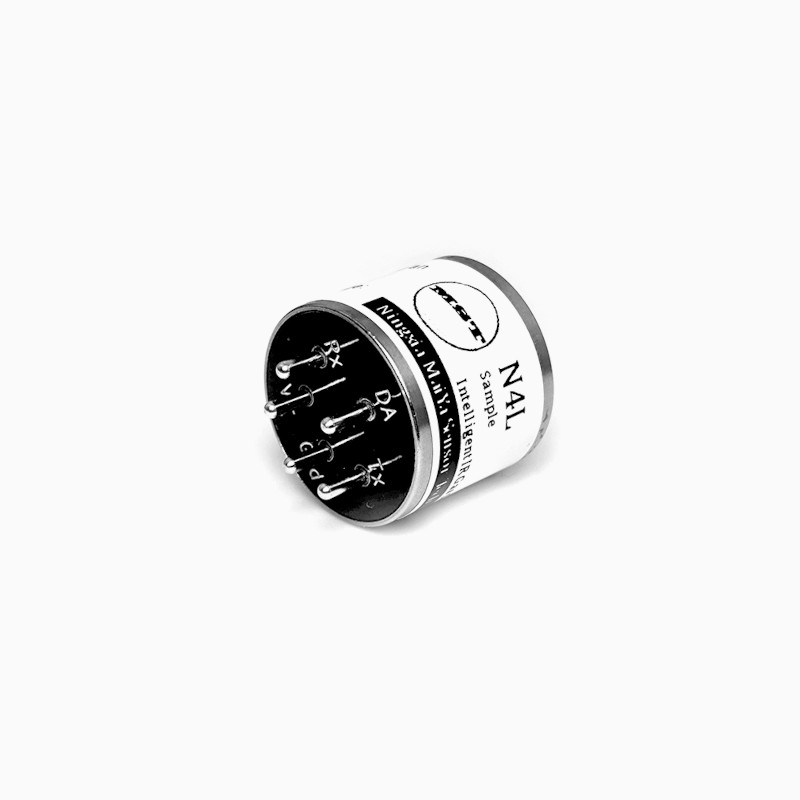

MAIYA • MST N4L N2O NDIR, sensor de óxido nitroso, 5 % vol - Image 3

MAIYA • MST N4L N2O NDIR, sensor de óxido nitroso, 5 % vol

€94,00 sem IVA

MEMIDOS Proteção do Pagamento

Vendedor:  Ningxia MAIYA SENSOR Technology Development
<span class="sku_wrapper">China</span> China
Condições de entrega: DDU
O artigo será enviado em 1-2 semanas
  Faça uma pergunta
REF: MST-N4L-N2O Categoria:

Venda ao consumidor



garantia

12

Partilhe este produto com os seus amigos:

Descrição

MAIYA • MST N4L N2O NDIR, sensor de óxido nitroso, 5 % vol

O MAIYA MST N4L N2O é um sensor profissional de óxido nitroso baseado na tecnologia de infravermelhos não dispersivos (NDIR). Foi concebido para uma deteção estável de N₂O, com elevada seletividade, baixa interferência cruzada e independência em relação ao oxigénio. O sensor suporta uma ampla gama de medição e oferece uma resposta rápida, sendo adequado para utilização em equipamentos de monitorização de gases, sistemas analíticos e aplicações de segurança industrial. Com saída digital TTL e saída analógica de 0,4 a 2 V, este sensor compacto é fácil de integrar em novos projetos ou em projetos de substituição. Oferece um tempo de pré-aquecimento reduzido, baixo consumo de energia e uma longa vida útil, o que contribui para reduzir as necessidades de manutenção. Adequado para utilização profissional, apresenta um desempenho fiável numa ampla gama de temperaturas e humidade.

Especificações básicas

  • Gás de deteção: N₂O
  • Princípio de funcionamento: NDIR
  • Intervalo de medição: 5000 ppm, 0 a 5 %/100 % vol
  • Precisão: ±3 % FS
  • Resolução: 1 ppm / 0,01 % vol
  • Tempo de resposta (T90): inferior a 30 s (difusão livre)
  • Temperatura de funcionamento: -40 °C a 70 °C
  • Temperatura de armazenamento: -40 °C a 85 °C
  • Humidade de funcionamento: 0 a 95 % HR, sem condensação
  • Tempo de pré-aquecimento: 1 min
  • Saída digital: nível TTL
  • Saída analógica: 0,4 a 2 V
  • Tensão de alimentação: 3,0 a 5,5 VCC
  • Corrente de funcionamento: média inferior a 60 mA a 3,3 VCC
  • Consumo de energia: 0,2 W, em média
  • Vida útil: superior a 5 anos
  • Peso: 21 g

Consulte a ficha técnica completa: Ficha técnica_MST-N4L-N2O

Padrões



Especificação

Peso de transporte (kg) 0,5 kg
Dimensões de transporte (mm) 200 × 150 × 100 mm
Marca

Tariff number (HS code)

902710090
Tamanho

20 × 20 × 16 mm
Peso

21 g
Material da Concha

ABS, PC, TPE antiestático
