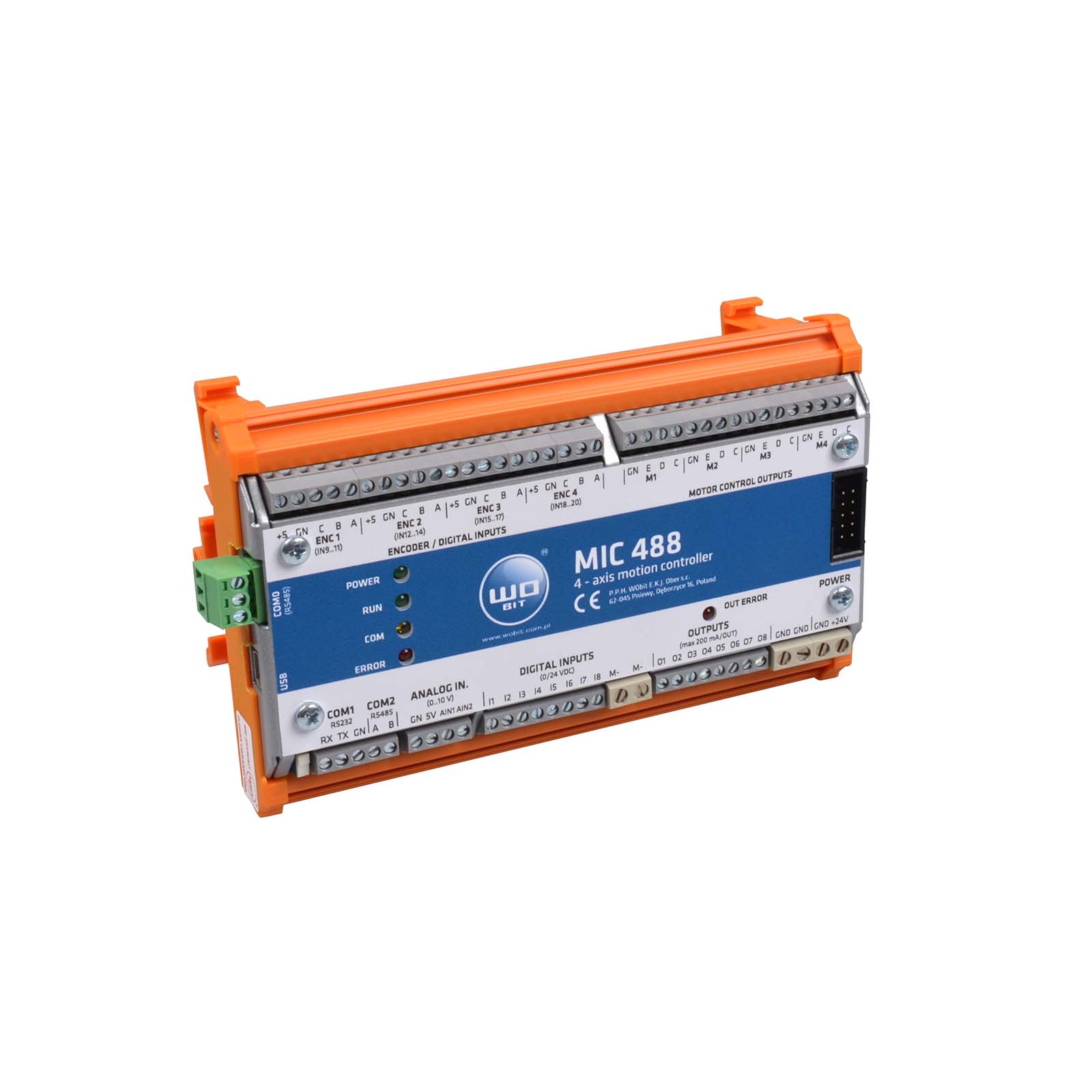

WObit MIC488 Programmable 4-axis driver terminal overview left

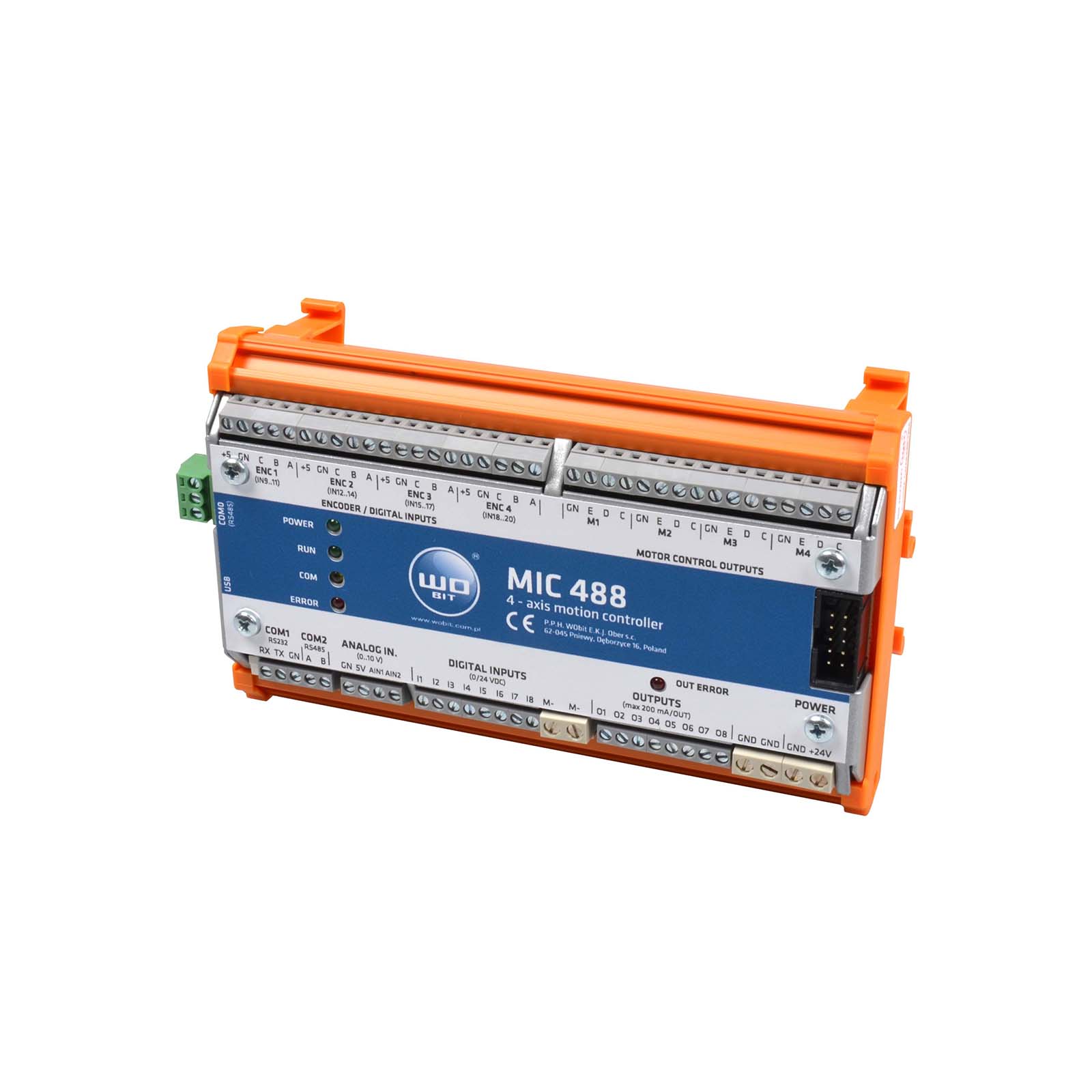

WObit MIC488 Programmable 4-axis driver terminal overview right

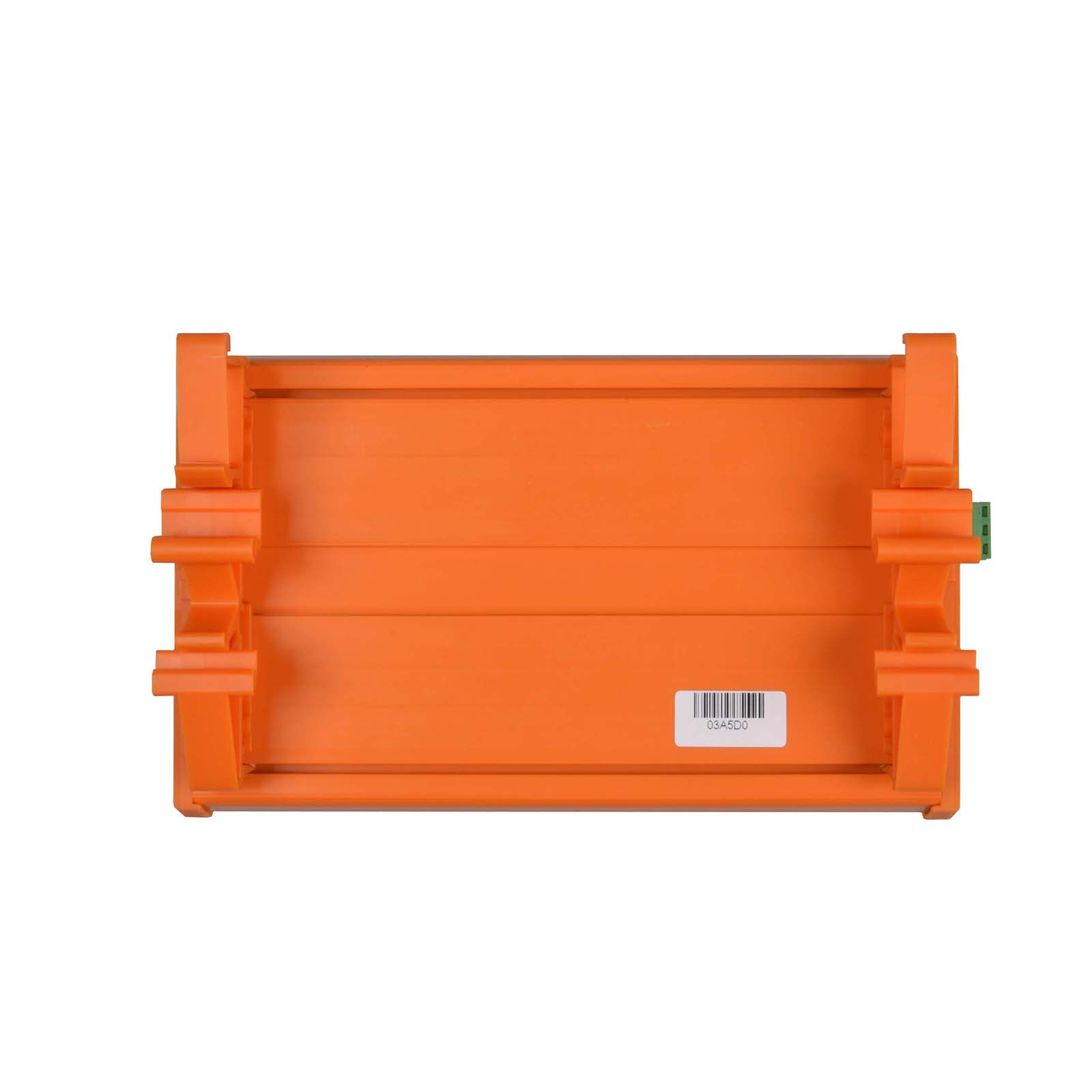

WObit MIC488 back view

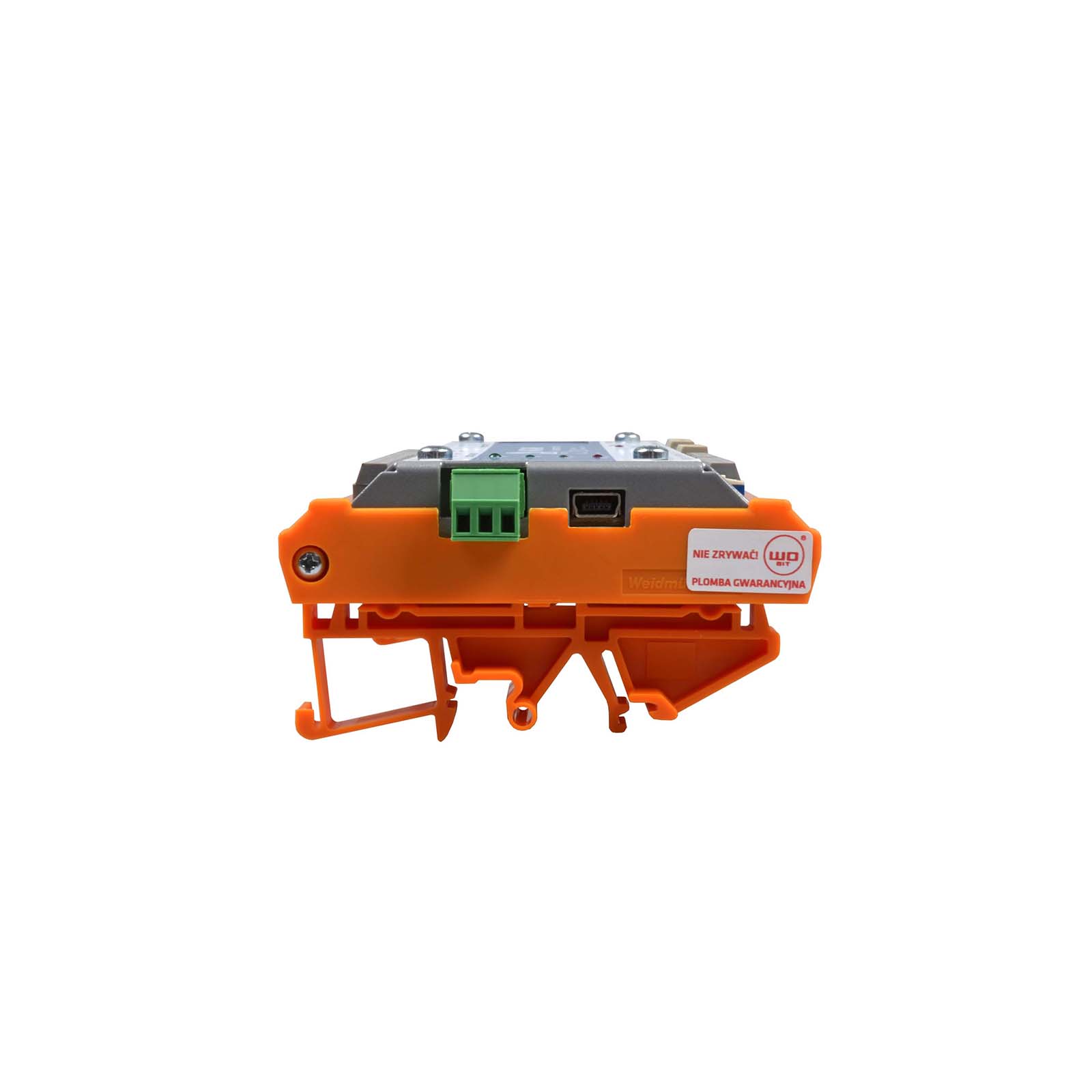

WObit MIC488 left view

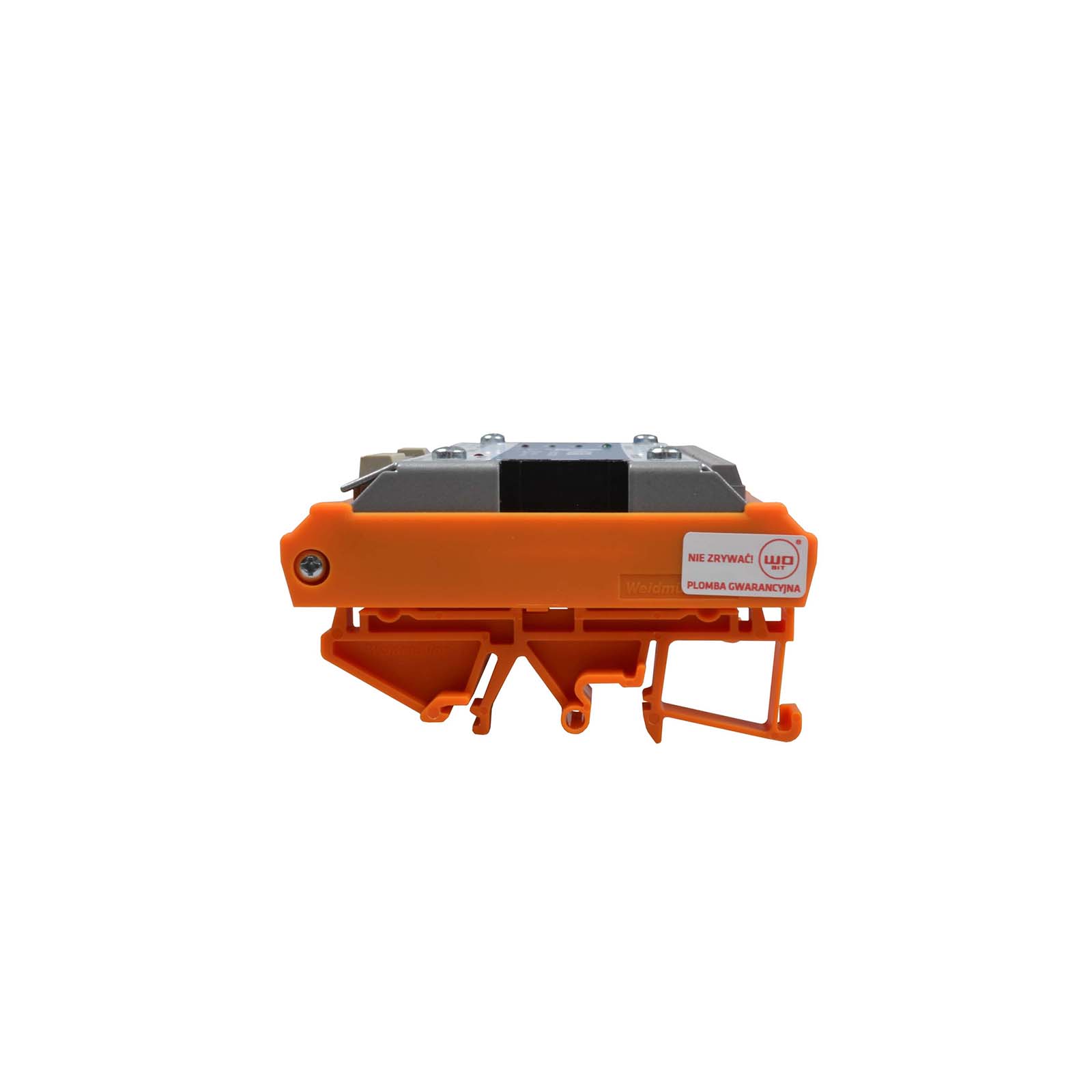

WObit MIC488 right view

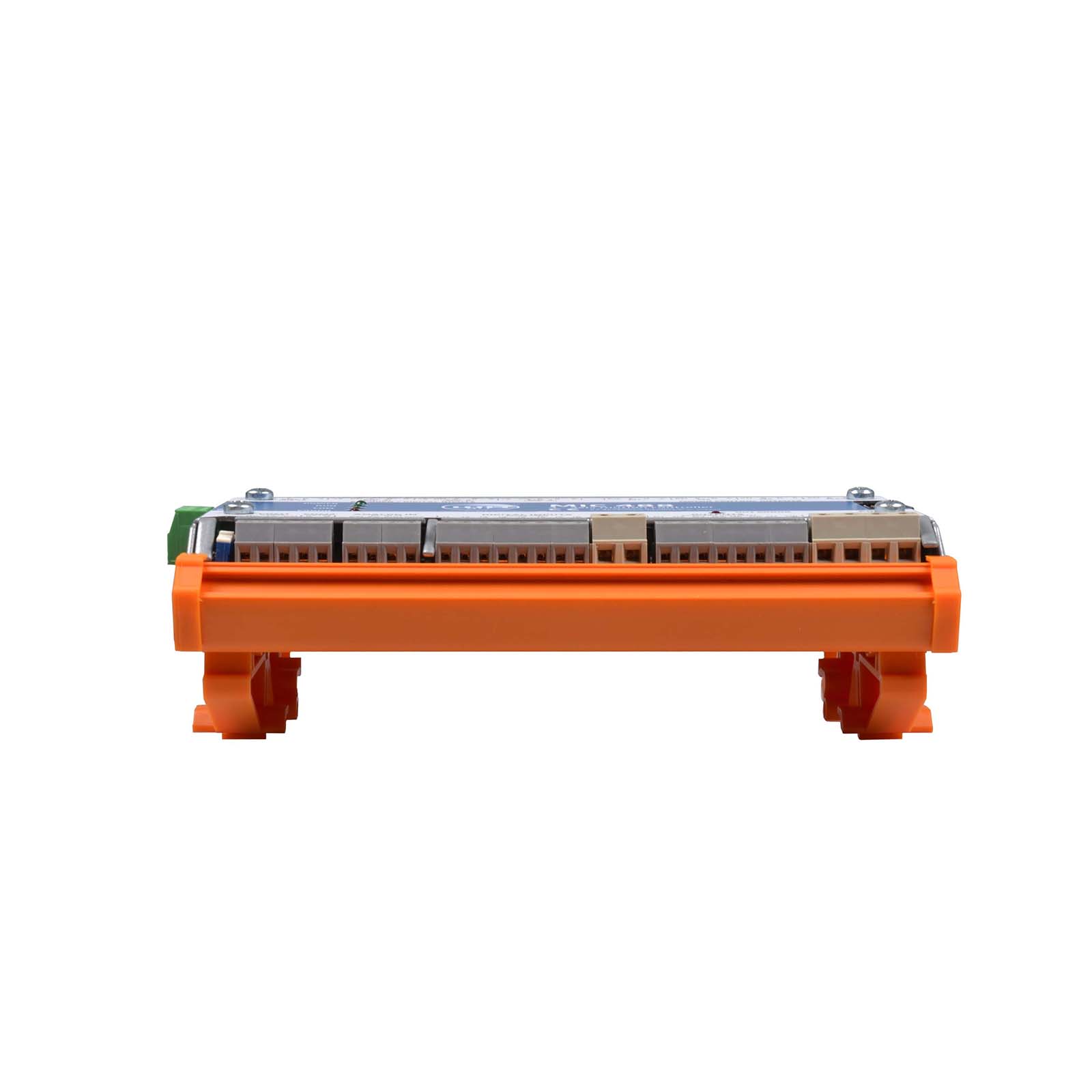

WObit MIC488 bottom view

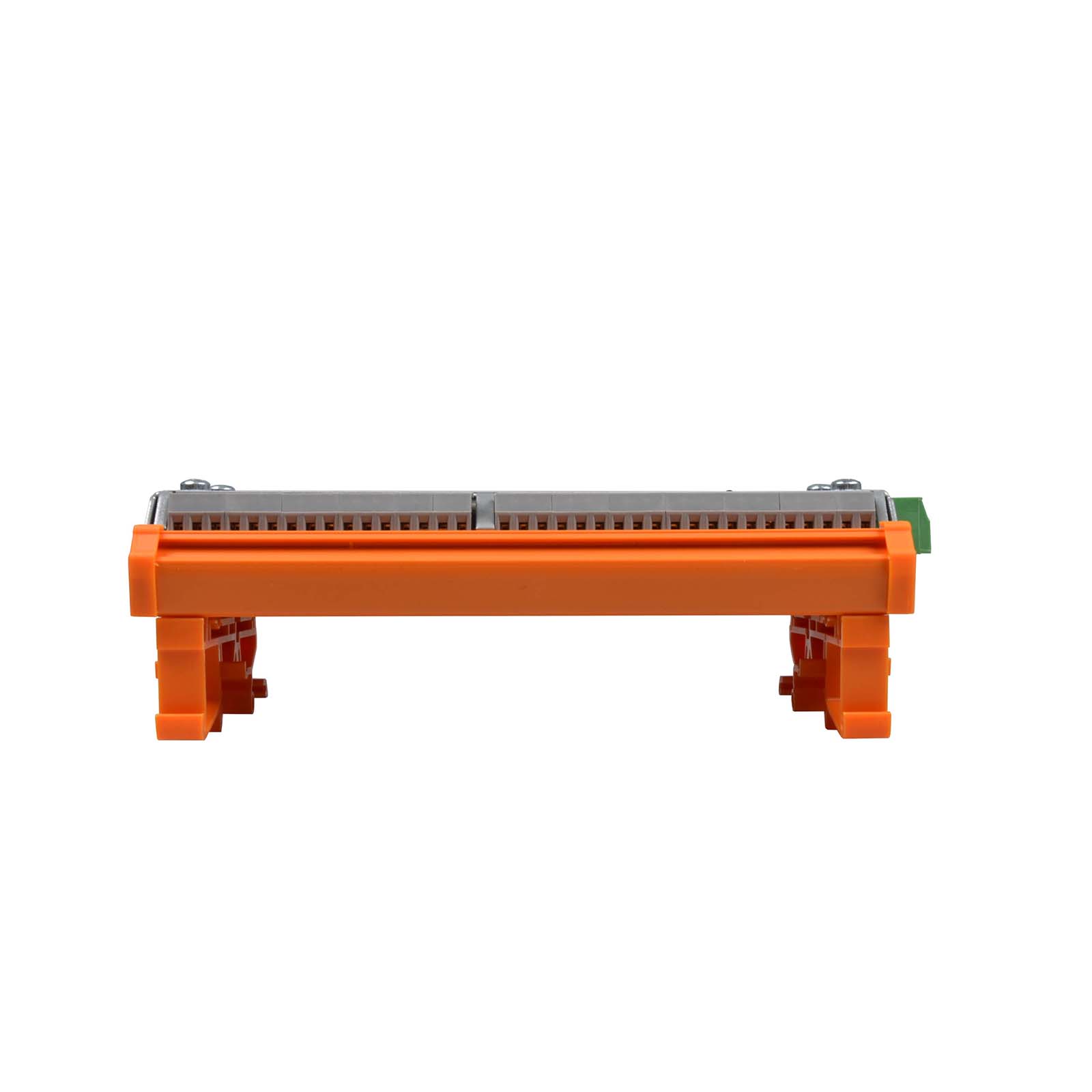

WObit MIC488 top view

WObit • MIC488 • Programmable 4-axis controller, 8 inputs, 8 outputs

€265,05 Excl. VAT

Item will be shipped in 1-2 business days
  Ask a Question
Company
WObit E J Ober sc
Poland
SKU: MIC488 Category: Tags: , ,

Consumer sale



Warranty

12

Share this product with your friends:

Description

WObit • MIC488 • Programmable 4-axis controller, 8 inputs, 8 outputs

WObit MIC488 is a programmable 4-axis motion controller equipped with 8 inputs, 8 outputs, 4 encoder inputs and a MODBUS-RTU interface.

The MIC488 programmable 4-axis controller can control up to 4 stepper motor drives or servo motor drives in STEP/DIRECTION mode. The controller also allows you to connect incremental encoders for master position control.

In addition to the universal inputs / outputs and two 0-10V inputs, there are also communication ports (RS232, RS485) that work in the MODBUS protocol (slave), allowing communication with, for example, HMI panels. Dedicated software allows you to easily configure the trajectory of drive movements and create programs controlling drives, outputs and reacting to input states or the value of communication variables. The creation of motion programmes takes place in an intuitive environment via text commands.

MIC488 can replace a traditional programmable controller (PLC) wherever precise control of several drives is required.

Features:

  • Trajectory controller designed to work with up to 4 drives
  • Dedicated software for diagnosis and programming
  • Control signals STEP, DIRECTION, ENABLE (control of a servo drive or stepper motor controller)
  • Option of connection up to 4 incremental encoders for master position control
  • 8 universal inputs, 8 universal outputs
  • 2 universal analog inputs 0…10 V
  • Communication interfaces: USB, RS232, RS485 (Modbus-RTU Master and Slave)

Standards



Specification

Weight 0,2 kg
Brand

WObit
Power Supply (voltage)

24…75 VDC
Current consumption

100 mA@12 V, 50 mA@24 V
Outputs for controlling drives

4 (STEP, DIRECTION, ENABLE)
Controlling outputs of (EN, DIR, CLK) M1..M4 drives

High state 5 V, low state 0 V
Max. load 20 mA/output
Inputs IN1..IN8

Opt insulated
Low state: <2 V, high state: +4…+24 V DC
Min. pulse length: 20ms
Inputs IN9..IN20

Low state: <2 V, high state: +3..24 V DC
Possibility of connection incremental encoders
Outputs OUT1.. OUT8

Transistor OC PNP type, max. 200mA / output
Communication

COM0: RS485 (opt insulated),
Communication protocol: internal for communication with PC
Baudrate: 57600
COM1: RS232
COM2: RS485
Communication protocol: MODBUS-RTU SLAVE
Stop bits: 1
Parity: none
Baudrate: 9600, 19200, 38400, 57600, 115200
USB: 1.1, 2.0 (HID)
Device memory

Programme: 1 x 4000 commands
Positions: 8 x 200 positions
User memory with access via Modbus: 2000 words
User memory write to non-volatile memory: 1000 words
Operating temperature

5°C… 50°C
IP Class

IP20
Size

Height: 51 mm
Width: 86,4 mm
Length: 140 mm
