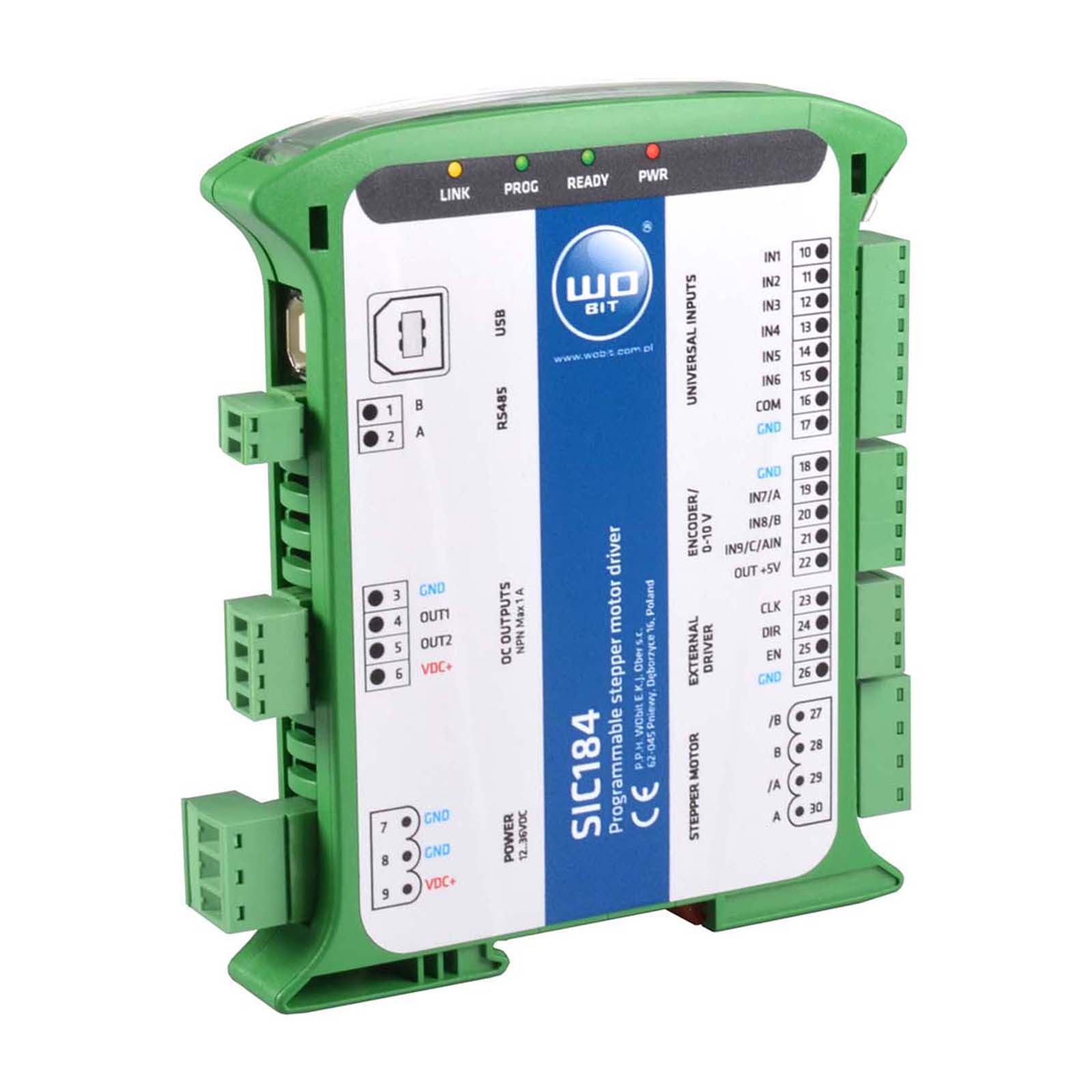

WObit SIC184 Programmable stepper motor controller with built-in indexer

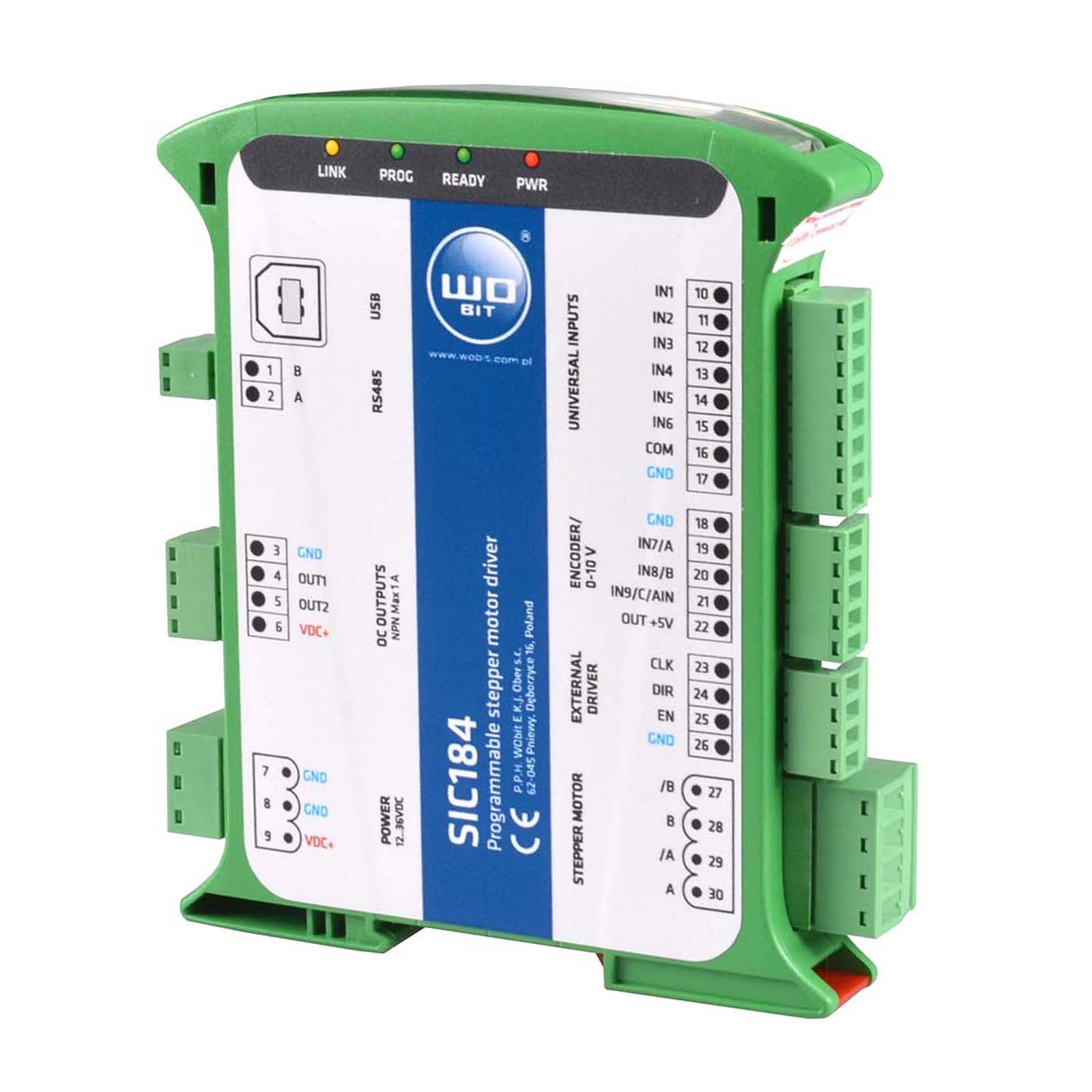

WObit SIC184 Programmable stepper motor driver

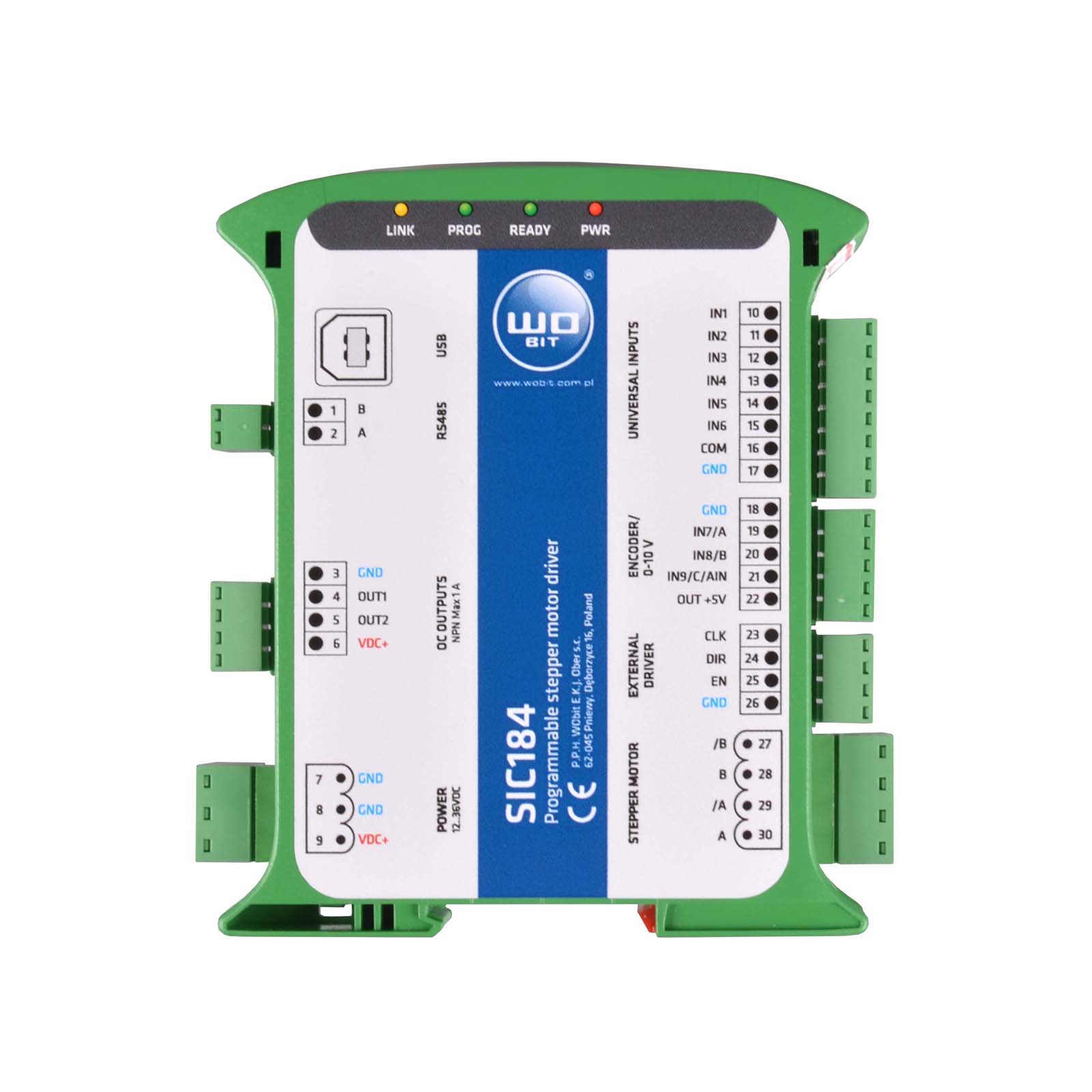

WObit SIC184 Programmable stepper motor controller. Terminal overview

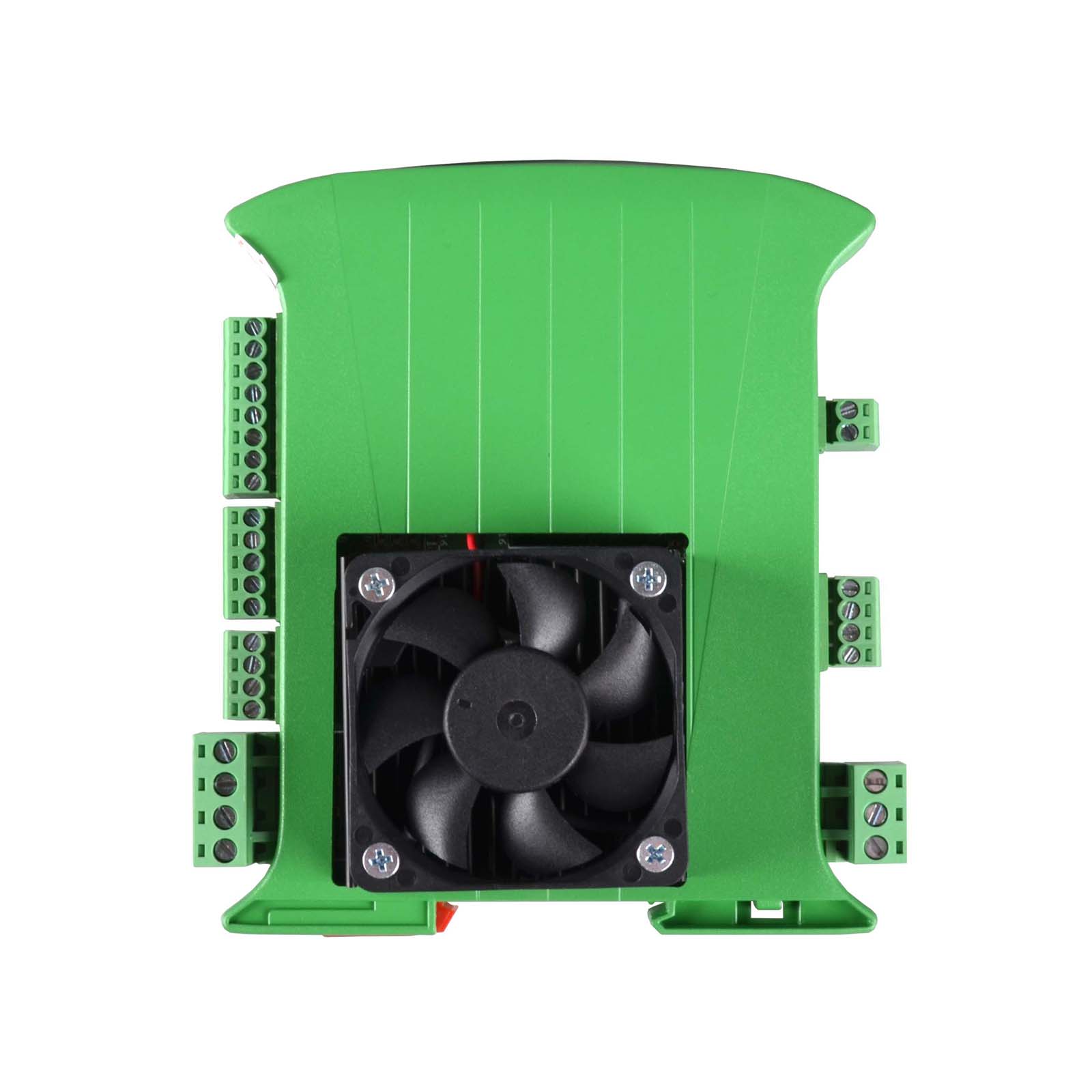

WObit SIC184 Stepper motor controller fan

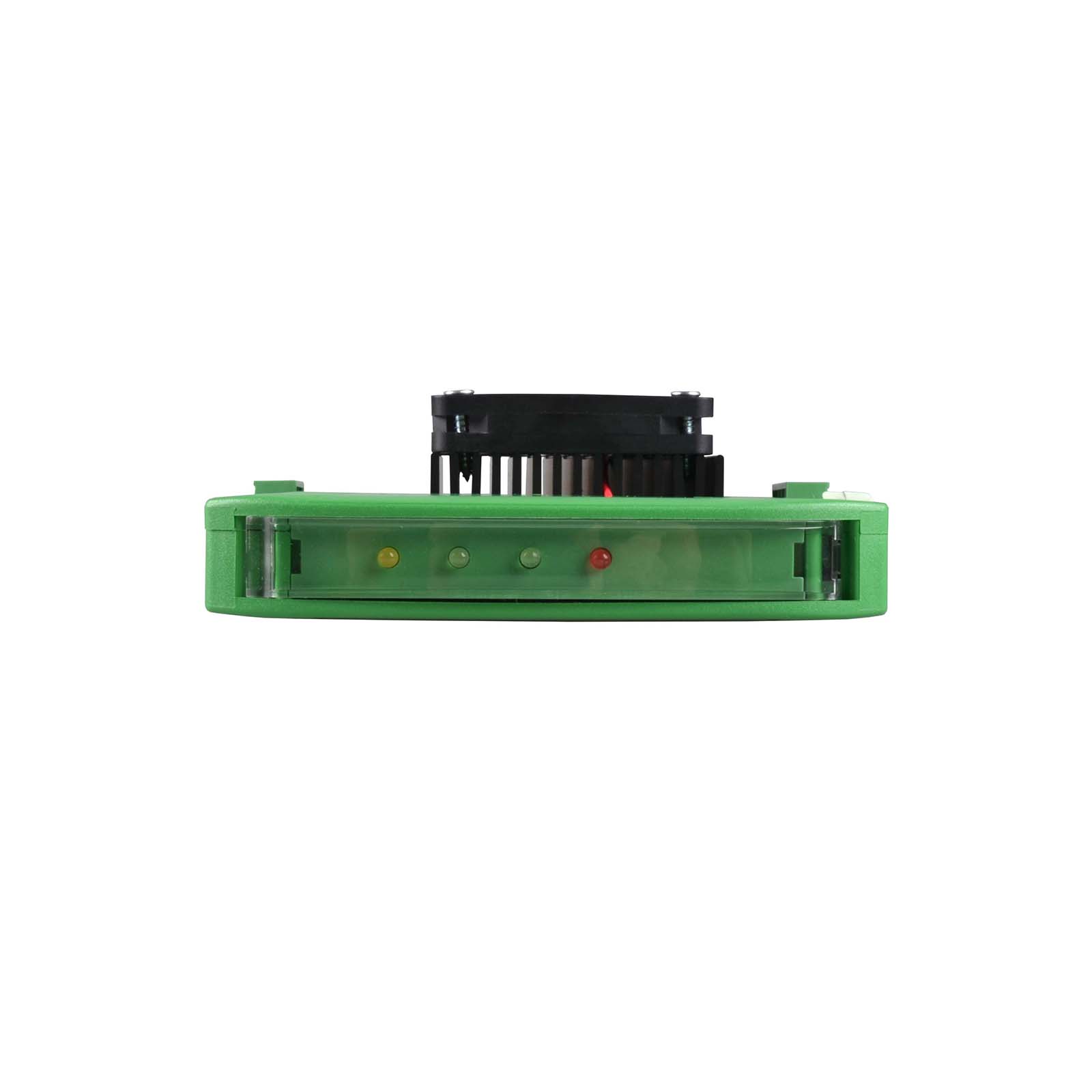

WObit SIC184 Stepper motor controller LED display

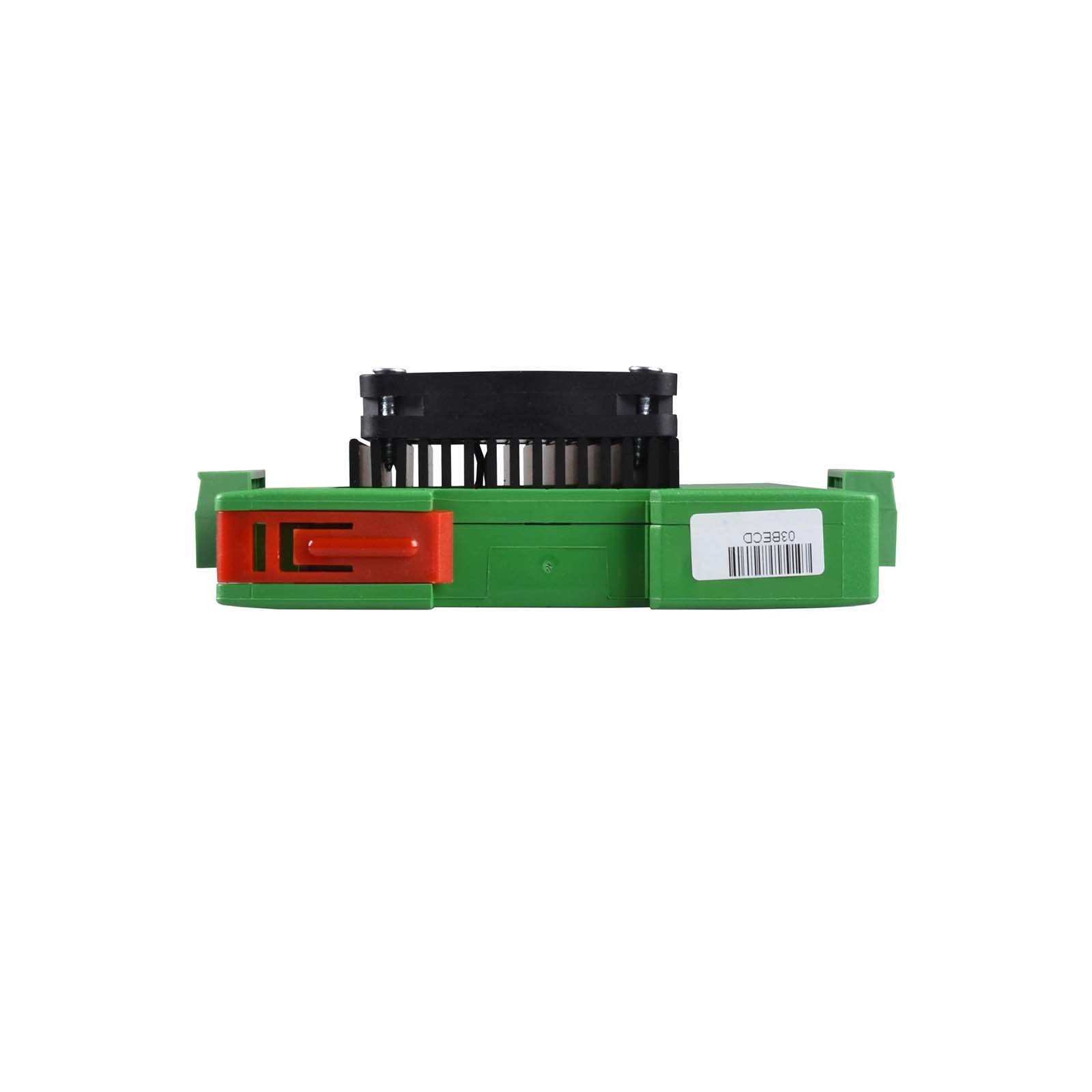

WObit SIC184 Stepper motor controller for DIN rail

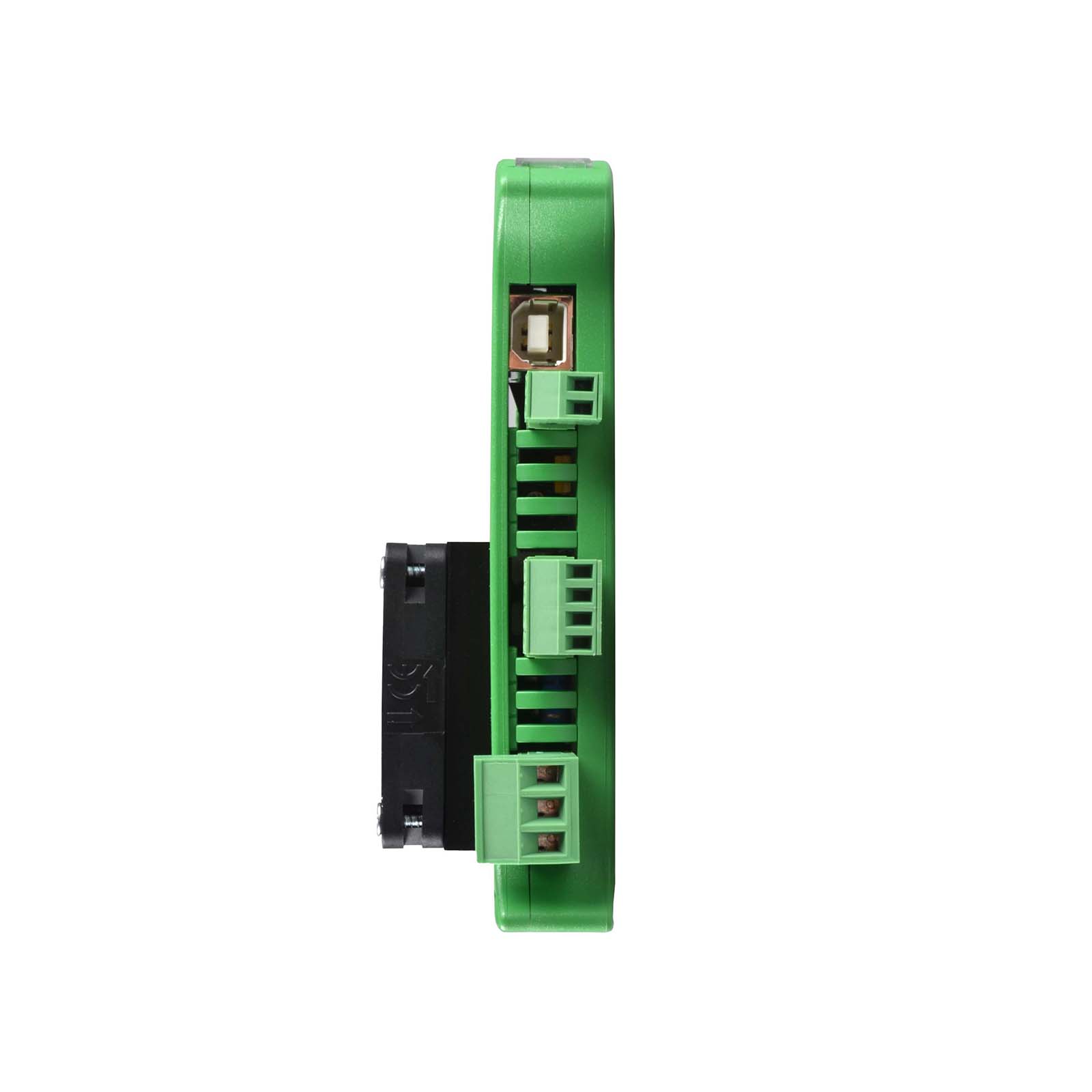

WObit SIC184 Stepper motor controller - terminals right

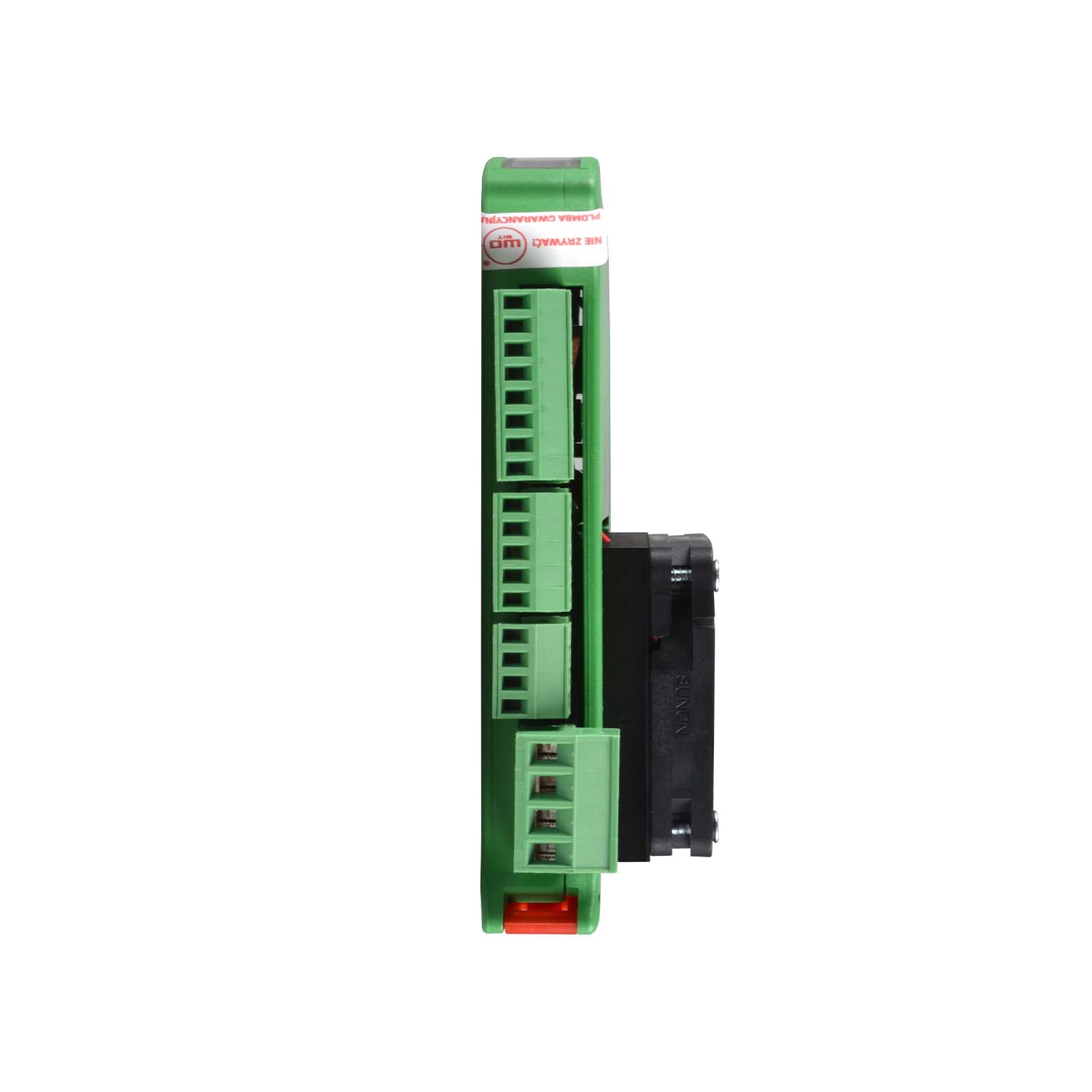

WObit SIC184 Stepper motor controller - terminals left

WObit • SIC184v2 • Programmable stepper motor controller with built-in indexer

€206.61 Excl. VAT

MEMIDOS Payment Protection

Delivery Terms: DDU
Item will be shipped in 1-2 business days
  Ask a Question
Company
P.P.H. WObit E.K. Ober s.c.
Poland
SKU: SIC184 Category: Tags: , ,

Consumer sale



Warranty

12

Share this product with your friends:

Description

WObit • SIC184v2 • Programmable stepper motor controller with built-in indexer

WObit SIC184 is a programmable stepper motor servo controller with a control current of up to 4 A. It is equipped with a power amplifier and a trajectory generator, enabling precise determination of the position, speed and  acceleration of the motor.

The programmed controller can execute a program consisting of 1000 commands. The controller can work with an incremental encoder, which allows for even greater control of the position of the stepper motor.

SIC184 programmable stepper motor servo controller is equipped with universal inputs and outputs and a 0-10 V analog input. This allows you to completely eliminate the PLC controller in some applications.

Recommended power supply:  WObit ZN200-l

Features:

  • Driver for stepper motors with a current of up to 4 A
  • Built-in trajectory generator (possibility to set speed, acceleration and position)
  • Possibility of motion programming (6 memory banks with 1000 commands each) in a plain text language (WBL)
  • Interface for incremental encoder
  • 1 analog input 0-10V
  • 9 universal inputs (including 3 for the encoder)
  • 2 transistor outputs
  • USB interface for controller configuration, diagnostics and programming
  • RS485 MODBUS-RTU interface for communication with PLCs/HMI panels, etc.

The free SIC-KONFIGURATOR software is used to configure and program the controller. The software has, among others: a tool that allows you to quickly and easily configure the drive used.

Standards



Specification

Weight 0.2 kg
Brand

WObit
Power Supply (voltage)

12…36 VDC
Motor phase current

0,2…4 A/ Phase
Step resolution

1/2…1/64
Outputs

2 x Transistor, NPN type (OC)
Max. 1 A /30 VDC
Inputs

6 x opto-isolated (2 dedicated)
Low state: <1 V
High status: 5…24 VDC
Output external controller

Standard 5V
Max. frequency: 38 Khz, pulse width: 20 us
Encoder input

Signals A,B: low state <1V, high state 3-24V.
Max. input frequency: 50 Khz
Programme memory

300 commands
Communication

RS485: MODBUS-RTU
USB: 1.1 2.0 + free software application
Cooling

Fan
Operating temperature

0…50 °C
Mounting

DIN rail mount
Size

Dimensions: 101 x 43 x 120 mm
