Gunnebo GrabiQ master link Type MT Grade 10, ideal for Grade 80/100 chain slings and wire rope slings.
High-quality Gunnebo GrabiQ master link, Type MT, Grade 10, designed for superior strength and reliability.

Gunnebo • GrabiQ master link / oval ring • Type MT, Grade 10

Price range: €86.17 through €861.74 Excl. VAT

MEMIDOS Payment Protection

Delivery terms: DDU
Item will be shipped in 1-2 business days
  Ask a Question
Company
Fyns Kran Udstyr A/S
Denmark
SKU: 1202000000 Category:

Consumer sale



Warranty

24

Share this product with your friends:

Description

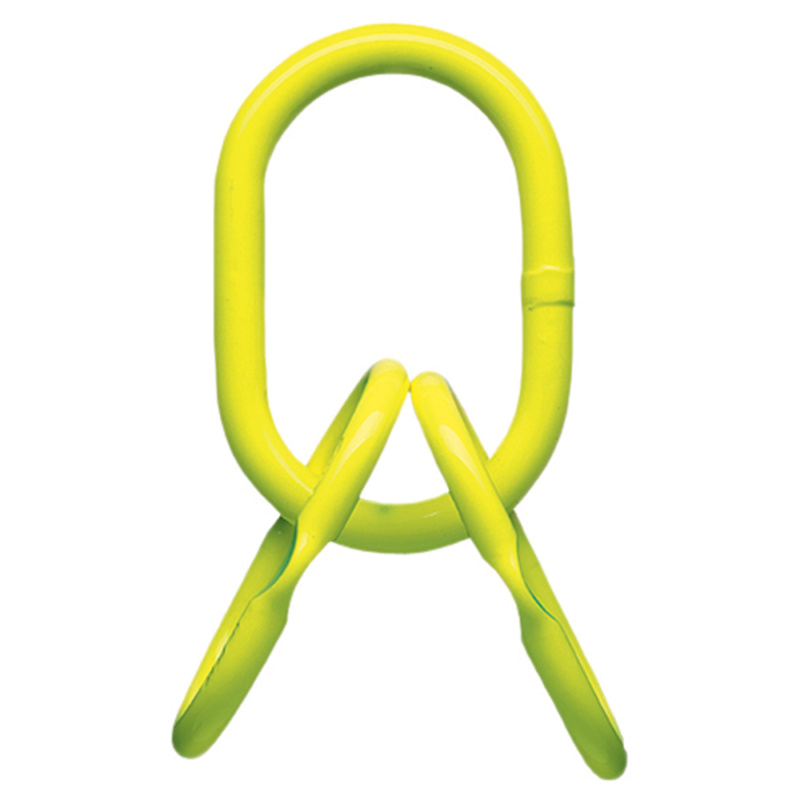

Gunnebo • GrabiQ master link / oval ring • Type MT, Grade 10

  • Primary master link is extra-wide to allow a better fit on large crane hooks
  • Secondary (aka bottom) links are oversized to accommodate multiple fittings without excessive crowding
  • Ideal for use with Grade 80 / 100 chain slings, also great for wire rope slings
  • Individually proof-tested at 2 times the working wlad limit
  • Heat number identification allows full product traceability

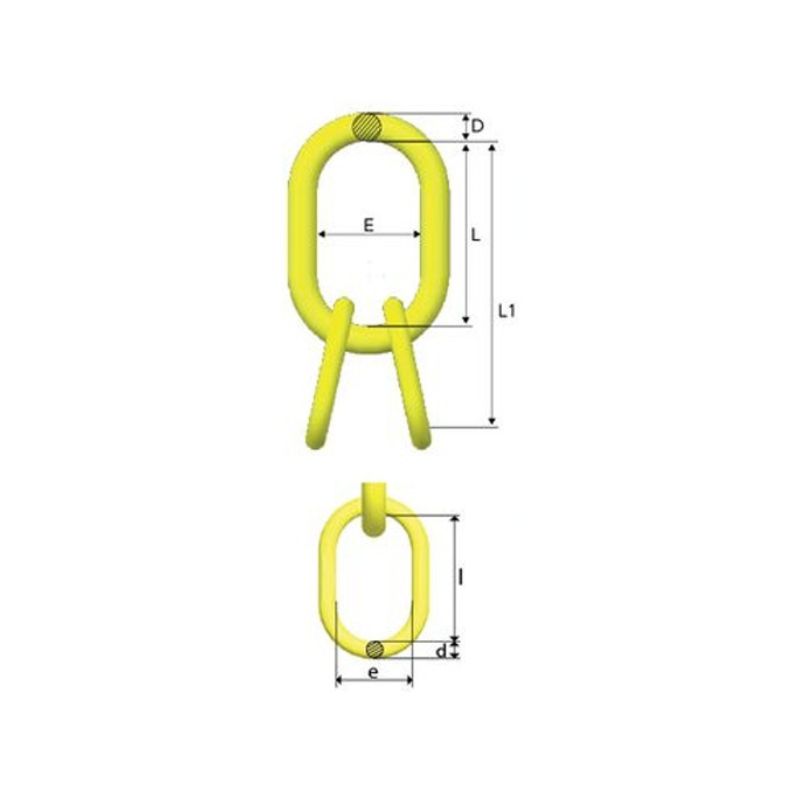

Size table

SKU MPN Code WLL (t) EN 1677-4 WLL (t) A-952/A952M
AS 3775,2-2014		 L1 (mm) L (mm) E( mm) D (mm) I (mm) e (mm) d (mm) Weight (kg)
1202003500 Z100091 MT-6-10 3.5 5 285 160 90 19 120 60 13 2.0
1202005200 Z100903 MT-8-10 5.2 8 300 160 95 22 140 80 17 3.0
1202011500 Z100904 MT-10-10 11.5 16 360 200 120 30 160 95 19 6.4
1202017000 Z100905 MT-13-10 17 26 440 250 150 40 190 110 22 14.2
1202028000 Z100906 MT-16-10 28 35 500 300 200 50 200 120 28 23.0
1202035000 Z101074 MT-20-10 35 50 550 300 200 55 250 150 32 31.5

Standards


EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015

Specification

Shipping weight (kg) N/A
Brand

Gunnebo
Color

Size (WLL) EN 1677-4

3.5 t, 5.0 t, 11.7 t, 17.0 t, 28.0 t, 35.0 t
Material

High strengh steel
Classification

Grade 10
Safety factor

5:1

Consumer sale



Warranty

24

Standards


EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015
