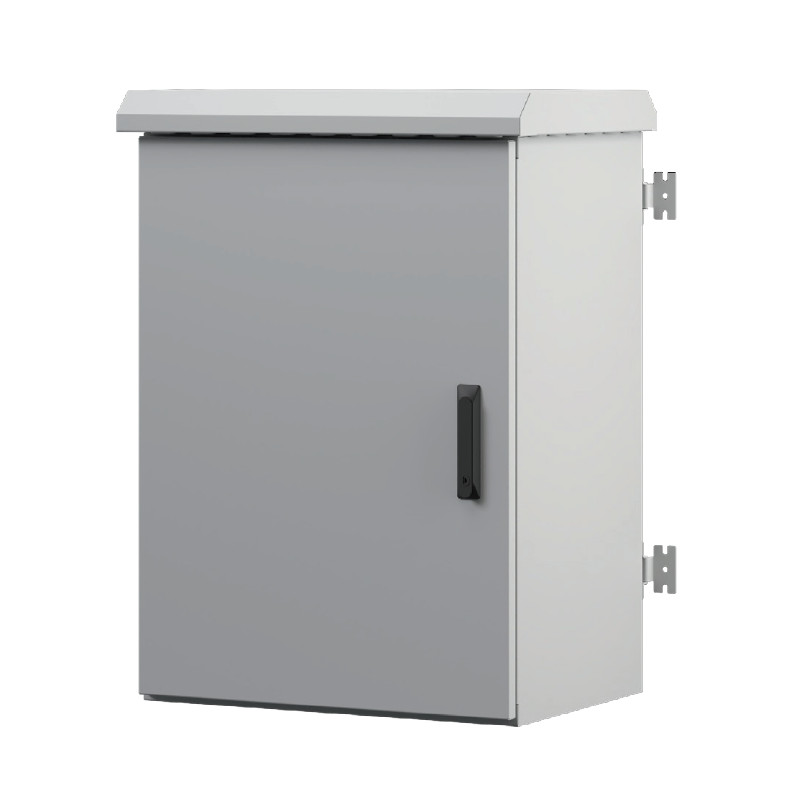

Upcom outdoor rack cabinet for wall installation, single layer IP66, 600x450

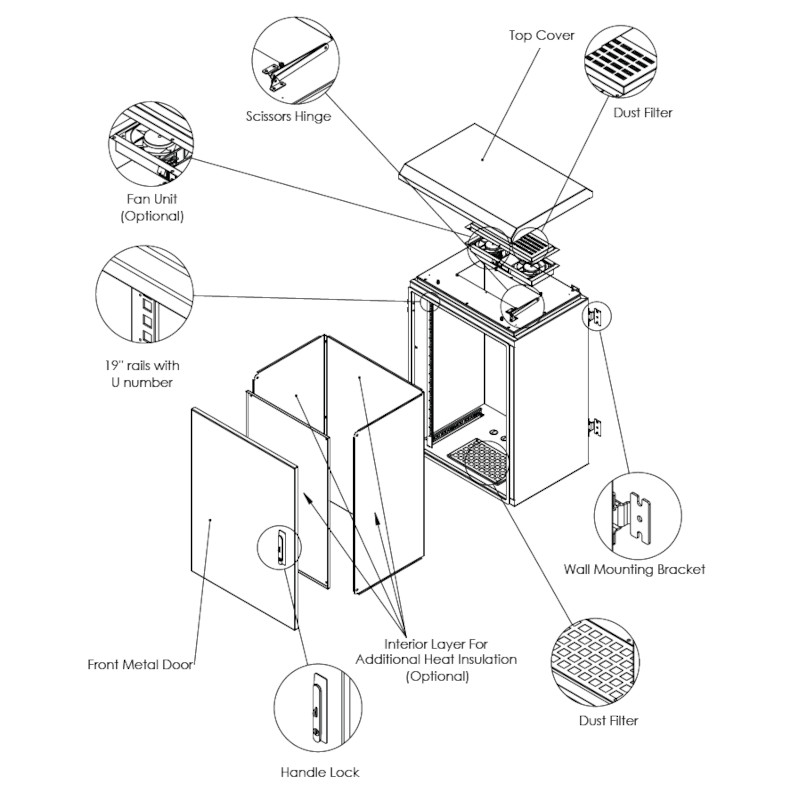

Upcom outdoor rack cabinet for wall installation, single layer, IP66, 600x450, exploded view, extra details

Upcom • Outdoor rack cabinet for wall installation • Single layer, IP66, 600×450

€382.21 – €519.99 Excl. VAT

MEMIDOS Payment Protection

Choose the desired size:

Delivery Terms: DDU
Item will be shipped in 4-6 weeks
  Ask a Question
Company
UPCOM Telekomunikasyon
Turkey
SKU: N/A Category: Tags: , ,

Consumer sale



Warranty

12

Share this product with your friends:

Description

Upcom • Outdoor rack cabinet for wall installation • Single layer, IP66, 600×450

High quality outdoor rack cabinet, suitable for both network and server equipment.
Openable and lockable cabinet with full protection against dust and water ingress with IP66 structure. Highly corrosion resistant coating. Comes in 5 different sizes. This is a single layered cabinet.

General Features

  • Openable and lockable front cover.
  • Full protection against dust and water ingress with IP66 structure.
  • Openable top structure that provides external access to the fan module.
  • Cable entry slots are located at the bottom part.
  • Air inlet louvers with dust filter.
  • Air vent part with dust filtered fan.
  • Ventilation can be provided by cooling units with 1 or 2 fans.
  • Mounting profiles have U markings that facilitate the mounting process.
  • It can be mounted to the wall.
  • Highly effective zirconium + zinc coating against corrosion.
  • Painted by impact-resistant, high strength, electrostatic paint, Ral 7035 gray.
  • All test procedures have been carried out and has RoHS, CE, EN 61587-1 standards.

Upcom rack cabinet for outdoor wall installation, Detailed dimensions and view angles

Standards


TS EN IEC 61587-1: 2022 / ISO9001-2015 / ISO14001-2015 / ISO 45001-2018 / ISO 27001:2017 / RoHS / UL 2416

Specification

Weight N/A
Dimensions N/A
Brand

Upcom
Color

Number of cabinets

1 Pcs
Size

7U, 9U, 12U, 16U, 20U
Dimensions W*D

W:600 mm D:450 mm
Paint Type

Electrostatic powder paint
Materials

Sheet Steel, DIN EN 1030-99 / DC-01 6112 / DC-7122
Load Carrying Capacity

300kg / 661.38Ibs
IP rating

IP66

Consumer sale



Warranty

12

Standards


TS EN IEC 61587-1: 2022 / ISO9001-2015 / ISO14001-2015 / ISO 45001-2018 / ISO 27001:2017 / RoHS / UL 2416
