Autel MaxiBAS BT506 battery tester, automotive battery and electrical system analysis tool, Bluetooth
Autel MaxiBAS BT506 professional battery diagnostic tool with Adaptive Conductance for precise cold-cranking and reserve capacity tests
Professional battery & electrical system tester for 6-12V batteries, checks SOH, SOC, cold cranking, reserve capacity.
Autel MaxiBAS BT506 battery tester in durable ABS plastic housing with Bluetooth connectivity

AUTEL • Automobile battery and electrical system analysis tools MaxiBAS BT506

€299.00 Excl. VAT

MEMIDOS Payment Protection
Seller:  CANWAYTECH
<span class="sku_wrapper">China</span> China
Delivery terms: DDP
Item will be shipped in 3-5 business days
  Ask a Question
SKU: CW2026081912D Category:

Consumer sale



Warranty

12

Share this product with your friends:

Description

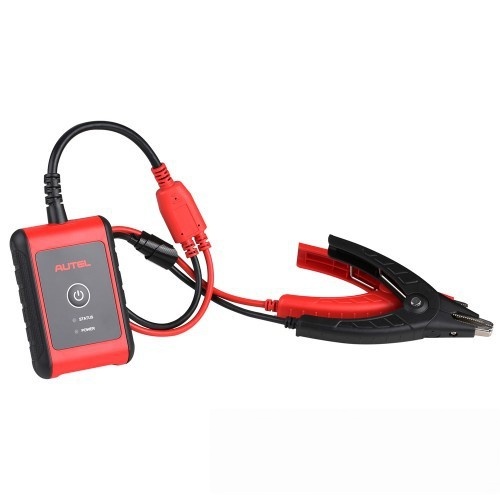

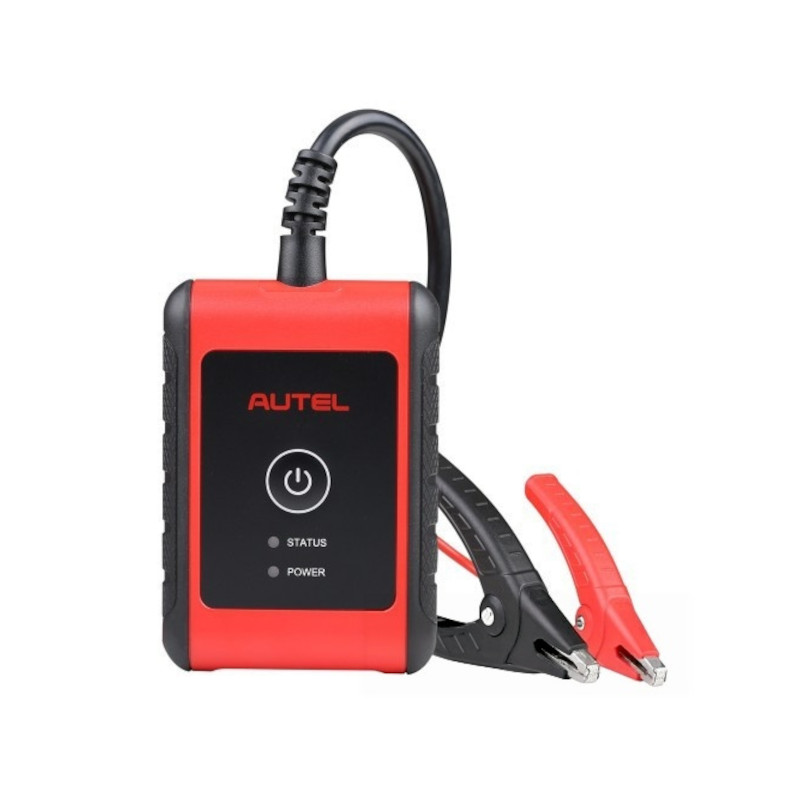

AUTEL • Automobile battery and electrical system analysis tools MaxiBAS BT506

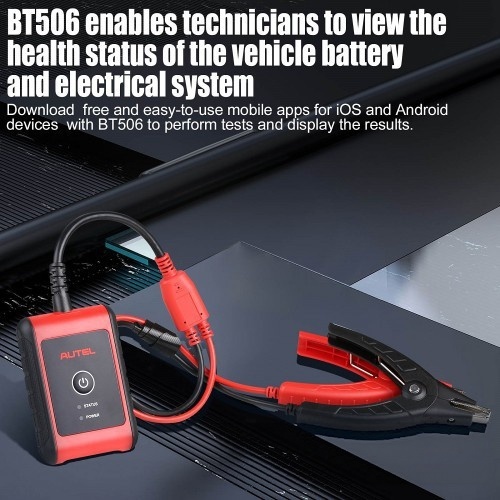

The AUTEL MaxiBAS BT506 is a professional-grade battery and electrical system analysis tool designed for technicians. It uses Autel’s Adaptive Conductance technology to deliver accurate measurements of cold cranking ability and reserve capacity. The BT506 allows both in-vehicle and out-of-vehicle testing of 6-volt and 12-volt batteries rated from 100 to 2000 CCA, and supports testing of flooded, AGM, AGM Spiral, EFB and GEL battery types. It connects via Bluetooth to compatible Autel MaxiSYS tablets or mobile app, and supports industry-recognized rating standards like CCA, SAE, EN, IEC, DIN, JIS and MCA.

Key benefits

  • Tests battery state of health (SOH), state of charge (SOC), cold cranking amps, and reserve capacity with high accuracy using Adaptive Conductance technology.
  • Supports a wide range of battery types (Flooded, AGM, Spiral AGM, EFB, Gel) and global rating standards (CCA, CA, SAE, EN, IEC, DIN, JIS, MCA).
  • Capability to perform starter (cranking) and charging (generator/alternator) system diagnostics while in-vehicle.

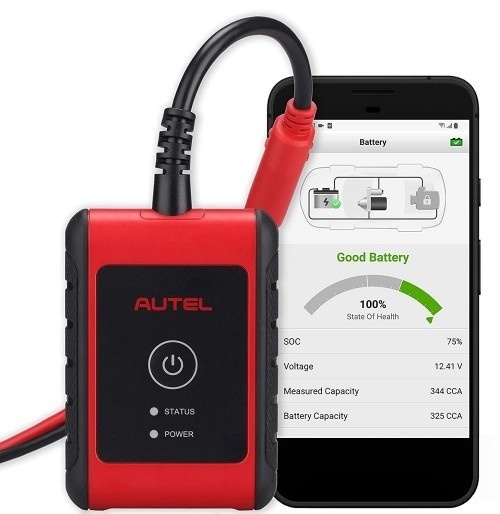

  • Compact design with low working current (<150 mA), USB-C and Bluetooth connectivity supports flexible workflow with tablets or smartphones.
  • Operates over a broad temperature range (−10 °C to 50 °C), with storage capability from −20 °C to 60 °C.

Supported protocols

  • CCA
  • CA
  • SAE
  • EN
  • IEC
  • DIN
  • JIS
  • MCA

Supported functions

Depending on vehicle compatibility the following functions are supported:

  • Battery state of health (SOH) and state of charge (SOC) tests
  • Cold cranking ability and reserve capacity evaluation
  • Starter/cranking test including starting voltage and time
  • Generator/alternator/charging system test under no-load and load conditions

Included items

  • 1 × Autel MaxiBAS BT506 main unit
  • 1 × battery cable with large clamps
  • 1 × temperature sensor
  • 1 × user manual

Standards



Specification

Shipping weight (kg) 0.5 kg
Shipping dimensions (mm) 25 × 20 × 6.5 mm
Brand

Color

Country of Origin

CN
Tariff number (HS code)

9030339000
Connectivity

USB 2.0, Type C Bluetooth V3.0 BR/ EDR+ V4.2 LE Dual-Mode
Input voltage

5 V DC
Working current

< 150 mA at 12 V DC
CCA range

100 to 2000 A
Voltage range

6 to 36 V
Working temperature

-10°C to 50°C
Storage temperature

-20°C to 60°C (-4° to 140° F)

Consumer sale



Warranty

12

Standards



Reviews

There are no reviews yet.
