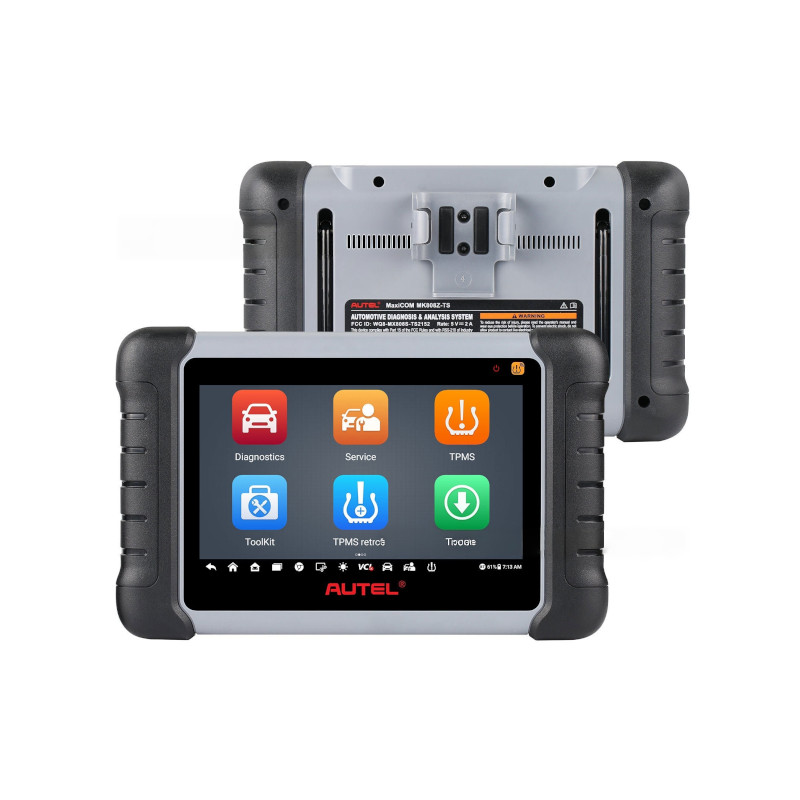

AUTEL MaxiCOM MK808Z-TS diagnostic scan tool, automotive tablet, TPMS, OBD2, full-system diagnostics
AUTEL MK808Z-TS high-end diagnostic tablet with rugged 7-inch screen, OE-level diagnostics, 4 GB RAM, TPMS & service tools.
Professional diagnostic tablet for full-system vehicle diagnostics and advanced TPMS & service reset functions.
Durable ABS housing diagnostic tablet with 7-inch touchscreen for automotive workshops

AUTEL • Diagnostic scan tool MaxiCOM MK808Z-TS

€779.00 Excl. VAT

MEMIDOS Payment Protection
Seller:  CANWAYTECH
<span class="sku_wrapper">China</span> China
Delivery terms: DDP
Item will be shipped in 3-5 business days
  Ask a Question
SKU: CW2026081902D Category:

Consumer sale



Warranty

12

Share this product with your friends:

Description

AUTEL • Diagnostic scan tool MaxiCOM MK808Z-TS

The AUTEL MaxiCOM MK808Z-TS is a complex professional-grade diagnostic tablet designed for full-system automotive diagnostics and advanced vehicle health management. Powered by a quad-core 1.8 GHz Cortex-A55 processor, it runs Android 11 and includes 4 GB RAM with 64 GB of onboard storage. The rugged 7-inch capacitive touchscreen delivers 1024 × 600 resolution, while a 5000 mAh battery supports long workshop sessions. It provides OE-level diagnostics for over 80 US, Asian, and European vehicle makes with comprehensive support for TPMS, ECU data, and active test capabilities. Built for technicians and repair shops seeking a feature-rich, multitasking diagnostic tool.

It delivers 26+ reset/service functions—such as oil service reset, EPB (electronic parking brake), SAS (steering angle sensor), DPF regeneration, injector coding, and battery registration/reset—and supports full TPMS servicing including sensor activation, programming of Autel MX-sensors, and four relearn methods. Bi-directional control and live data feedback help identify faulty components from ABS to wipers. Wirelessly updatable via Wi-Fi with one year of software support included.

Key benefits

  • OE-level diagnostics for electronic systems on 80+ makes of cars—codes, live data, ECU info, adaptations
  • Extensive service/reset functions including oil/sas/dpf injection/battery systems
  • Full TPMS coverage—activate known sensors, program universal sensors, view pressure/temp/location
  • Active test (bi-directional control) for actuators and modules to pinpoint faults
  • Large storage and modern hardware—Android 11, 1.8 GHz quad-core CPU, 4 GB RAM, 64 GB memory
  • Long battery life, rugged touch screen, wide temperature ranges for workshop environments
  • Automatic vehicle ID (AutoVIN), database-based relearn procedures, and cloud-based support

Supported protocols

  • ISO9141-2
  • ISO14230-2
  • ISO15765
  • K-/L-Line
  • SAE-J1850 VPW
  • SAE-J1850 PWM
  • ISO11898 (Highspeed, Middlespeed, Lowspeed, Singlewire CAN; fault-tolerant CAN)
  • SAE J2610
  • GM UART (UART Echo Byte protocol)
  • Honda Diag-H protocol
  • TP2.0, TP1.6

Supported functions

Depending on vehicle compatibility the following functions are supported:

  • Read and clear codes across all available ECUs
  • View live data in text, graph, or analog formats
  • Active (bidirectional) tests of actuators and modules
  • Comprehensive reset/service functions: oil, EPB, SAS, DPF, injector, battery, etc.
  • Full TPMS diagnostics and sensor programming
  • Automatic VIN detection and guided relearn procedures
  • Remote support, report generation, cloud data storage and retrieval

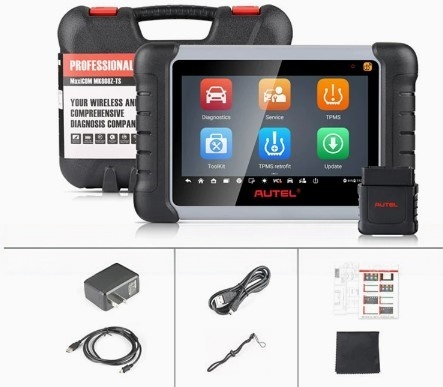

Included items

  • 1 × main unit (MaxiCOM MK808Z-TS)
  • 1 × VCI mini interface
  • 1 × power adapter
  • 1 × USB cable for testing
  • 1 × USB cable for charging
  • 1 × quick reference guide
  • 1 × user manual
  • 1 × carrying case

Standards



Specification

Shipping weight (kg) 2.44 kg
Shipping dimensions (mm) 370 × 290 × 110 mm
Brand

Color

Country of Origin

CN
Tariff number (HS code)

9031809090
Operating system

AndroidTM 4.4.2, KitKat
Processor

Cortex-A9 processor (1.5 GHz)
Memory

32GB
Display

7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity

Mini USB 2.0 / USB 2.0 / Wi-Fi / HDMI Type A Micro SD card (supports up to 32GB)
Sensors

Light sensor for brightness auto changing
Audio output

Buzzer
Power and battery

3.7 V/5000 mAh lithium-polymer battery / Charges via 5 VDC power supply
Battery charging input

5 V/1.5 A
Power Consumption

600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating temperature

0 to 55°C
