Carbide milling cutter 2 teeth 0,5-4mm (Shank diameter 4mm)
€10,88 – €15,39 Excl. VAT
Choose the desired model:
JK Nástroje • Carbide milling cutter 2 teeth 0,5-4mm (Shank diameter 4mm)
High-performance milling cutters made of fine-grained universal carbide with high-quality TiAlN-based coating. For material hardness up to 55 HRc.

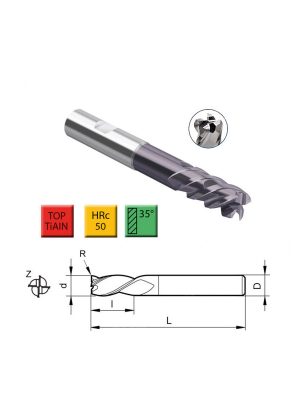

|SKU||MIB 0052||MSB 0102||MSB 0152||MSB 0202||MSB 0252||MSB 0302||MSB 0402|
|Tool diameter (d)||0.5 mm||1 mm||1.5 mm||2 mm||2,5 mm||3 mm||4 mm|
|Cutting length (l)||1 mm||2 mm||3 mm||4 mm||5 mm||6 mm||8 mm|
|corner radius (R)||0.25||0.5||0.75||1||1.25||1.5||2|
|Shank diameter (D)||4 mm||4 mm||4 mm||4 mm||4 mm||4 mm||4 mm|
|Total length (L)||50 mm||50 mm||50 mm||50 mm||50 mm||50 mm||50 mm|
|Number of teeth (Z)||2||2||2||2||2||2||2|
Applicable for complex shapes:
Milling cutters suitable for the production of complex shapes, for mould makers and for the aerospace industry. The cutting edge geometry also allows machining of alloy steels hardened up to 55 HRc, nickel steels and titanium alloys.
High-quality TiAlN-based coating, microhardness (HV 0.05) = 3300, maximum working temperature 900°C, low friction coefficient (dry against steel 0.25)
High durability compared to conventional TiAlN coating.
Suitable for high heat loads (dry machining, HSC)
Purple TiAlN coating is one of the most widely used coatings in modern high-performance machining. TiAlN coatings are resistant to oxidation and allow work to be performed approximately 20 – 35% faster than with TiN coating. The aluminium content of these coatings is approximately 50 percent. TiAlN coating is applicable for machining of abrasive materials such as cast iron and is suitable for dry machining due to its high heat resistance.
JK Nástroje – High-quality cutting tools made in Europe.
Up to 55 HRc
|Tool diameter / Cutting length||
Ø 0,5 / 1 mm, Ø 1 / 2 mm, Ø 1,5 / 3 mm, Ø 2 / 4 mm, Ø 2,5 / 5 mm, Ø 3 / 6 mm, Ø 4 / 8 mm
