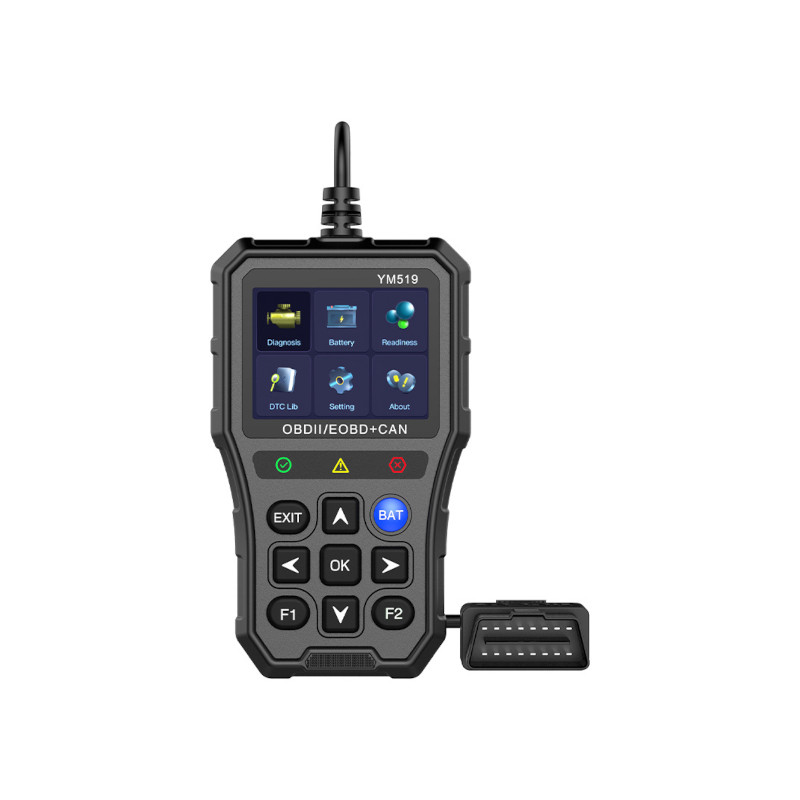

YuMing YM519 OBD2 car fault diagnostic scanner, reads engine fault codes, live data and battery voltage
YuMing • OBD2 Car Fault Diagnostic Tool YM519 - Image 2

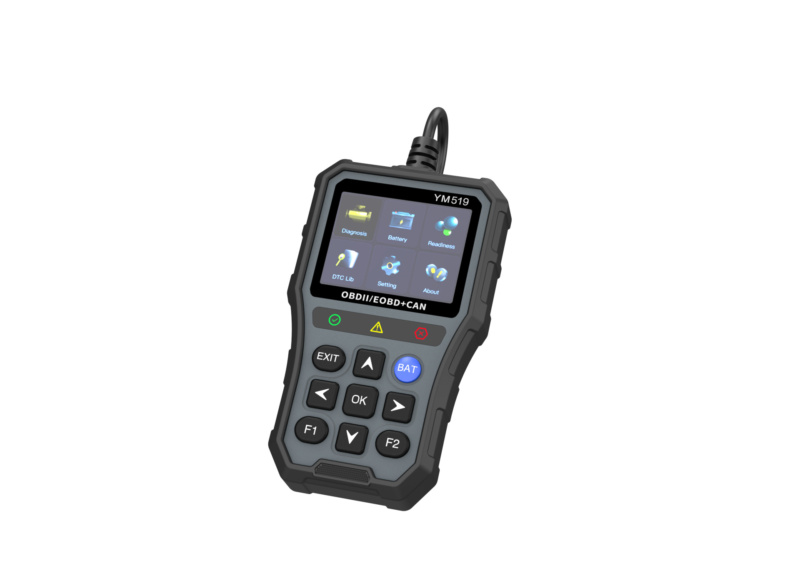

YuMing YM519 OBD2 car fault diagnostic tool to read and clear engine codes with live data and battery check
YuMing • OBD2 Car Fault Diagnostic Tool YM519 - Image 4

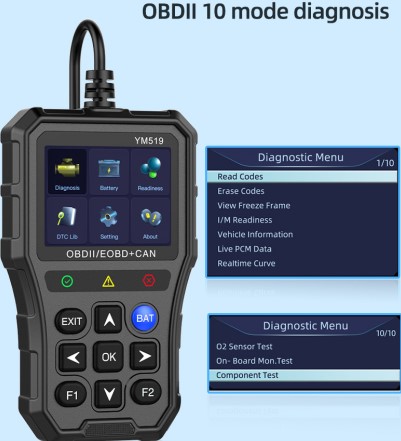

YuMing YM519 OBD2 diagnostic tool with durable TPU case and soft silicone buttons
YuMing • OBD2 Car Fault Diagnostic Tool YM519 - Image 6

YuMing • OBD2 Car Fault Diagnostic Tool YM519

€49.99 Excl. VAT

MEMIDOS Payment Protection

Seller:  CANWAYTECH
China
Delivery terms: DDP
Item will be shipped in 1-2 weeks
  Ask a Question
SKU: CM2026071002D Category:

Consumer sale



Warranty

12

Share this product with your friends:

Description

YuMing • OBD2 car fault diagnostic tool YM519

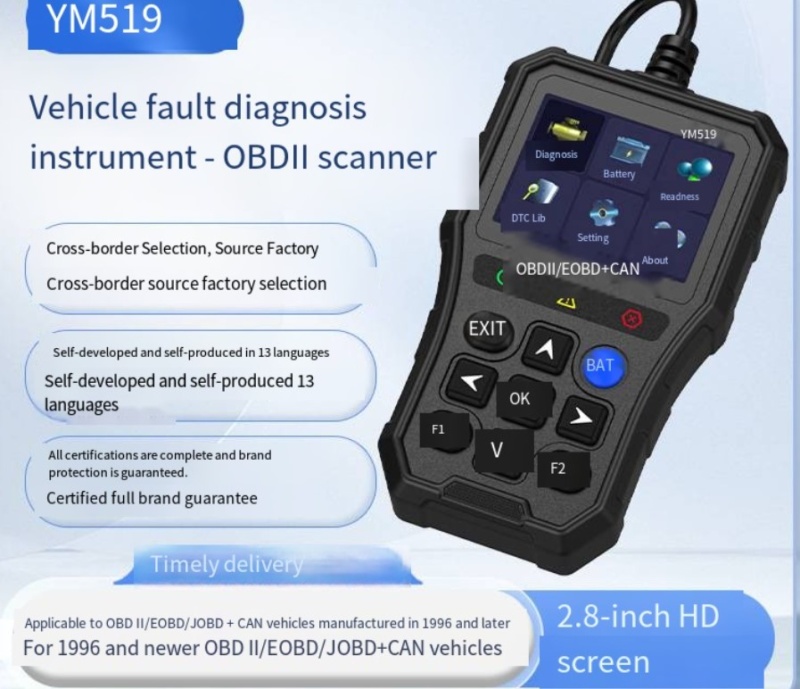

The YuMing YM519 is a professional handheld OBDII/EOBD automotive diagnostic scanner designed for technicians and advanced car owners. Featuring a 2.8-inch color LCD display, durable TPU protective case, and soft silicone buttons, the tool reads and clears engine fault codes, monitors real-time data, and assesses battery health. YM519 supports all major OBDII protocols and draws power directly from the vehicle’s 16-pin OBD port—no external battery required. The instrument is ideal for vehicles built since 1996 that comply with OBDII/EOBD standards. User-friendly interface with multiple language support and helpful real-time curves make diagnostics faster and simpler.

Key benefits

  • Reads, displays, and clears current, permanent, and pending engine fault codes; views freeze frame data for accurate diagnosis.
  • Battery voltage testing, continuous monitoring, and life evaluation to prevent surprises.
  • Emission readiness (I/M readiness) checks, vehicle information retrieval (VIN, CALID, CVN), and oxygen sensor tests.
  • Graphical real-time data stream for parameters like RPM, coolant-temp, fuel trim; supports Modes 6 & 8 for advanced component and on-board monitoring.
  • Built-in DTC library (>35,000 codes), 13 languages, protective case, non-slip buttons, and visual status indicators.

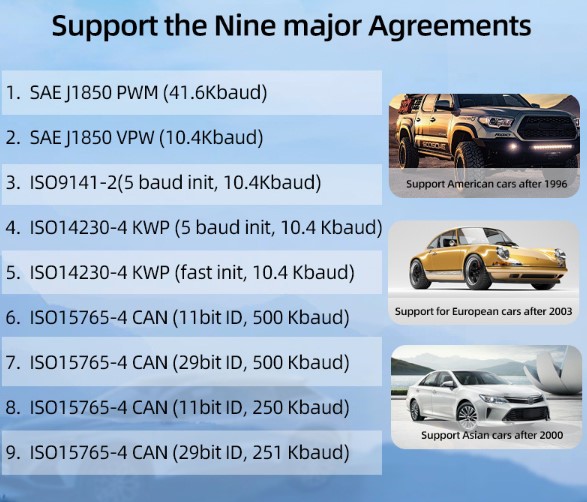

Supported protocols

  • SAE J1850 PWM (41.6 kbaud)
  • SAE J1850 VPW (10.4 kbaud)
  • ISO 9141-2
  • ISO 14230-4 KWP (5-baud init & fast init)
  • ISO 15765-4 CAN (11-bit & 29-bit IDs at 250/500 kbaud)

Supported functions

Depending on vehicle compatibility, the following functions are supported:

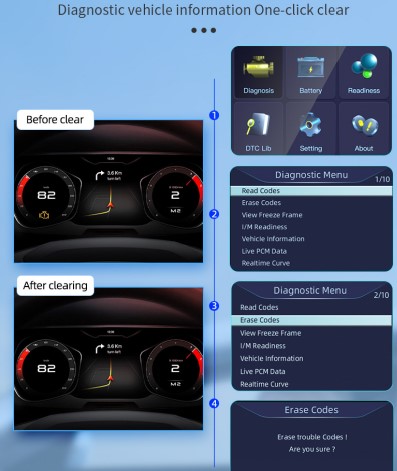

  • Reads, displays, and erases diagnostic trouble codes (DTCs)
  • Freeze-frame data capture
  • I/M readiness/emissions system status
  • Real-time data streaming and real-time curves
  • Battery voltage measurement, monitoring, and life assessment
  • Vehicle information (VIN, CALID, CVN)
  • Oxygen sensor test, component testing (Mode 6/8)

Included items

  • 1 × YuMing YM519 OBD2 scanner (model YM519)
  • 1 × user manual (English)

Standards



Specification

Shipping weight (kg) 0.225 kg
Shipping dimensions (mm) 270 × 150 × 60 mm
Brand

Color

Country of Origin

CN
Tariff number (HS code)

9031809090
Supply voltage

5-18V
Operating temperature

-20-65°C
Applicable vehicles

12V Gasoline vehicle

Consumer sale



Warranty

12

Standards
