OnRobot • Robot Screwdriver

6.905,00 Excl. VAT

OnRobot Screwdriver – Multifunctional robot screwdriver.

Item will be shipped in 1-3 business days
  Ask a Question
Company
Denmark
SKU: 103961-1 Category: Tags: , ,

Consumer sale



Warranty

12

Share this product with your friends:

Description

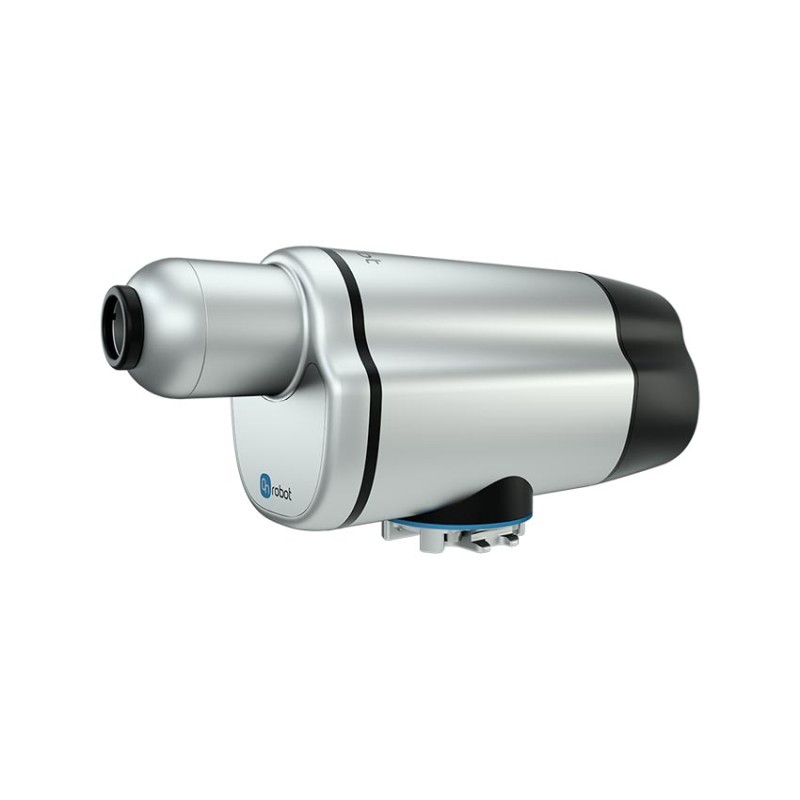

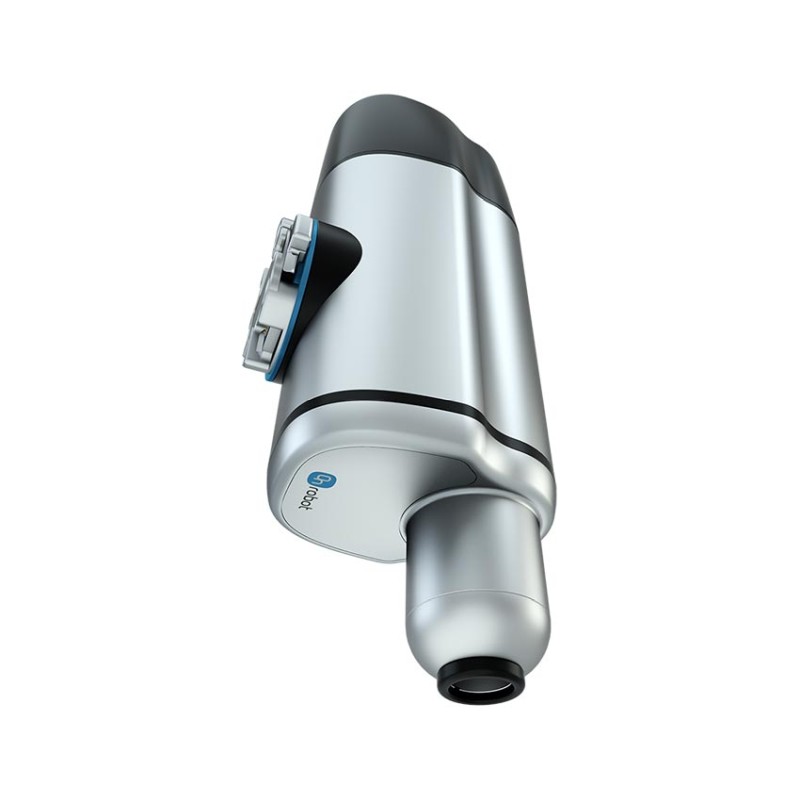

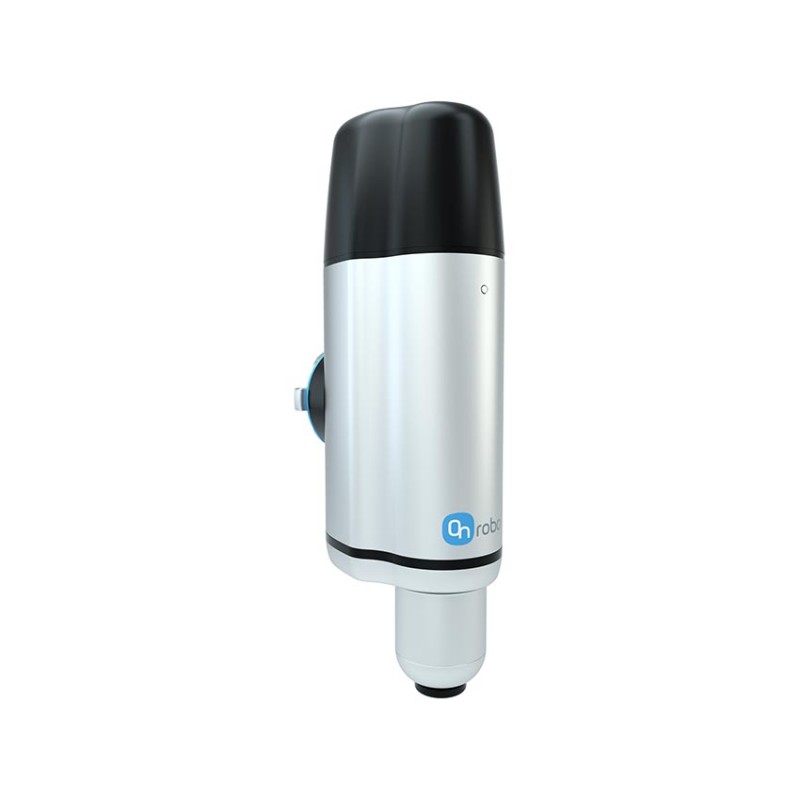

OnRobot • Screwdriver

You can easily automate assembly processes with the new intelligent OnRobot Screwdriver for light industrial and collaborative robots. Intelligent error detection and multiple screw size handling will ensure consistent results and reduce your cycle time dramatically.

OnRobot Screwdriver – Multifunctional robot screwdriver

  • Easy out-of-the-box setup, programming, and deployment on any leading robot
  • Highly versatile and flexible, with fast changeovers for a wide range of screw sizes and lengths
  • Precise torque control and intelligent error detection ensure quality and consistency
  • Embedded axis motion control simplifies programming, speeds setup, and improves quality

Learn OnRobot

Learn to integrate and successfully deploy
OnRobot solutions into your application.

The OnRobot Screwdriver advantages and features

Automated screwdriving to boost productivity and quality has never been easier, smarter, or more cost-effective. The OnRobot intelligent Screwdriver speeds setup and programming, with everything you need right out of the box. Simply mount the Screwdriver on any leading robot arm and install the appropriate bit, then enter screw length and torque directly into the robot’s user interface. Precise torque control and embedded axis eliminate the time and cost for additional integration and ensures consistent, accurate screw insertion. Changeovers to a different screw type or size take just minutes, reducing downtime and boosting ROI.

The OnRobot Screwdriver and available screw feeders handle a wide range of screw sizes from M1.6 to M6 and up to 50mm long. Precise torque control ranges from 0.15 Nm to 5 Nm. More versatile and intelligent than traditional tools, the OnRobot Screwdriver can detect if the screw is picked, is the correct length or been properly inserted during the tightening process.

The OnRobot Screwdriver includes protective functions that make it appropriate for collaborative applications for screws up to 35mm long, which are fully retracted into the Screwdriver while in motion. Safety stop is automatically activated if a screw is exposed to excessive force along its axis, with alert lighting to indicate the issue.

✓ FAST, EASY SETUP AND CHANGEOVERS
Complete screwdriving solution includes screw feeder and the easy One System setup for any leading robot brand.

✓ BUILT-IN PROTECTION FUNCTIONS
Screws up to 30mm long are withdrawn inside the screwdriver when moving. Safety stop automatically activates if a screw is exposed to excessive force.

✓ EMBEDDED AXIS
Screws are retracted inside the tool and driven automatically once the robot arm moves into position, which reduces robot arm movement and simplified programming.

✓ WIDE RANGE OF SCREW SIZES AND LENGHTS
Handles screw sizes from M1.6 to M6 up to 50mm long. Change-overs to a different screw type or size take just minutes, reducing downtime and boosting ROI.

✓ PRECISE TORQUE CONTROL
Torque control ranges from 0.15 Nm to 5 Nm for consistent and accurate screwdriving.

✓ ESD CERTIFIED
Suited for all assembly environments, including electronics.

Standards



Specification

Weight 2,5 kg
Dimensions 308 × 86 × 114 mm
Brand

OnRobot

Power supply

24 V

Current consumption

75 – 4500 mA

IP Classification

IP54

Torque range

0,15 – 5 Nm

Output speed

340 RPM

Screw length

Up to 50 mm (35 mm thread length)

Motor (x2)

Integrated, electric BLDC

ESD Safe

Yes

Operating temperature

5 – 50 °C

Consumer sale



Warranty

12

Standards
