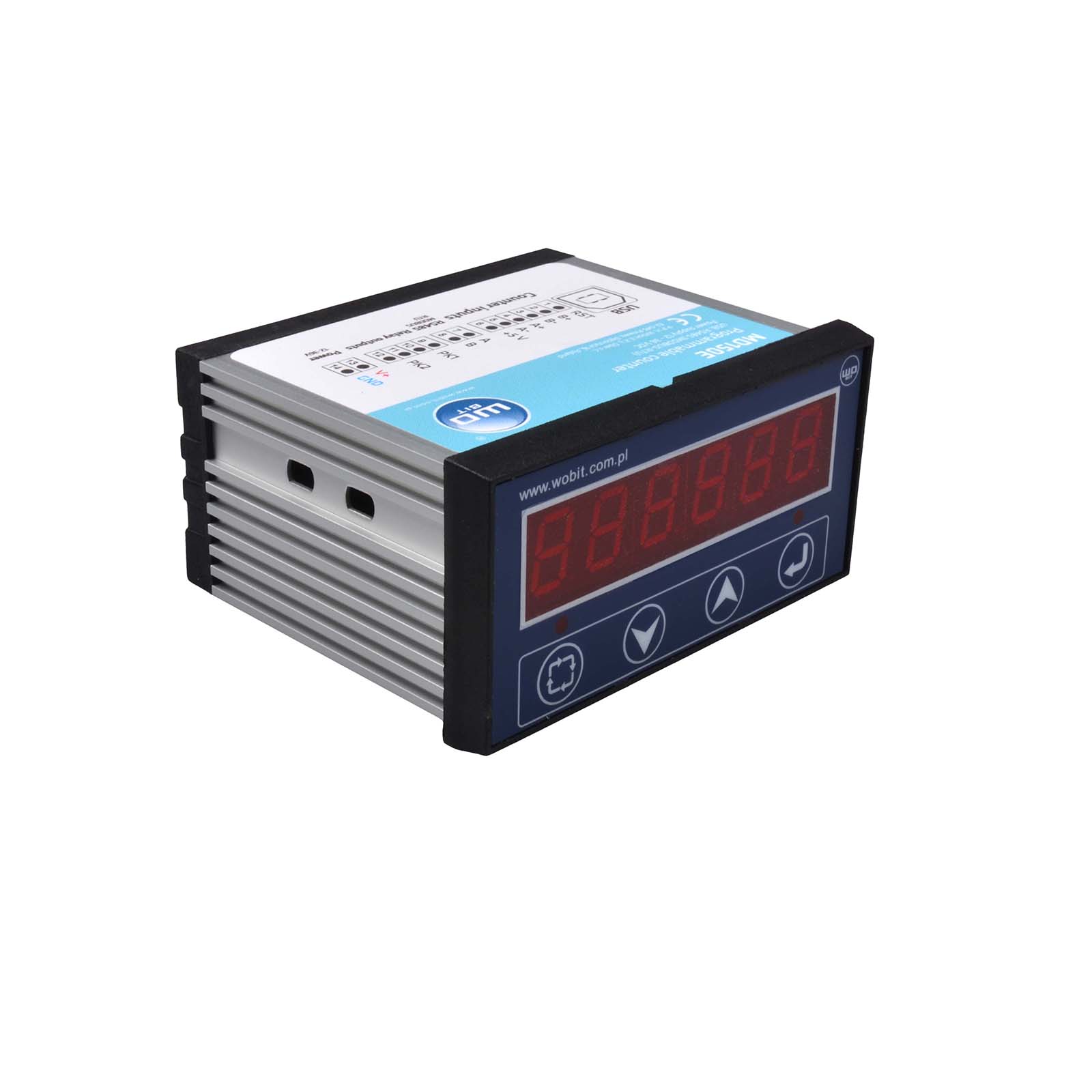

WObit MD150E Programmable pulse counter with speed measurement

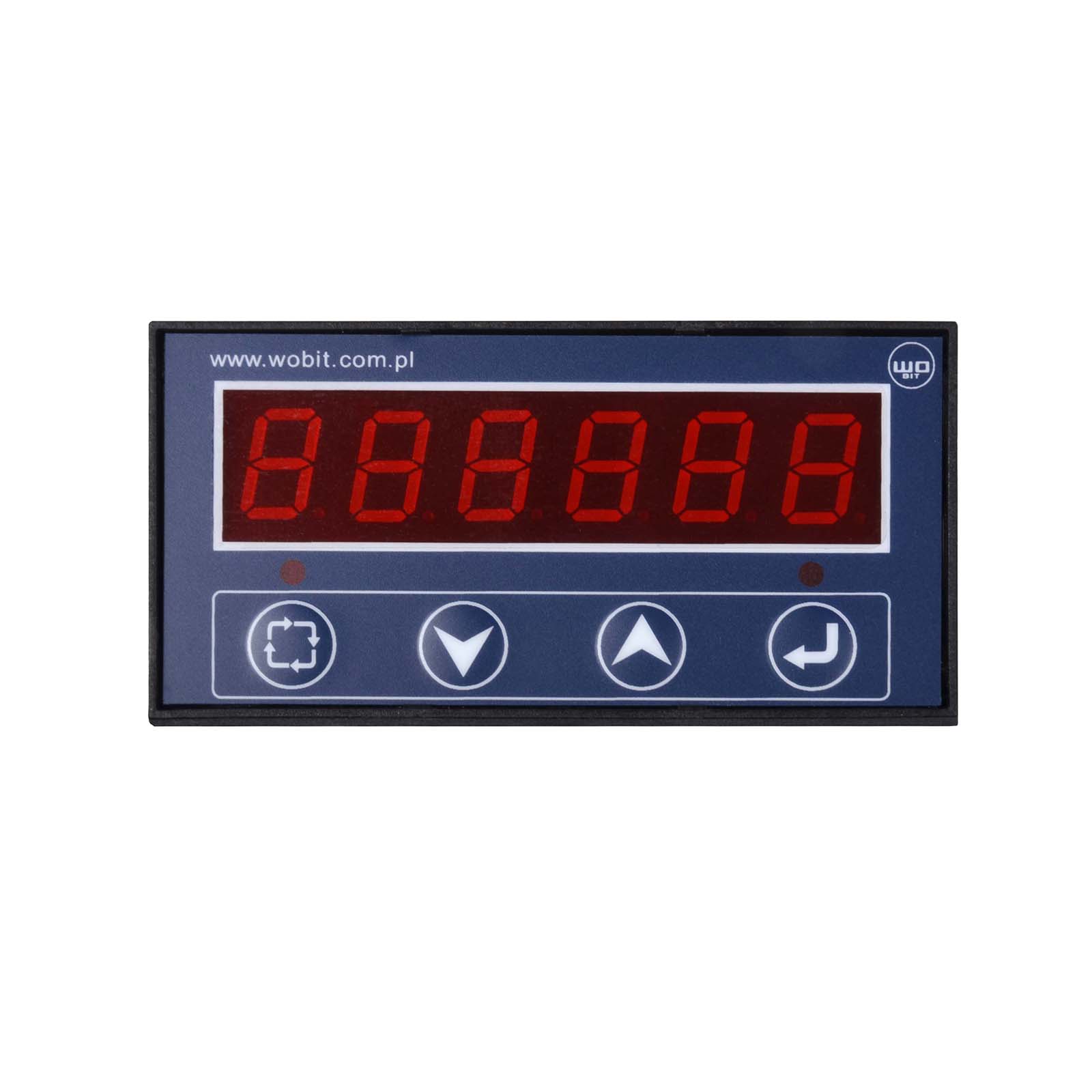

WObit MD150E encoder speed measurement

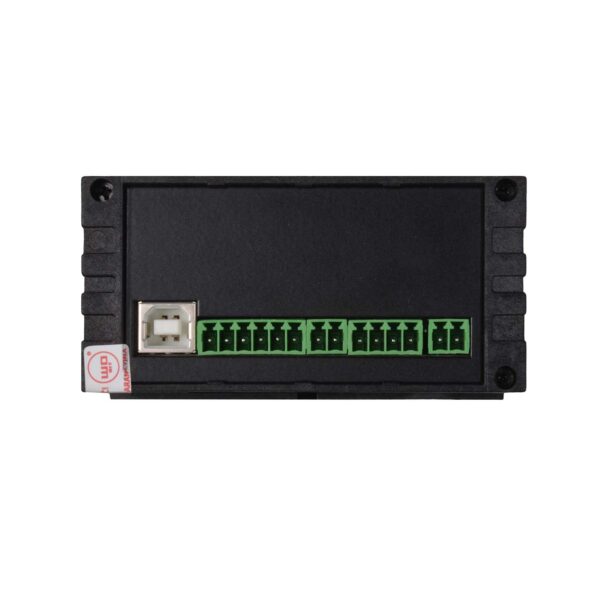

WObit MD150E input output overview

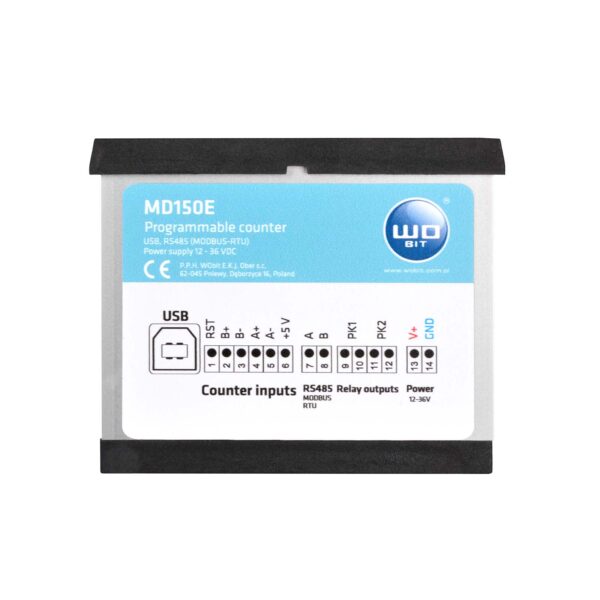

WObit MD150E terminals

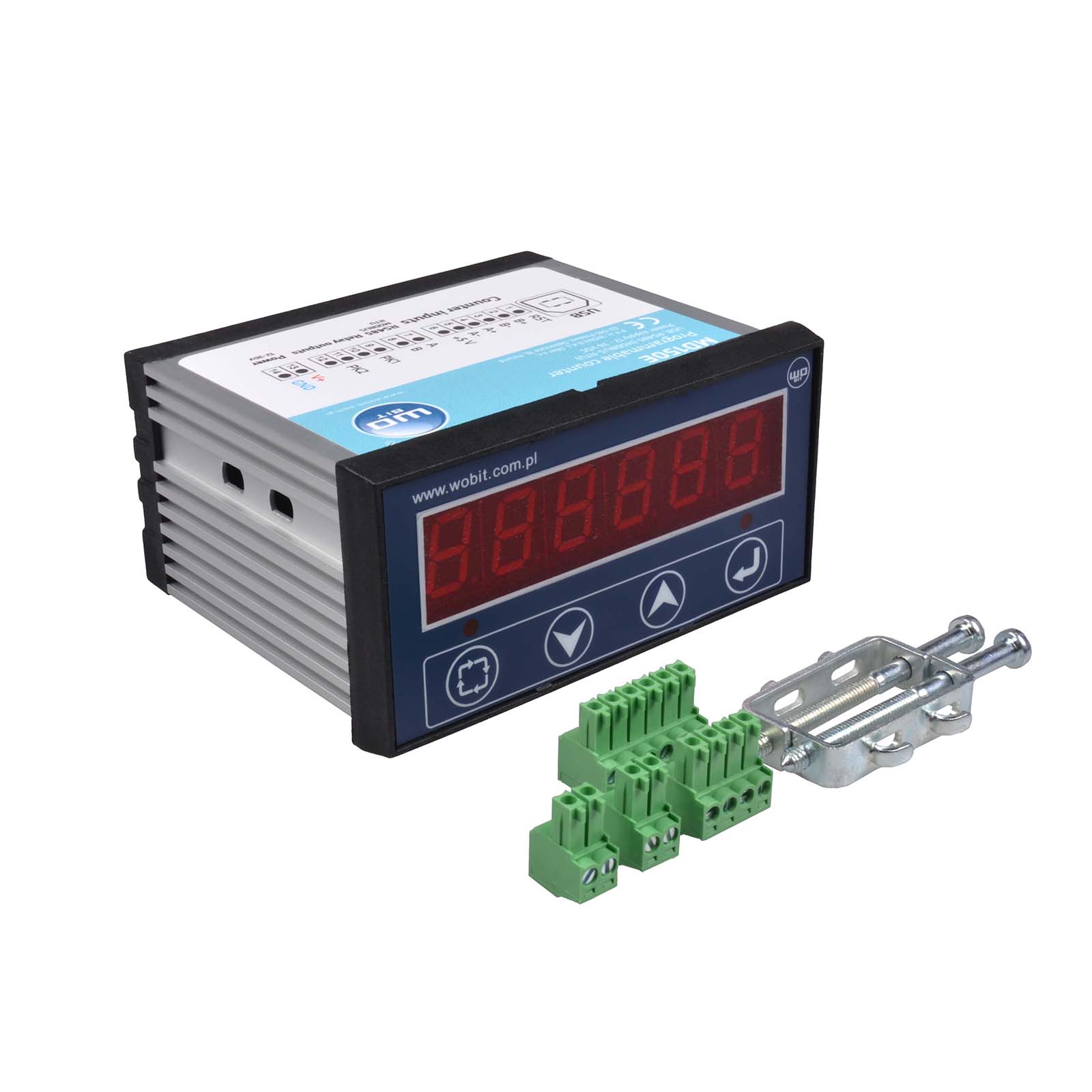

WObit MD150E encoder digital display complete

WObit • MD150E • Programmable counter with speed measurement

€93,92 Excl. VAT

Item will be shipped in 1-2 business days
  Ask a Question
Company
WObit E J Ober sc
Poland
SKU: MD150E Category: Tags: , , ,

Consumer sale



Warranty

12

Share this product with your friends:

Description

WObit • MD150E • Programmable counter with speed measurement

MD150E is a universal programmable counter designed to count pulses from incremental encoders or other pulse generating sources. MD150E can also specify the frequency of the counted signal and rescale the calculated value on the required unit (revolutions, mm, etc.). This allows the display value to be adapted to the application in use (e.g. measurement of speed or number of shaft revolutions, or distance travelled, etc.).

The MD150E also has 2 relay outputs and a resetting input. The MD150E counter has been equipped with a USB connector (and RS485 MODBUS).

Thanks to the free PC software, it is possible to quickly configure the indicator and register the measurements to a file.

Features:

  • Counting pulses with frequencies up to 2 MHz
  • Can operate with any 5-24 VDC signal source
  • Converting counted pulses to any units
  • Determining the frequency of counted pulses
  • Possibility to store counted pulses
  • Changes in relay output states based on set thresholds
  • Transfer of measurement data to a PC (USB) or master device via RS485 MODBUS-RTU
  • Robust, aluminum housing

Manual: WObit_MD150E

Standards



Specification

Weight 0,2 kg
Brand

WObit
Power supply

12 … 36V DC, recommended 24 VDC, min. 250mA + current consumption
Sensor power supply output

5V DC, max. 500mA
Counter inputs A/B

Differential, opt insulated
Low level: 0V (max. 2V), High level: +24V (5…24V)
Reset input RST

Low level: 0V (max. 2V), High level: +24V (5…24V)
Max. frequency for counter inputs A,B

2Mhz (off-line filtration)
125Khz (filtration activated)
Min. length of reset signal RST

1ms (off-line filtration)
10ms (filtration activated)
Relay outputs PK1, PK2

2 x 1A/125VAC, 2A/30VDC
Interfaces

RS485 MODBUS-RTU, default parameters 38400bps, 8:n:1,
USB: 1.1, 2.0
Operating temperature range

0…50°C
Display

6 digits, height 13.5 mm
Weight

200 g
Size

45 x 92 x 81 mm
IP class

IP40, IP65 for the front panel
